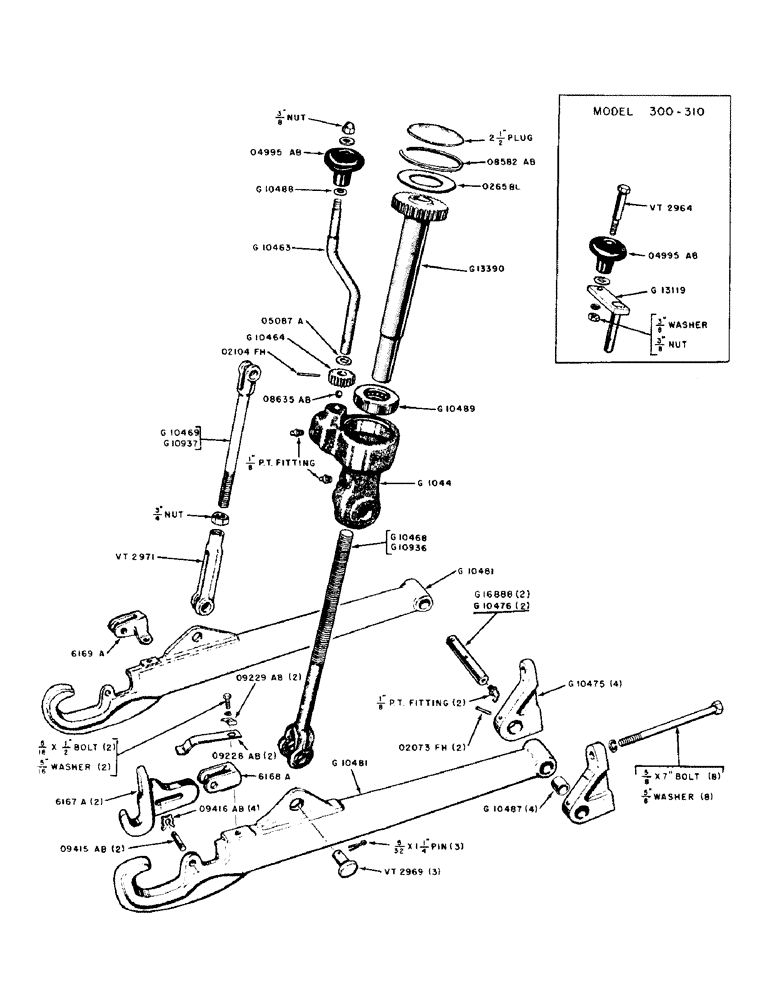

Запчасти Case IH 300-SERIES (160) - EAGLE HITCH DRAFT ARMS AND LIFT LINKS, 300-301-310-311 (09) - CHASSIS

G1044

HOUSING - adjusting screw

1шт.

1/8" STR. FITTING (Lincoln #5000)

1шт.

1/8" STR. SAFETY VENT FITTING (Lincoln #5099)

1шт.

2-1/2" Welch plug

1шт.

G10463

CRANK - adjusting screw (Gen. purpose) See G13119

1шт.

3/8" - 16 HEX. ACORN NUT, low crown

1шт.

G10464

GEAR - adjusting screw crank

1шт.

G10468

YOKE

LINK - lift, adjusting screw, RH (Gen. purpose) See G10936

1шт.

G10469

YOKE

LINK - lift, LH (Gen. purpose) See G10937

1шт.

3/4" HEX. JAM NUT, NF

1шт.

G10475

BRACKET

- draft arm mounting

4шт.

5/8" X 7" HEX. HD. BOLT, NC W/LOCKWASHER

8шт.

G10476

PIN

- pivot, draft arm (See G16888)

2шт.

Ref: G10476 Pin- pivot has hole for grease fittings.

1шт.

1/8" 67-1/2 degree fitting (Lincoln #5300)

2шт.

G10481

ARM - draft, includes 2 - G10487 bushings

2шт.

G10487

BUSHING

S - draft arm pivot

4шт.

G10488

WASHER - thrust, adjusting crank

1шт.

G10489

THRUST BEARING

BEARING - thrust (Schotz #1219)

1шт.

G10936

YOKE

LINK - lift, adjusting screw, RH (Utility) See G10468

1шт.

G10937

X

LINK - lift, LH (Utility) See G10469

1шт.

G13119

CRANK - adjusting screw (Utility) See G10463

1шт.

G13390

TUBE

GEAR - adjusting screw, w/tube

1шт.

G16888

PIN

- pivot, draft arm (For draft arm with grease fitting)

2шт.

A26240

LATCH

- Eagle Hitch (Replaces 6167A)

2шт.

A26241

LOCK

- Eagle Hitch latch, RH (Replaces 6168A)

1шт.

A26242

LOCK

- Eagle Hitch latch, LH (Replaces 6169A)

1шт.

A26381

WASHER

- thrust, crank gear (Replaces O5087A)

1шт.

A26845

KNOB

- hand spinner, adjusting crank (Replaces O4995AB)

1шт.

A27414

RING

SNAP RING - upper housing (Replaces O8582AB)

1шт.

211-7

BALL,1/4" Dia

- crank bearing (Replaces O8635AB) 1/4" Dia

1шт.

A27670

SPRING

- latch, Eagle Hitch (Replaces O9228AB)

2шт.

A27671

WASHER

RETAINER - latch spring (Replaces O9229AB)

2шт.

5/16" X 1/2" HEX. HD. BOLT, NC W/LOCKWASHER

2шт.

A27719

PIN,9.49mm OD x 42.86mm L

- latch, draft arm (Replaces O9415AB)

2шт.

A27720

SNAP RING

SNAP RING - retainer, latch pin (Replaces O9416AB)

4шт.

T25645

WASHER - adjusting screw gear (2-1/2" OD x 1-15/16" ID #14 ga.) (Replaces O265BL)

1шт.

138-143

LOCK PIN,1/4" x 2 1/4", Slotted

PIN, , Pivot pin (Replaces O2073FH) 1/4" x 2 1/4", Slotted

4шт.

138-75

LOCK PIN,5/32" x 7/8", Slotted

PIN, , Crank gear (Replaces O2104FH) 5/32" x 7/8", Slotted

1шт.

A29995

BOLT - spinner knob (Utility) (Replaces VT2964)

1шт.

3/8" HEX. NUT, NC and lockwasher

1шт.

A35113

PIN

- yoke, lift link (Replaces VT2969)

3шт.

5/32" X 1-1/4" COTTER PIN

3шт.

213-8

CLEVIS,3/4"-16

YOKE - lift link (Replaces VT2971)

1шт.
