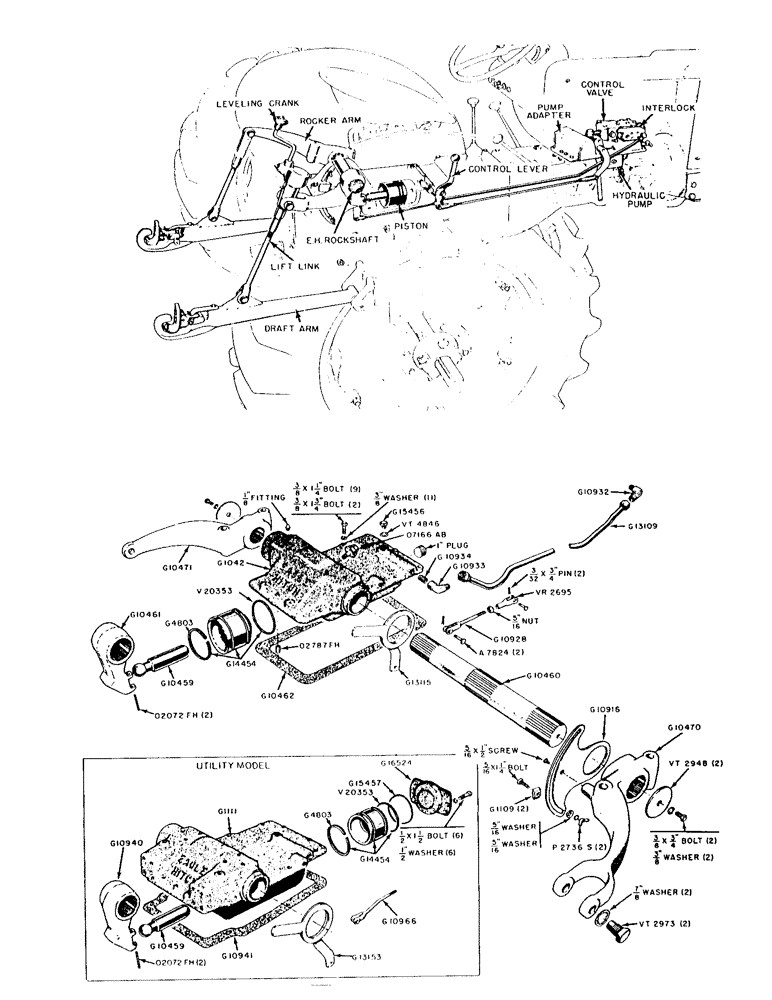

Запчасти Case IH 300-SERIES (158) - EAGLE HITCH ROCKSHAFT AND HOUSING (09) - CHASSIS

141-53

CLEVIS PIN,5/16" x .940"

plated (Replaces A7824) 5/16" x .940"

2шт.

3/32" X 3/4" COTTER PIN

2шт.

A36825

HOUSING

- rockshaft (General purpose) (Replaces G1042)

1шт.

3/8" X 1-1/4" HEX. HD. BOLT UNC W/LOCKWASHER

9шт.

3/8" X 1-3/4" HEX. HD. BOLT UNC W/LOCKWASHER

2шт.

1" P.T. PLUG, ctsk. head

1шт.

1/8" P.T. FITTING, straight (Lincoln #5000)

2шт.

A36438

PISTON

- (Use G14454) (Replaces G1043)

1шт.

G1109

STOP - quadrant lever

2шт.

G1111

HOUSING - rockshaft (Utility)

1шт.

G1111 Housing replaced by A35797 (1) A36829 (1)

1шт.

113-267 (2).

1шт.

3/8" X 1-1/4" HEX. HD. BOLT UNC W/LOCKWASHER

8шт.

3/8" X 1-3/4" HEX. HD. BOLT UNC W/LOCKWASHER

2шт.

3/8" X 4" HEX. HD. BOLT UNC W/LOCKWASHER

2шт.

1/8" P.T. FITTING, straight (Lincoln #5000)

2шт.

G1316

PISTON - (Use G14454)

1шт.

G1316 Piston - see above Piston

1шт.

G4803

RING

- piston, steel

1шт.

G30527

ROD

- connecting, rockshaft piston (Replaces G10459)

1шт.

G10460

ROCKSHAFT

- Eagle Hitch

1шт.

G10460 Rockshaft - replaced by A32300 A33575 (1) A38953 (1).

1шт.

3/8" X 3/4" HEX. HD. BOLT UNC W/LOCKWASHER

2шт.

G10461

ARM - rocker, rockshaft piston (Gen. purpose)

1шт.

G10462

GASKET

- rockshaft housing to transmission (Gen. purpose)

1шт.

G10470

ARM - lift, EH (Right hand)

1шт.

G10471

ARM - lift, EH (Left hand)

1шт.

Note: G10471- Arm (lh), G10966 Rod, G13115 Lever

1шт.

G17051

QUADRANT - control (Replaces G10916)

1шт.

5/16" - 18 X 1/2" FLAT HD. MACH. SCREW (Spin-lock)

1шт.

G10928

YOKE

ROD - control w/yoke (Gen. purpose)

1шт.

5/16" HEX. NUT UNF

1шт.

222-942

ELBOW,90 Degree, 3/4"-16, 45 Degree Fl x 1/8" NPT

- tube to interlock, 90 degree brass (3/8" male P.T. X 3/4" UNF) (Replaces G10932)

1шт.

222-959

ELBOW,90 Degree, 3/4"-16, 45 Degree Fl x 1/8" NPT, Fem

- tube to housing, 90 degree brass (3/8" female x 3/4" UNF) (Replaces G10933)

1шт.

221-1910

PIPE,Nipple, 3/8" NPT x 1", X-Strng

NIPPLE - pipe (3/8" P.T. close) (Replaces G10934)

1шт.

G10940

ARM - rocker, rockshaft piston (Utility)

1шт.

G10941

GASKET

- rockshaft housing to transmission (Utility)

1шт.

G10966

ROD - control w/yoke (Utility)

1шт.

5/16" HEX. JAM NUT UNF

1шт.

G13109

TUBE - interlock to EH housing w/union nuts 0.5" OD x 36.75" L

1шт.

G13115

LEVER - depth control (Gen. purpose)

1шт.

G13153

LEVER - depth control (Utility)

1шт.

G13153 Lever, G15456 Plug and G16524 Cap are no onger available. 17-June-96

1шт.

A36438

PISTON

KIT - (Includes G1316 piston, G4803 ring and V20353 "o" ring) (Replaces G14454)

1шт.

G15456

PLUG

- oil passage

1шт.

G15457

O-RING,0.139" Thk x 3.484" ID, -238, Cl 5, 75 Duro

"O" RING - cylinder cap (5-3/4" dia.) (Utility)

1шт.

G16524

CAP - rockshaft housing cylinder (Utility)

1шт.

1/2" X 1-1/2" HEX HD. BOLT NC WITH LOCKWASHER

6шт.

A27173

BREATHER

- rockshaft housing (Replaces O7166AB)

1шт.

138-142

LOCK PIN,1/4" x 2", Slotted

PIN, , Rocker arm (Replaces O2072FH) 1/4" x 2", Slotted

2шт.

138-200

LOCK PIN,1/2" x 1", Slotted

Pin, , dowel, housing to transmission (Replaces O2787FH) 1/2" x 1", Slotted

1шт.

S5933

O-RING,0.21" Thk x 3.25" ID, -340, Cl 5, 75 Duro

"O" RING - rockshaft piston (Replaces V20353)

1шт.

H44198

YOKE

- control rod (Replaces VR2695)

1шт.

A29186

WASHER

- retaining, lift arm (Replaces VT2948)

2шт.

A27658

STUD

SCREW - pivot, lift arm trunnion (Replaces VT2973)

2шт.

7/8" LOCKWASHER (Shakeproof I.T.)

2шт.

A30582

GASKET

- oil passage plug (Replaces VT4846)

1шт.

129-419

WING NUT,5/16"-18

NUT - wing (5/16" - 18 NC) (Replaces P2736S)

2шт.

5/16" X 1-1/4" CARR. BOLT W/LOCKWASHER AND PLAIN WASHER

2шт.
