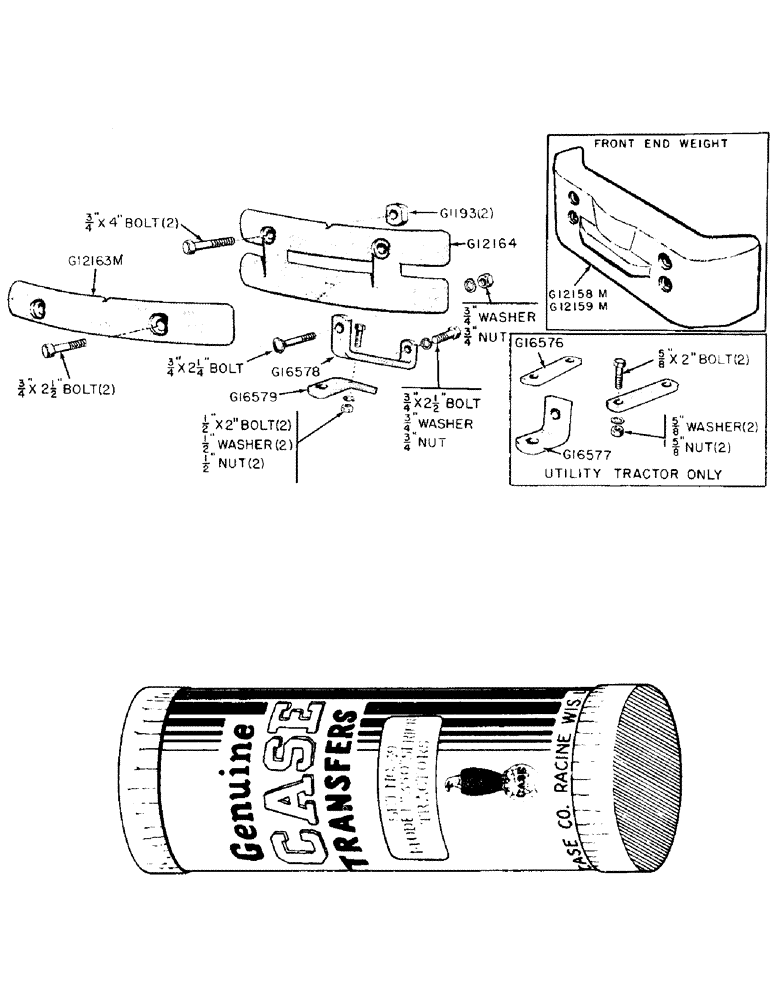

Запчасти Case IH 300-SERIES (149) - FRONT BUMPERS AND WEIGHTS, TRANSFERS (09) - CHASSIS

A20338

WEIGHT (Use G12158M or G12159M)

1шт.

G1183

WEIGHT (Use G12158M or G12159M)

1шт.

G1192

BUMPER - (Use G12163M)

1шт.

G1193

SPACER - double bar bumper (Gen. purpose tractors w/adjustable front axle)

2шт.

G1194

BUMPER - (Use G12164M)

1шт.

G12158M

WEIGHT - front end, (Includes 2-3/4" x 4" NC hex. hd. bolt w/lockwasher)

2шт.

G12159M

WEIGHT - front end, extra set (Includes 2-5/8" x 7" carr. bolt w/hex. nut and lockwasher)

1шт.

G12163M

BUMPER - single bar (All tractors without front drawbar) (Mchy. item

1.шт.

3/4" X 2-1/2" NC HEX. HD. BOLT

2шт.

G12164M

BUMPER - double bar (Utility tractor w/front drawbar) (Mchy. item)

1шт.

5/8" X 2-1/2" NC HEX. HD. BOLT

2шт.

G16576

BRACE - double bar front bumper (Utility tractor)

2шт.

5/8" X 2" NF HEX. HD. BOLT W/HEX. NUT AND LOCKWASHER

2шт.

G16577

DRAWBAR - front (Utility tractor)

1шт.

3/4" X 2-1/4" NC HEX. HD. BOLT W/HEX. NUT AND LOCKWASHER

1шт.

G16578

BRACE - double front bumper (General purpose tractor)

1шт.

3/4" X 2-1/4" CARR. BOLT W/HEX. NUT AND LOCKWASHER

1шт.

3/4" X 2-1/2" NC HEX. HD. BOLT W/HEX. NUT AND LOCKWASHER

1шт.

G16579

DRAWBAR - front (General purpose tractor)

1шт.

1/2" X 2" NF HEX. HD. BOLT W/HEX NUT AND LOCKWASHER, transfers

2шт.

B17015

KIT

Set of no. 49 transfers for model 300 series tractors, kit subs to individual decals

1шт.
