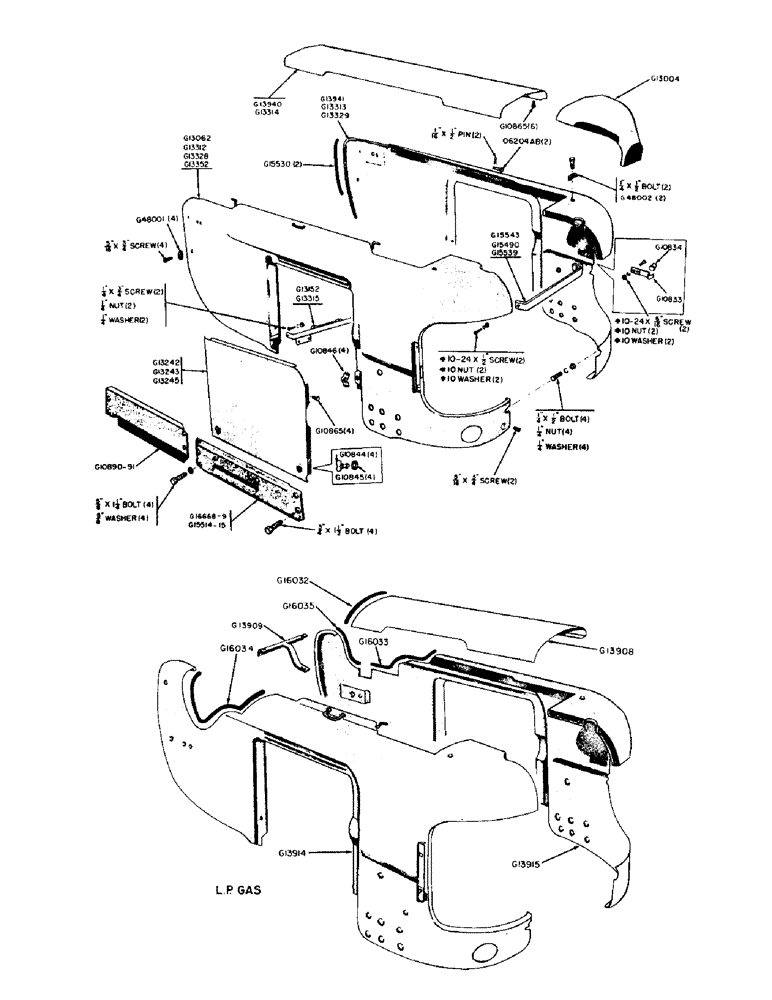

Запчасти Case IH 300-SERIES (086) - HOOD AND SIDE PANELS (09) - CHASSIS

G10833

LATCH - spring, grille door

1шт.

PLATE - pressure, complete assembly (Includes PN G4501, PN G45037, PN G46058, PN G46059, PN G46060, PN G46061, PN G49004, PN G49005, PN V20215)

2шт.

G10834

BUTTON - plunger, grille door latch

1шт.

G10844

STUD - fastener, wing head, side panel door

4шт.

G10845

WASHER - retainer, fastener stud

4шт.

G10846

RECEPTACLE - door fastener stud

4шт.

G10865

CUSHION - rubber button (6 hood door and 4 side door)

10шт.

G10890

RAIL - side, R.H. (310)

1шт.

G10891

RAIL - side, L.H. (310)

1шт.

G13004

CAP - grille

1шт.

G13062

PANEL - hood, R.H. side (310, 311) (See G13914)

1шт.

1/4" X 3/4" RD. HD. MACH. SCREW W/HEX. NUT AND LOCKWASHER

1шт.

5/16" X 3/4" TRUSS HD. MACH. SCREW (Philips type)

3шт.

G13152

SUPPORT - side panel, with solenoid mounting bracket (310, 311 spark ignition engine)

1шт.

G13242

DOOR - side panel, R.H., w/fasteners and cushions

1шт.

G13243

DOOR - side panel, L.H., w/fasteners and cushions (For underneath muffler)

1шт.

G13245

DOOR - side panel, L.H., w/fasteners and cusions (For overhead muffler)

1шт.

G13312

PANEL - hood, R.H. side (301 diesel - gen. purpose)

1шт.

G13313

PANEL - hood, L.H. side (301 diesel - gen. purpose)

1шт.

G13314

DOOR - top, hood (300, 301 diesel)

1шт.

G13315

SUPPORT - side panel (300, 301 diesel)

1шт.

G13328

PANEL - hood, R.H. side (300 diesel - utility w/upright muffler diesel)

1шт.

G13329

PANEL - hood, L.H. side (300 diesel - utility)

1шт.

G13352

PANEL - hood, R.H. side (300 diesel - utility w/underneath muffler diesel)

1шт.

G13908

DOOR - top door (LP gas engine)

1шт.

G13909

SUPPORT - top door (L.P. gas engine)

1шт.

G13914

PANEL - hood, R.H. side (LP gas engine)

1шт.

G13915

PANEL - hood, L.H. side (LP gas engine)

1шт.

G13940

DOOR - top, hood (310, 311) (See G13908)

1шт.

G13941

PANEL - hood L.H. side (310,311) (See G13915)

1шт.

1/4" X 1/2" HEX. HD. BOLT, NC w/hex. nut and lockwasher

4шт.

1/4" X 3/4" RD. HD. MACH. SCREW W/HEX. NUT AND LOCKWASHER

1шт.

5/16" X 3/4" TRUSS HD. MACH. SCREW (Philips type)

3шт.

G15490

BAR - spacer, front, side panel (Spark ignition engine)

1шт.

#10-24 X 1/2" RD. HD. MACH. SCREW W/HEX. NUT AND LOCKWASHER

2шт.

G15514

RAIL - implement mounting, R.H. (301 diesel)

1шт.

G15515

RAIL - implement mounting, L.H. (301 diesel)

1шт.

G15530

MOLDING - rubber, side panel (300, 301 diesel)

2шт.

G15539

BAR - spacer, front, side panel (w/radiator shutter)

1шт.

#10-24 X 3/4" RD. HD. MACH. SCREW W/HEX. NUT AND LOCKWASHER

2шт.

G15543

BAR - spacer, front, side panel (Diesel engine)

1шт.

#10-24 X 1/2" RD. HD. MACH. SCREW W/HEX. NUT AND LOCKWASHER

2шт.

G16032

MOULDING - rubber, top hood door (LP gas engine) (14-3/4" long)

1шт.

G16033

MOLDING - rubber, L.H. side panel front (LP gas engine) (20" long)

1шт.

G16034

MOLDING - rubber, R.H. side panel (LP gas engine) (30-1/8" long)

1шт.

G16035

MOLDING - rubber, L.R. side panel rear (L.P. gas engine)

1шт.

G16668

RAIL - implement mounting

1шт.

5/8" X 1-1/4" HEX. HD. BOLT, NC w/lockwasher

2шт.

3/4" X 1-1/2" HEX. HD. BOLT, NC w/lockwasher

2шт.

G16669

RAIL - implement mounting, LH (311 gas)

1шт.

5/8" X 1-1/4" HEX. HD. BOLT, NC w/lockwasher

2шт.

3/4" X 1-1/2" HEX. HD. BOLT, NC w/lockwasher

2шт.

G48001

X

NUT - side panels (5-16" cage nut)

1шт.

G48002

X

NUT - grille cap to side panels (1/4" cage nut)

2шт.

O6204AB

X

PIN - hood to side panel

2шт.

1/16" X 1/2" COTTER PIN

2шт.
