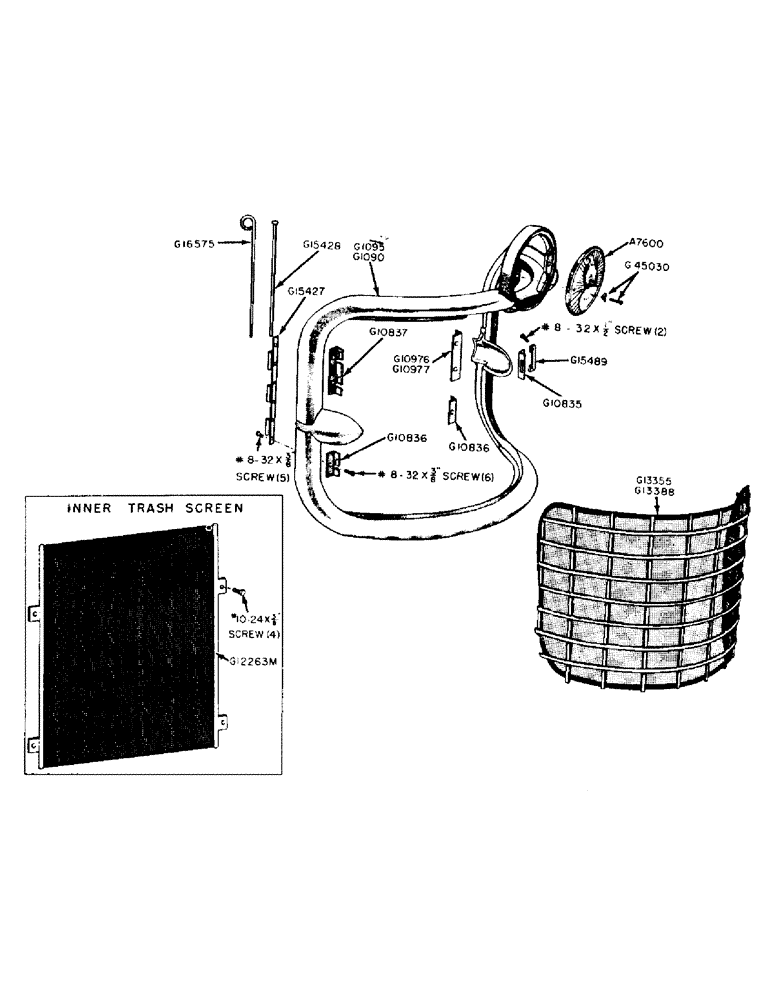

Запчасти Case IH 300-SERIES (085) - RADIATOR GRILLE AND TRASH SCREEN (09) - CHASSIS

A7600

EMBLEM CASE/IH

MEDALLION - grille cap

1шт.

G1090

FRAME - grille door (310, 311 gas)

1шт.

G1095

FRAME - grille door (300, 301 diesel)

1шт.

G10835

STRIKE - latch, grille door

1шт.

#8-32 X 1/2" FLAT HD. SCREW, self-cutting Philips type #23 Shakeproof

2шт.

G10836

CLIP - lower, trash screen

2шт.

#8-32 X 3/8" FLAT HD. SCREW, self-cutting Philips type #23 Shakeproof

2шт.

G10837

CLIP - upper, trash screen

1шт.

#8-32 X 3/8" FLAT HD. SCREW, self-cutting Philips type #23 Shakeproof

2шт.

G10976

CLIP - upper, RH, trash screen (300, 301 diesel)

1шт.

#8-32 X 3/8" FLAT HD. SCREW, self-cutting Philips type #23 Shakeproof

2шт.

G10977

CLIP - upper, LH, trash screen (310, 311 gas)

1шт.

#8-32 X 3/8" FLAT HD. SCREW, self-cutting Philips type #23 Shakeproof

2шт.

G12263M

SCREEN - inner trash, includes screen w/4-#10-24 x 3/8" indented hd. self-tapping screws (For tractors with front mounted equipment (Mchy. item)

1шт.

G13355

GRILLE - radiator, includes trash screen (Diesel engines)

1шт.

G13388

GRILLE - radiator, includes trash screen (Spark ignition engines)

1шт.

G15427

HINGE - half, grille door

1шт.

#8-32 X 3/8" FLAT HD. SCREW, self-cutting Philips type #23 Shakeproof

5шт.

G15428

PIN - hinge, grille door. See G16575

1шт.

G15489

SPACER - latch strike, grille door

1шт.

G16575

PIN - hinge, grille door (For quick removal of door)

1шт.

G45030

PINS AND CLIPS - for medallion (Set of 2)

1шт.
