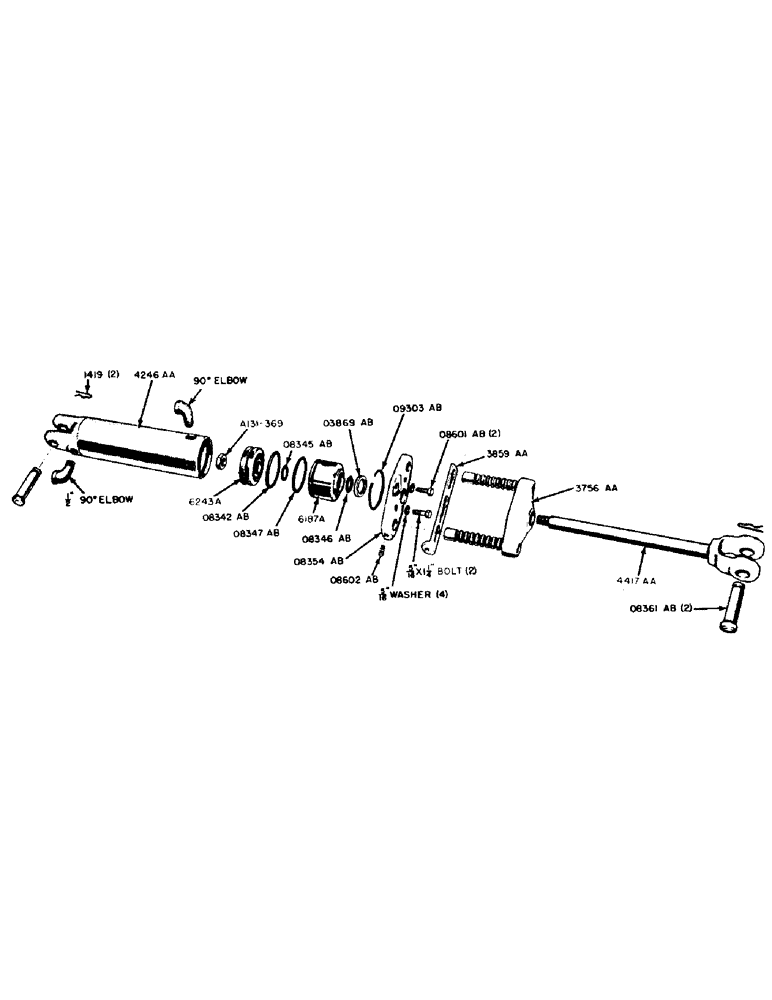

Запчасти Case IH 300-SERIES (170) - PARTS FOR B3785AA PORTABLE CYLINDER, 3-1/4" X 8" (08) - HYDRAULICS

A131-369

NUT - (7/8" N.F. Gripco) piston rod

1шт.

6044A

HEAD (Use 4246AA)

1шт.

6187A

HEAD - inner

1шт.

Part of complete cylinder P/N B3785AA

1шт.

6243A

PISTON

1шт.

Part of complete cylinder P/N B3785AA

1шт.

O3869AB

X

OIL SEAL - piston rod

1шт.

Part of complete cylinder P/N B3785AA

1шт.

O8342AB

X

"O" RING - piston

1шт.

O8345AB

X

GASKET - piston rod

1шт.

Part of complete cylinder P/N B3785AA

1шт.

O8346AB

X

"O" RING - piston rod

1шт.

Part of complete cylinder P/N B3785AA

1шт.

O8347AB

X

"O" RING - hydraulic cylinder

1шт.

Part of complete cylinder P/N B3785AA

1шт.

O8354AB

GUIDE - limit stop pin

1шт.

Part of complete cylinder P/N B3785AA

1шт.

5/16" X 1-1/4" HEX. HD. BOLT, NC w/lockwasher

2шт.

O8361AB

X

PIN - hydraulic cylinder yoke end

2шт.

O8601AB

X

SCREW - stop latch

2шт.

Part of complete cylinder P/N B3785AA

1шт.

5/16" LOCKWASHER (Shakeproof #1218-4)

2шт.

O8602AB

X

SPRING - limit stop latch

1шт.

Part of complete cylinder P/N B3785AA

1шт.

O9303AB

X

RING - snap, cylinder head

1шт.

Part of complete cylinder P/N B3785AA

1шт.

VC1419

X

COTTER - hair pin, for O8361AB yoke pin

2шт.

3756AA

STOP AND PIN - hydraulic cylinder limit

1шт.

Part of complete cylinder P/N B3785AA

1шт.

B3785AA

CYLINDER COMPLETE, Includes: Ref. P/N 6187A, 6243A, 03869AB, 08345AB, 08346AB, 08347AB, 08354AB 08601AB, 08602AB, 09303AB, 3756AA, 3859AA, 4246AA, 4417AA

1шт.

3859AA

X

LATCH - limit stop

1шт.

Part of complete cylinder P/N B3785AA

1шт.

4246AA

CYLINDER AND HEAD

1шт.

Part of complete cylinder P/N B3785AA

1шт.

1/2" 90 DEGREE STREET ELBOW

2шт.

4417AA

ROD - piston, w/yoke

1шт.

Part of complete cylinder P/N B3785AA

1шт.
