Запчасти Case IH 300-SERIES (168) - HYDRAULIC FRONT HOSE AND COUPLINGS, PORTABLE HYDRAULIC CYLINDER AND HOSE (08) - HYDRAULICS

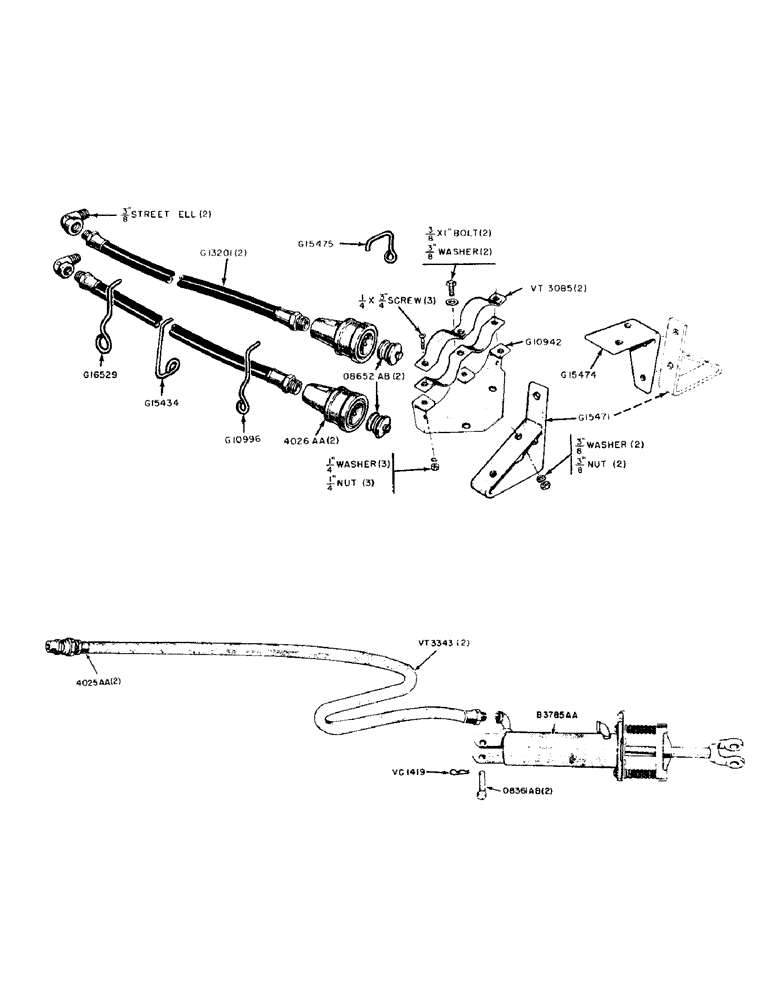

Схема запчастей Case IH 300-SERIES - (168) - HYDRAULIC FRONT HOSE AND COUPLINGS, PORTABLE HYDRAULIC CYLINDER AND HOSE (08) - HYDRAULICS

Артикул

Название

Примечание

Количество

G10942

HOLDER - hose clamp

1шт.

3/8" X 1" HEX. HD. BOLT NF W/HEX. NUT AND LOCKWASHER

2шт.

G10996

SUPPORT - hose to brake housing

1шт.

G13201

HOSE - front hydraulic (3/8" I.D. x 55-1/4" long)

2шт.

3/8" P.T. 90 DEGREE STREET ELL

2шт.

G15434

SUPPORT - hose to transmission stud

1шт.

G15471

BRACKET - clamp holder

1шт.

3/8" X 3/4" HEX. HD. BOLT NC W/LOCKWASHER

2шт.

3/8" HEX. NUT NC (Used only when hoses are on R.H. side)

2шт.

G15474

BRACKET - adaptor, clamp holder (When hoses are on R.H. side)

1шт.

G15475

SUPPORT - hose to front brake stud (When hoses are on R.H. side)

1шт.

5/8" X 3/4" HEX. HD. BOLT W/LOCKWASHER

1шт.

G16529

SUPPORT - hose to torque tube

1шт.

O8652AB

X

PLUG - dust

2шт.

VT3085

CLAMP - hose, rear

2шт.

1/4" X 3/4" RD. HD. MACH. SCREW NC W/HEX. NUT AND LOCKWASHER

3шт.

4026AA

X

SOCKET - breakaway

2шт.

O8361AB

X

PIN - coupling, portable cylinder, hose

2шт.

VC1419

X

PIN - cotter, hairpin, portable hydraulic cylinder and hose

2шт.

VT3343

HOSE - hydraulic, rear (3/8" I.D. x 110" long), portable cylinder

2шт.

B3785AA

CYLINDER - portable hydraulic (3-1/4" x 8"), and hose

1шт.

4025AA

X

PLUG - break-away coupling, portable hydraulic cylinder and hose

2шт.

Выбрано товаров: 22
