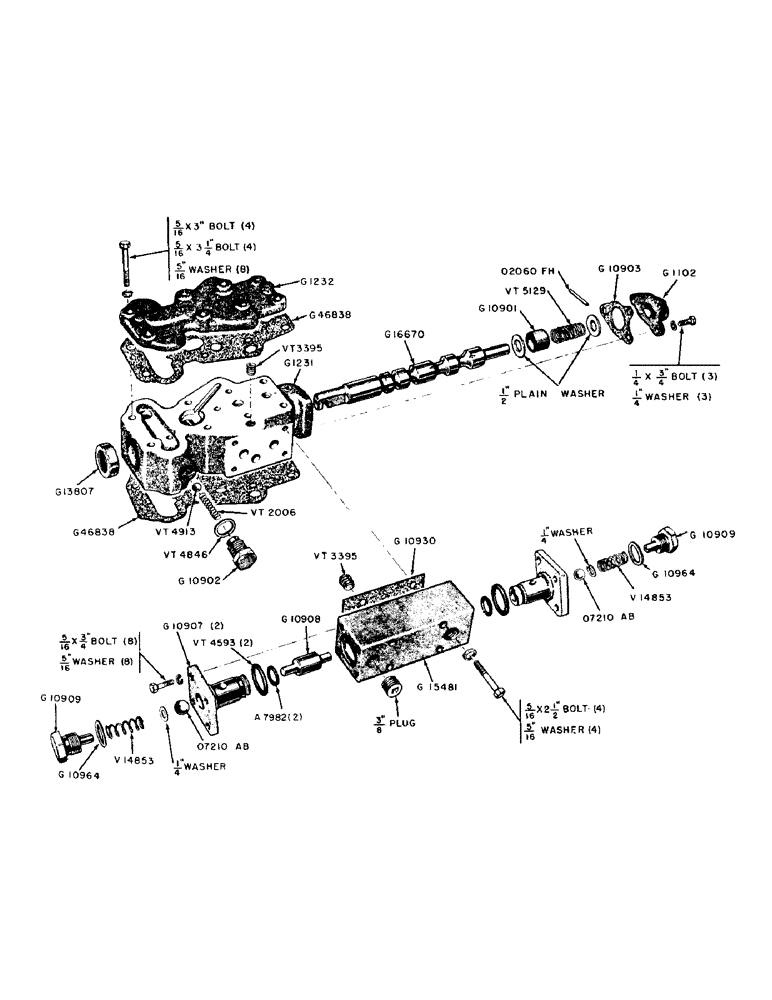

Запчасти Case IH 300-SERIES (156) - G13983 AND G13985 HYDRAULIC CONTROL VALVE PARTS (08) - HYDRAULICS

G1102

CAP - end, control valve

1шт.

1/4" X 3/4" NC HEX. HD. BOLT W/LOCKWASHER

3шт.

G1231

BODY - control valve

1шт.

G1232

COVER - control valve body

1шт.

5/16" X 3" NC HEX. HD. BOLT W/LOCKWASHER

4шт.

5/16" X 3-1/4" NC HEX. HD. BOLT W/LOCKWASHER

4шт.

G10901

SLEEVE

- valve spool stop

1шт.

G10902

PLUG - spring, spool detent

1шт.

G10903

GASKET

- end cap

1шт.

G13807

OIL SEAL

OIL SEAL - valve spool

1шт.

G16670

SPOOL

- control valve

1шт.

1/2" PLAIN WASHER

2шт.

G46839

GASKET

- control valve to adapter base and, Serial Range: cover-valve

2шт.

O2060FH

X

ROLL PIN - valve spool (1/8" x 3/4")

1шт.

VT2006

X

SPRING - detent, valve spool (Used only in G13983)

1шт.

VT3395

X

PLUG - top of G13985 control valve

1шт.

VT4846

X

GASKET - plug, detent spring

1шт.

VT4913

X

BALL - detent, valve spool (3/8" dia.) (Used only in G13983)

1шт.

VT5129

X

SPRING - valve spool

1шт.

A7982

O-RING,0.103" Thk x 0.612" ID, -114, Cl 5, 75 Duro

"O" RING - end cover inner seal, G13106 hydraulic interlock parts

2шт.

G10907

COVER

- interlock end, G13106 hydraulic parts

2шт.

5/16" X 3/4" HEX. HD. BOLT, NC w/lockwasher, G13106 hydraulic interlock parts

8шт.

G10908

PLUNGER

- interlock valve, G13106 hydraulic parts

1шт.

G10909

PLUG

- body end, G13106 hydraulic interlock parts

2шт.

G10930

GASKET

- interlock to control body, G13106 hydraulic parts

1шт.

G10964

WASHER

GASKET - end plug, G13106 hydraulic interlock parts

2шт.

G13106

INTERLOCK - hydraulic, complete, G13106 hydraulic interlock parts

1шт.

3/8" CTSK. HD. PIPE PLUG, G13106 hydraulic interlock parts

1шт.

5/16" X 2-1/2" HEX. HD. BOLT, NC w/lockwasher, G13106 hydraulic interlock parts

4шт.

G15481

BODY

- interlock, G13106 hydraulic parts

1шт.

O7210AB

X

BALL - interlock check valve (1/2" dia.), G13106 hydraulic parts

2шт.

V14853

X

SPRING - plunger, check valve ball, G13106 hydraulic interlock part

2шт.

VT3395

X

PLUG - interlock (1/4" ctsk. hd.), G13106 hydraulic parts

1шт.

VT4593

X

"O" RING - outer seal, end cover (1/16" dia.), G13106 hydraulic interlock parts

2шт.
