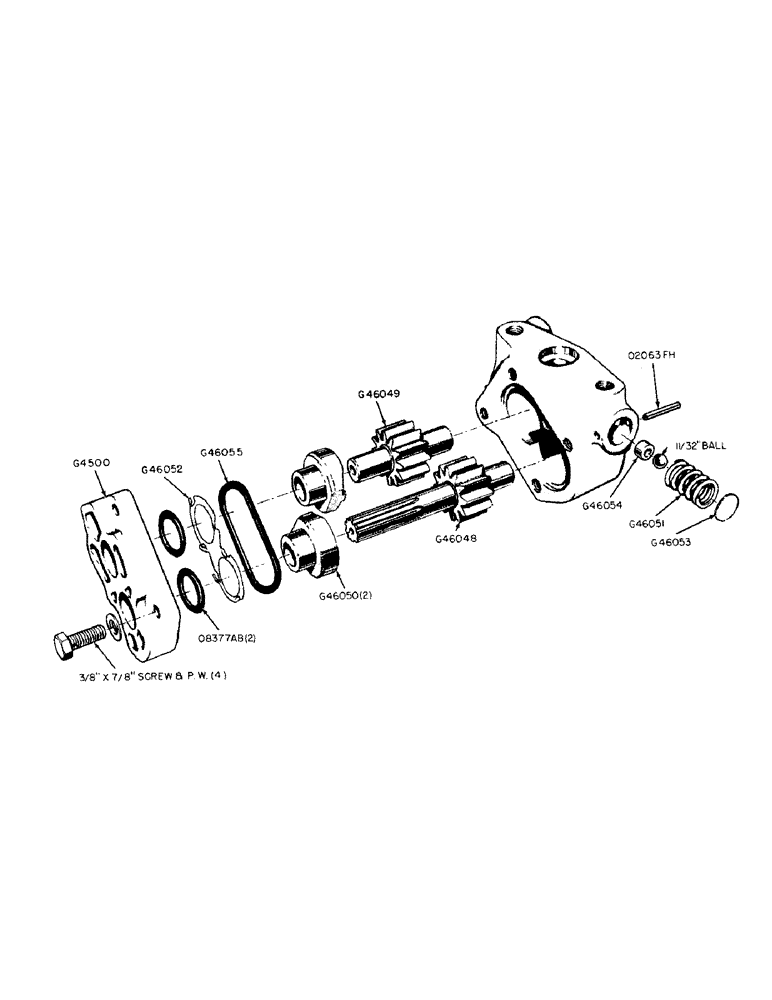

Запчасти Case IH 300-SERIES (155) - PARTS FOR G45100 HYDRAULIC PUMP (08) - HYDRAULICS

G4500

COVER - pump

1шт.

3/8" X 7/8" HEX. HD. CAP SCREW, NC w/plain washer

4шт.

G46048

GEAR - drive

1шт.

G46049

GEAR - driven

1шт.

G46050

BEARING COVER

BEARING - gear

2шт.

G46051

X

SPRING - detent valve

1шт.

G46052

PLATE

- spring, bearing

1шт.

G46053

SHIM - detent valve spring

1шт.

G46054

RETAINER - detent valve ball

1шт.

11/32" DIA. BALL (Pesco pump #99-146-11)

1шт.

G46055

SEAL

"O" RING - pump seal

1шт.

O8377AB

X

"O" RING - gear bearing seal

2шт.

O2063FH

X

ROLL PIN - detent spring retaining (3/16" x 1-1/8")

1шт.
