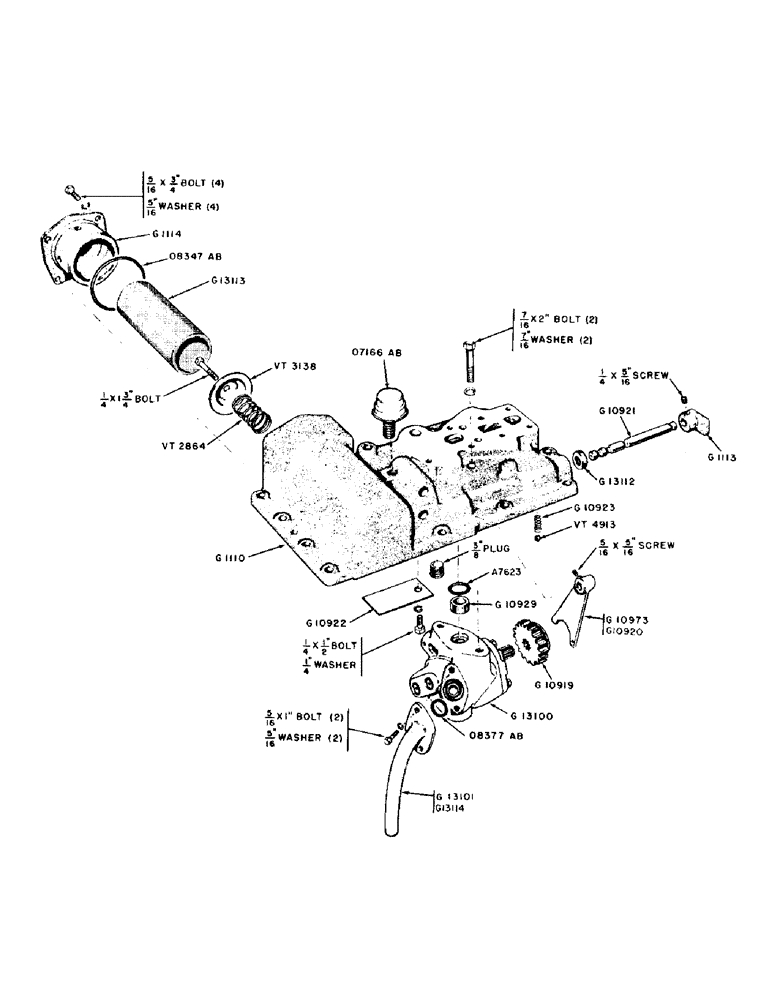

Запчасти Case IH 300-SERIES (154) - HYDRAULIC PUMP AND ADAPTER (08) - HYDRAULICS

A7623

O-RING,0.139" Thk x 0.984" ID, -214, Cl 5, 75 Duro

"O" RING - pilot, dowel bushing

1шт.

G1110

HOUSING - hydraulic pump and adapter

1шт.

3/8" STD. CTSK, HD. PIPE PLUG

1шт.

3/8" X 1" HEX. HD. BOLT, NC w/lockwasher

9шт.

3/8" X 1-3/4" HEX. HD. BOLT, NC w/lockwasher

2шт.

G1113

BUTTON - shift, hydraulic pump

1шт.

1/4" - 20 X 5/16" SOCKET HD. SET SCREW

1шт.

G1114

CAP - filter, adapter housing

1шт.

5/16" X 3/4" HEX. HD. BOLT, NC w/lockwasher

4шт.

G10919

GEAR - sliding, pump drive (18T)

1шт.

G10920

FORK - shift, hydraulic pump (Before tractor no. 6050880)

1шт.

5/16" X 5/16" SOCKET HD. SET SCREW, NC

1шт.

G10921

ROD - shift, hydraulic pump

1шт.

G10922

BAFFLE - filter, adapter housing

1шт.

1/4" X 1/2" HEX. HD. BOLT, NC w/lockwasher

1шт.

G10923

SPRING - detent ball, shift rod

1шт.

G10929

BUSHING

- dowel, pump pilot

1шт.

G10973

FORK - shift, hydraulic pipe (Tractor no. 6050880 and after)

1шт.

5/16" X 5/16" SOCKET HD. SET SCREW, NC

1шт.

G13100

X

PUMP - hydraulic, complete (Before tractor #6050880 order G10973 and G13101 also)

1шт.

Ref: G13100 Pump - hyd. is splined shaft. 17-June-96

1шт.

7/16" X 2" HEX. HD. BOLT, NC w/lockwasher

2шт.

G13101

TUBE - pump suction (Tractor no. 6050880 and after) 3.25" L

1шт.

5/16" X 1" HEX. HD. BOLT, NC w/lockwasher

2шт.

G13112

OIL SEAL

- pump shift rod

1шт.

G13113

ELEMENT,2.25" OD x 6" L

FILTER - hydraulic oil

1шт.

G131114

TUBE - pump suction (Before tractor no. 6050880)

1шт.

5/16" X 1" HEX. HD. BOLT, NC w/lockwasher

2шт.

O7166AB

X

BREATHER - control housing

1шт.

O8347AB

X

"O" RING - filter cap seal

1шт.

O8377AB

X

"O" RING - suction pipe seal

1шт.

VT2864

SPRING

- retainer, oil filter element

1шт.

VT3138

X

CAP - retainer, filter element

1шт.

1/4" X 1-3/4" HEX. HD. BOLT, NC

1шт.

VT4913

X

BALL - detent, shift rod (3/8" dia.)

1шт.

Ref: G10909 Plug - body - not available 17-June-96

1шт.
