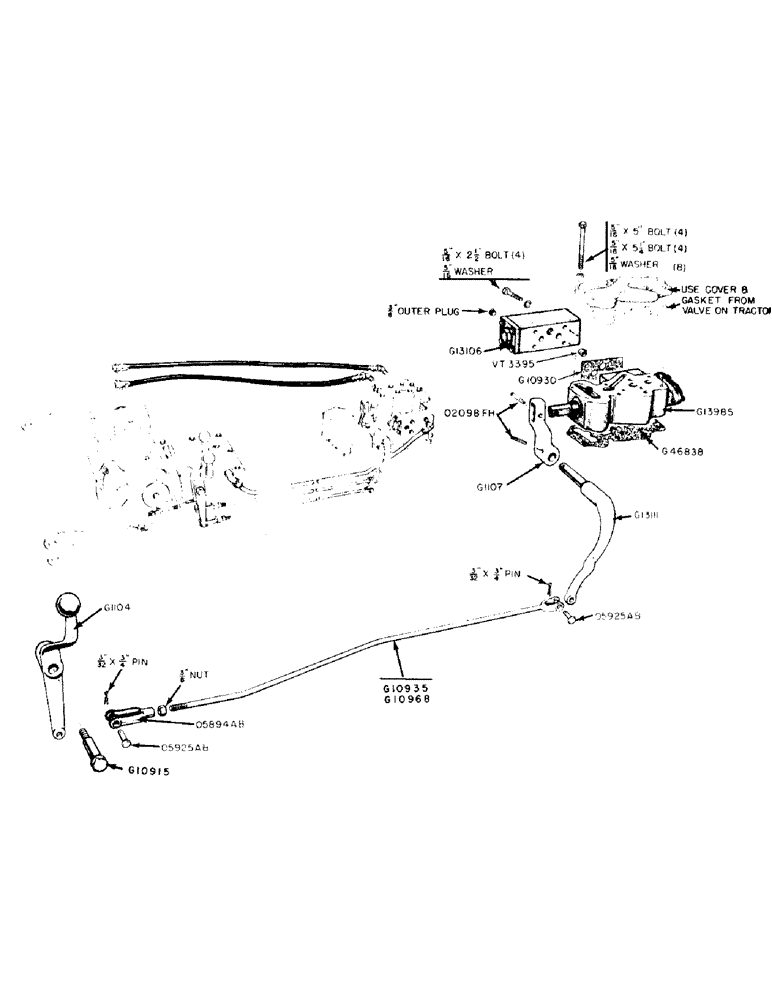

Запчасти Case IH 300-SERIES (153) - HYDRAULIC CONTROLS AND LEVER, FOR REMOTE CONTROL ON TRACTORS WITH EAGLE HITCH (08) - HYDRAULICS

G1104

LEVER

- hand, double control (Outer)

1шт.

G1107

CRANK

BELLCRANK - double control

1шт.

G10915

BOLT - pivot, double control hand lever (1/2" x 4-1/4")

1шт.

G10930

GASKET

- interlock to control body

1шт.

G10935

ROD - control valve to control lever (301, 311 gen. purpose)

1шт.

3/8" HEX. NUT UNF

1шт.

G10968

ROD - control, valve to control lever (300, 310 utility)

1шт.

3/8" HEX. NUT UNF

1шт.

G13106

HYDRAULIC INTERLOCK ASSEMBLY (Outer)

1шт.

5/16" X 2-1/2" HEX. HD. BOLT, UNC w/lockwasher

4шт.

G13111

CRANK

- control (Double acting valve)

1шт.

G13985

HYDRAULIC VALVE CONTROL ASSEMBLY (Includes pipe plug)

1шт.

5/16" X 5? HEX. HD. BOLT, UNC w/lockwasher

4шт.

5/16" X 5-1/4" HEX. HD. BOLT UNC W/LOCKWASHER

4шт.

G46838

GASKET

- control valve, Serial Range: (Valve-valve)

1шт.

O59894AB

YOKE - rod end

1шт.

O5925AB

X

PIN - clevis, drilled

2шт.

3/32" X 3/4" COTTER PIN

2шт.

O2098FH

X

ROLL PIN - (1/4" x 1") bellcrank

2шт.

VT3395

X

PLUG - pipe (1/4" ctsk. hd.)

1шт.
