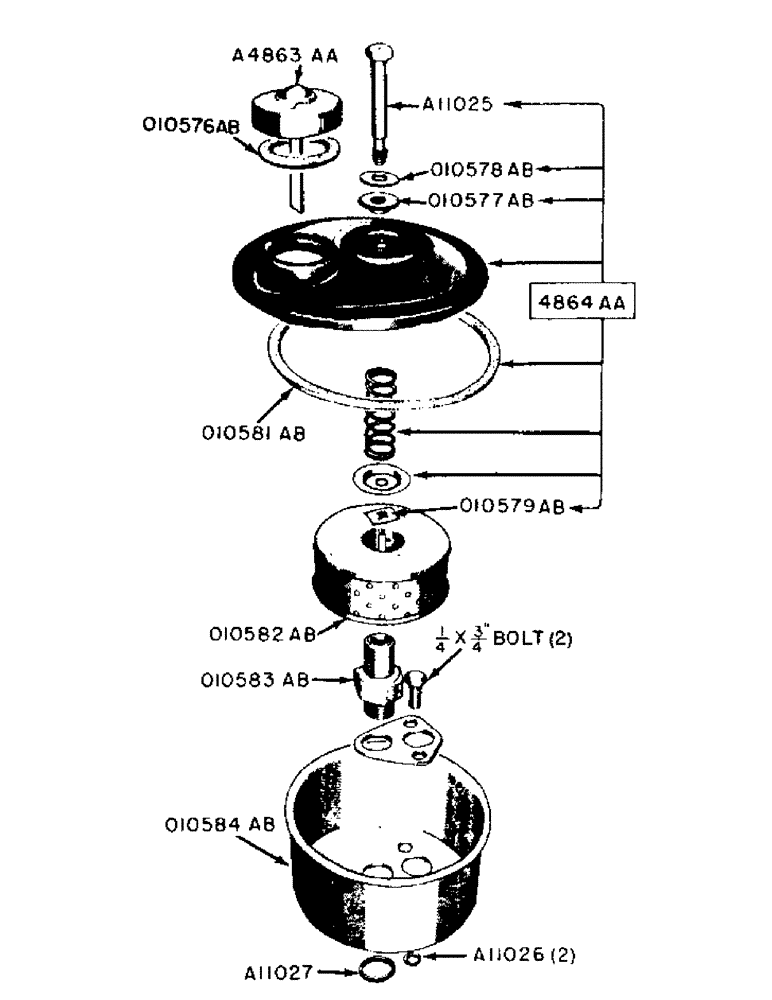

Запчасти Case IH 300-SERIES (146) - PARTS FOR G45054 RESERVOIR (08) - HYDRAULICS

A11025

SCREW - reservoir cover

1шт.

A11026

GASKET

"O" RING - mounting bolt

2шт.

A11027

GASKET

"O" RING - return stud and outlet passage

1шт.

O10577AB

X

GASKET - screw, reservoir cover

1шт.

O10578AB

X

WASHER - screw, reservoir cover

1шт.

O10579AB

NUT - speed, reservoir cover screw

1шт.

O10581AB

X

GASKET - reservoir cover

1шт.

O10582AB

X

FILTER ELEMENT

1шт.

O10583AB

STUD - return, reservoir

1шт.

O10584AB

BODY - reservoir

1шт.

1/4" X 3/4" NC HEX. HD. BOLT

2шт.

A4863AA

X

CAP - filler, assembly, reservoir cover

1шт.

4864AA

COVER ASSEMBLY - pump reservoir

1шт.
