Запчасти Case IH 300-SERIES (150) - P.T.O. ASSEMBLY (06) - POWER TRAIN

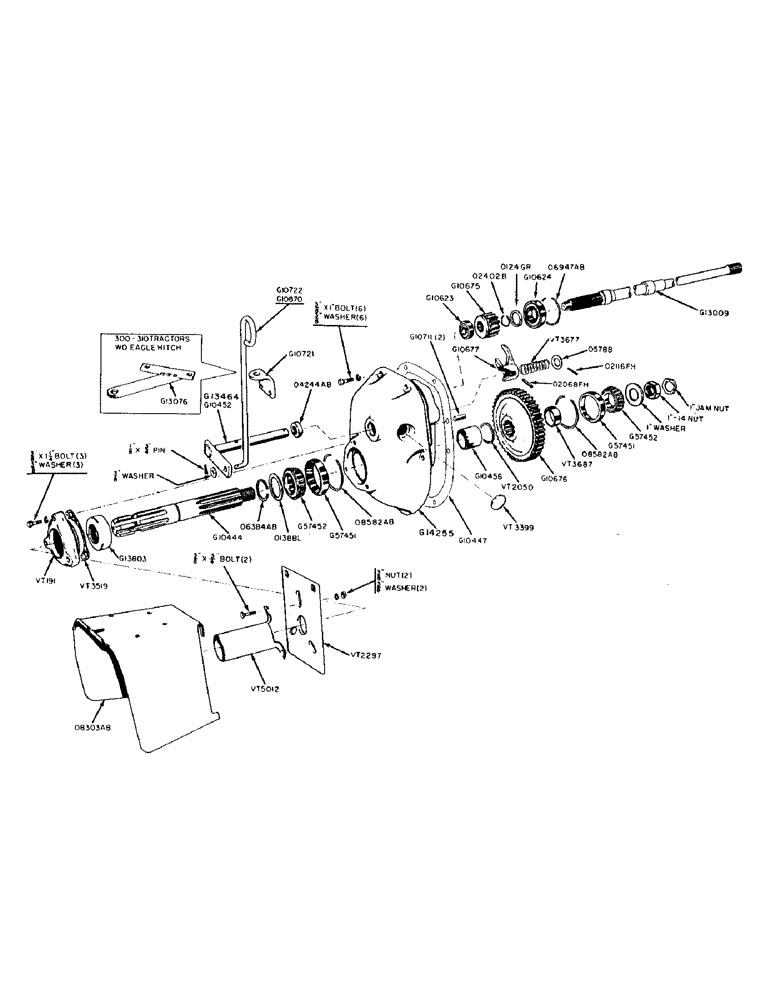

Схема запчастей Case IH 300-SERIES - (150) - P.T.O. ASSEMBLY (06) - POWER TRAIN

Артикул

Название

Примечание

Количество

G1054

X

HOUSING - P.T.O. (Use G14255)

1шт.

G10444

X

SHAFT - P.T.O. driven

1шт.

1" - 14 HEX. NUT UNF

1шт.

1" PLAIN WASHER SAE STD.

1шт.

G10447

GASKET

- P.T.O. housing to transmission case

1шт.

G10452

X

SHAFT AND LEVER - P.T.O. shaft (See G13464)

1шт.

G10456

SPACER

- driven gear, rear

1шт.

G10623

BALL BEARING

BEARING - P.T.O. drive shaft, rear (N.D. 7503)

1шт.

G10624

BALL BEARING

BEARING - P.T.O. drive shaft, front (N.D. 77506)

1шт.

P/N# G10624 (BEARING) HAS SHIELDS ON BOTH SIDES. THERE IS NO OTHER CASEIH EQUIVALENT TO THIS BRG. CAM (db) 1-21-98

1шт.

G10675

GEAR

- P.T.O. drive (14T)

1шт.

G10676

GEAR

- P.T.O. driven (46T)

1шт.

G10677

X

FORK - shift, drive gear

1шт.

G10711

PIN

- dowel, P.T.O., Serial Range: housing-transmission

2шт.

G10721

SUPPORT

- control rod

1шт.

G10722

ROD

- P.T.O. clutch control (Gen. purpose)

1шт.

1/8" X 3/4" COTTER PIN

1шт.

3/8" WASHER, PLAIN

1шт.

G10870

ROD - P.T.O. clutch control (Utility)

1шт.

1/8" X 3/4" COTTER PIN

1шт.

3/8" WASHER, PLAIN

1шт.

G13009

SHAFT

- P.T.O. drive

1шт.

G13076

SUPPORT

- control rod, P.T.O. (Utility Tractor)

1шт.

G13464

SHAFT AND LEVER - P.T.O. shift (302, 312) See G10452

1шт.

G13803

OIL SEAL

- P.T.O. rear

1шт.

G14255

HOUSING - P.T.O. (Includes 2-G57451 cups and 2-O8582AB snap rings)

1шт.

3/8" X 1" N.C. HEX. HD. BOLT W/LOCKWASHER

6шт.

G49002

NUT

- driven shaft (1" Palnut)

1шт.

G57451

BEARING, CUP

CUP - bearing, driven shaft (Timken #LM48510)

2шт.

G57452

ROLLER BEARING

CONE - bearing, driven shaft (Timken #LM48548)

2шт.

O4244AB

OIL SEAL - shift shaft

1шт.

O6384AB

SNAP RING - driven shaft

1шт.

O6947AB

X

SNAP RING - drive shaft front bearing retaining

1шт.

O8303AB

X

GUARD - universal joint

1шт.

O8582AB

X

SNAP RING - driven shaft bearing retainer

2шт.

O578B

X

WASHER - shifter shaft retainer

1шт.

O2402B

X

SNAP RING - drive shaft front bearing retaining

1шт.

O138BL

X

WASHER - driven shaft bearing retainer (Rear)

1шт.

O2068FH

X

ROLL PIN - shift fork (1/4" x 1-1/4")

1шт.

O2116FH

X

ROLL PIN - shift shaft retaining (3/16" x 1-1/4")

1шт.

O124GR

WASHER

- drive shaft bearing retainer (Front)

1шт.

VT91

RETAINER - rear oil seal

1шт.

3/8" X 1-1/4" UNC HEX. BOLTS AND LOCKWASHERS

3шт.

VT2050

X

WASHER - spring tension

1шт.

VT2297

X

PLATE - guard mounting

1шт.

3/8" X 3/4" UNC RD. HD. BOLT W/HEX. NUT AND LOCKWASHER

2шт.

VT3399

PLUG - expansion (Welch)

1шт.

VT3519

X

GASKET - rear oil seal retainer

1шт.

VT3677

X

SPRING - shifter fork throwout

1шт.

VT3687

X

SPACER - driven shaft front gear

1шт.

VT5012

X

GUARD - P.T.O. driven shaft

1шт.

Выбрано товаров: 51
