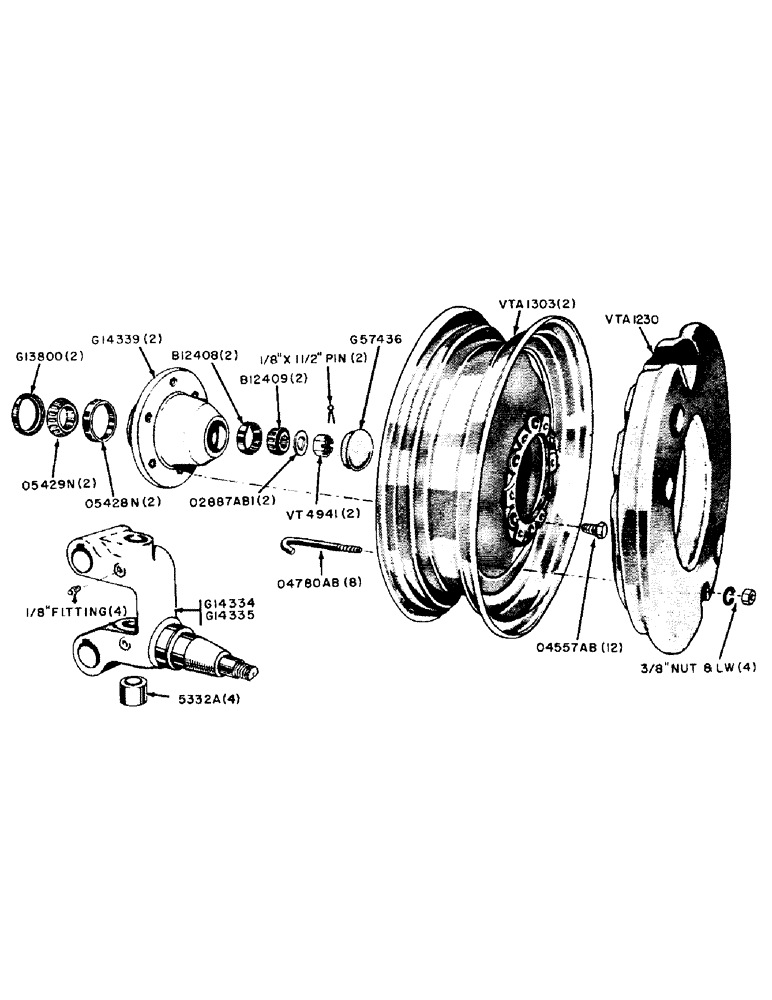

Запчасти Case IH 300-SERIES (141) - FRONT WHEEL, HUB AND SPINDLE, HEAVY DUTY FOR 300-310 UTILITY (06) - POWER TRAIN

B12408

BEARING CUP,59.156 mm OD x 11.862 mm

CUP - outer bearing (Timken #LM67010)

2шт.

B12409

BEARING, ROLLER,31.763 mm ID x 16.84 mm

CONE - outer bearing (Timken #LM67048)

2шт.

G1311

HUB (Use G14339)

1шт.

G13800

SEAL

- inner, wheel hub

2шт.

G14334

SPINDLE

- RH wheel (Includes 2-5332A bushings)

1шт.

1/8" 45 DEGREE FITTING (Lincoln #5200)

2шт.

G14335

SPINDLE

- LH wheel (Includes 2-5332A bushings)

1шт.

1/8" 45 DEGREE FITTING (Lincoln #5200)

2шт.

G14339

HUB CAP

HUB - front wheel (Includes bearing cups)

2шт.

G57436

CYLINDER END CAP

CAP - hub

2шт.

5332A

X

BUSHING - wheel spindle

4шт.

O2887AB1

X

WASHER - wheel hub nut

2шт.

O4557AB

BOLT -, Serial Range: wheel-hub

12шт.

O4780AB

BOLT - hook, wheel weight

8шт.

3/8" NC HEX. NUT AND LOCKWASHER

8шт.

VT624

WEIGHT - wheel (Use VTA1230)

1шт.

VT4941

X

NUT - wheel hub to spindle (1" NF slotted hex.)

2шт.

1/8" X 1-1/2" COTTER PIN

2шт.

VTA1230

WEIGHTS - wheel (Set of 2 w/bolts)

1шт.

VTA1303

X

WHEEL - front (6.00 x 16 tire)

2шт.

O5428N

X

CUP - inner bearing (Timken #13621)

2шт.

O5429N

X

CONE - inner bearing (Timken #13685)

2шт.
