Запчасти Case IH 300-SERIES (140) - FRONT WHEEL, HUB AND SPINDLE, STANDARD FOR 300-310 UTILITY (06) - POWER TRAIN

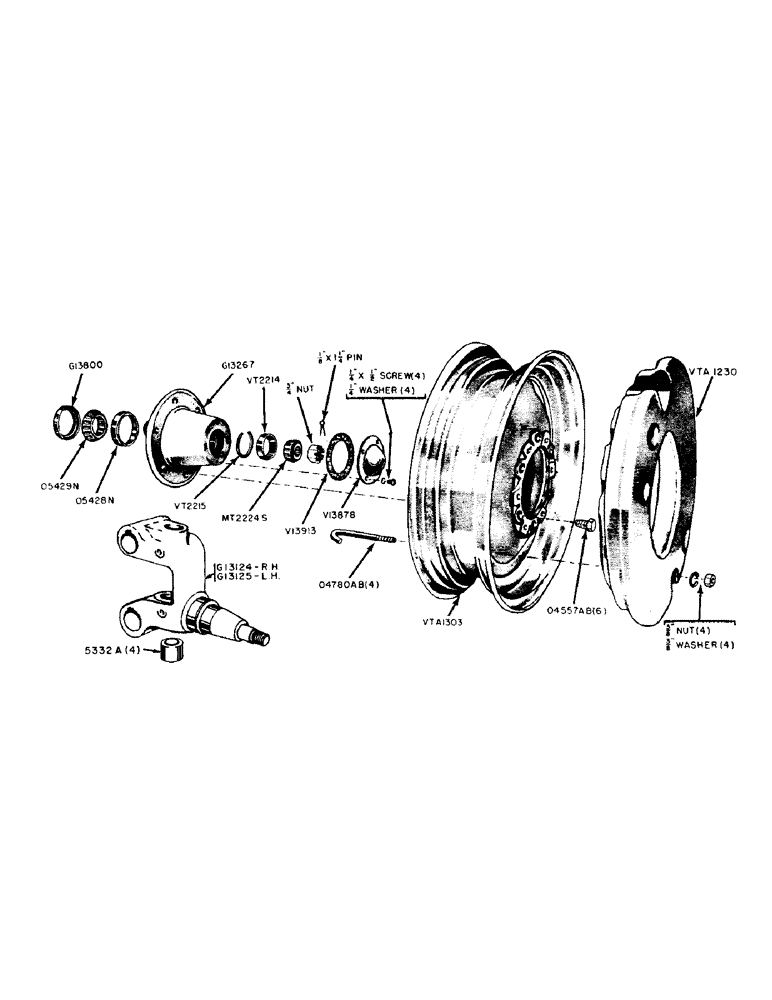

Схема запчастей Case IH 300-SERIES - (140) - FRONT WHEEL, HUB AND SPINDLE, STANDARD FOR 300-310 UTILITY (06) - POWER TRAIN

Артикул

Название

Примечание

Количество

G13124

SPINDLE

- RH wheel (Includes 2-5332A bushings)

1шт.

1/8" 45 DEGREE FITTING (Lincoln #5200)

2шт.

3/4" NF SLOTTED HEX. NUT

1шт.

1/8" X 1-1/4" COTTER PIN

1шт.

G13125

SPINDLE - LH wheel (Includes 2-5332A bushings)

1шт.

1/8" 45 DEGREE FITTING (Lincoln #5200)

2шт.

3/4" NF SLOTTED HEX. NUT

1шт.

1/8" X 1-1/4" COTTER PIN

1шт.

G13267

HUB - front wheel (Includes bearing cups and snap rings)

2шт.

G13800

SEAL

- inner, wheel hub

2шт.

5332A

X

BUSHING - king pin

4шт.

O4557AB

BOLT -, Serial Range: wheel-hub

12шт.

O4780AB

BOLT - hook, wheel weight

8шт.

3/8" NC HEX. NUT AND LOCKWASHER

8шт.

O5428N

X

CUP - inner bearing (Timken #13621)

2шт.

O5429N

X

CONE - inner bearing (Timken #13685)

2шт.

V13878

CAP - wheel hub

2шт.

1/4" X 1/2" NC RD. HD. MACH. SCREW W/LOCKWASHER

8шт.

V13913

X

GASKET - hub cap

2шт.

VT546

HUB (Use G13267)

1шт.

VT624

WEIGHT - wheel (Use VTA1230)

1шт.

VT2214

X

CUP - outer bearing (Timken #O9195)

2шт.

VT2215

X

SNAP RING - wheel hub

2шт.

MT2224S

X

CONE - outer bearing (Timken #O9081)

2шт.

VTA1230

WEIGHTS - wheel (Set of 2-w/bolts)

1шт.

VTA1303

X

WHEEL - front (6.00 x 16 tires)

2шт.

Выбрано товаров: 26
