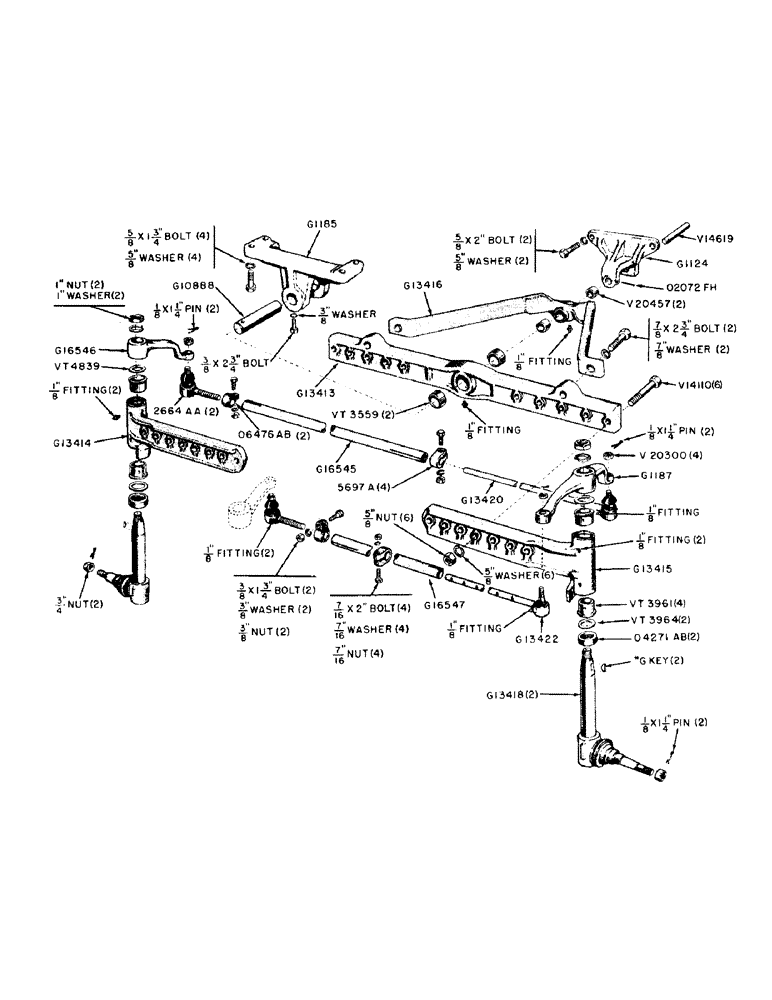

Запчасти Case IH 300-SERIES (138) - ADJUSTABLE FRONT AXLE, 300-310 UTILITY (06) - POWER TRAIN

G1124

BRACKET - rear pivot, radius rod

1шт.

5/8" X 2" NC HEX. HD. BOLT W/LOCKWASHER

2шт.

G1185

SUPPORT - front pivot

1шт.

5/8" X 1-3/4" NC HEX. HD. BOLT W/LOCKWASHER

4шт.

G1187

ARM - steering spindle, LH

1шт.

G1188

Pivot (Use G13416)

1шт.

G10888

PIN

- front pivot

1шт.

3/8" X 2-3/4" NC HEX. HD. BOLT W/LOCKWASHER

1шт.

G13413

SECTION - center, includes 2-VT3559 pivot bushings

1шт.

1/8" STR. LINCOLN FITTING #5000

1шт.

G13414

EXTENSION - RH, front axle, includes 2-VT3961 bushings

1шт.

1/8" STR. LINCOLN FITTING #5000

2шт.

G13415

EXTENSION - LH, front axle, includes 2-VT3961 bushings

1шт.

1/8" STR. LINCOLN FITTING #5000

2шт.

G13416

RADIUS ROD AND REAR PIVOT, includes 2-V20457 bushings

1шт.

7/8" X 2-3/4" NC HEX. HD. BOLT W/LOCKWASHER

2шт.

1/8" 45 DEGREE LINCOLN FITTING #5200

1шт.

G13418

SPINDLE - front wheel

2шт.

1" NF HEX. NUT AND LOCKWASHER

2шт.

1/8" X 1-1/4" COTTER PIN

2шт.

#G WOODRUFF KEY

2шт.

3/4" NF HEX. NUT

2шт.

G13420

TIE ROD - notched

1шт.

1/8" STR. LINCOLN FITTING #5000

1шт.

1/8" X 1-1/4" COTTER PIN

1шт.

G13422

DRAG LINK - notched

1шт.

1/8" STR. LINCOLN FITTING #5000

1шт.

1/8" X 1-1/4" COTTER PIN

1шт.

G16545

TUBE - tie rod

1шт.

G16546

ARM - steering spindle, RH

1шт.

G16547

TUBE - drag link

1шт.

5697A

X

CLAMP - notched tie, Serial Range: rod-tube

4шт.

7/16" X 2" NF HEX. HD. BOLT W/HEX. NUT AND LOCKWASHER

4шт.

O4271AB

X

BEARING - thrust, outer spindle (Timken #T-139)

2шт.

O6476AB

X

CLAMP - tie rod end to tube, includes 3/8" x 1-3/4" NC hex. hd. bolt w/hex. nut and lockwasher

2шт.

O2072FH

X

ROLL PIN - rear pivot pin (1/4" x 2")

1шт.

V14110

BOLT - axle extensions to center section

6шт.

5/8" NF HEX. NUT AND LOCKWASHER

6шт.

V14619

PIN - rear pivot, radius rod

1шт.

V20300

OPERATOR MANUAL

NUT - tie rod ends (9/16" slotted hex.)

4шт.

V20457

X

BUSHING - rear pivot

2шт.

VT3559

X

BUSHING - pivot, center section

2шт.

VT3961

X

BUSHING - spindle

4шт.

VT3964

X

WASHER - thrust, outer spindle

2шт.

VT4839

X

SHIM - adjusting, steering spindle

1шт.

2664AA

X

TIE ROD - inner

2шт.

1/8" STR. LINCOLN FITTING #5000

2шт.

1/8" X 1-1/4" COTTER PIN

2шт.
