Запчасти Case IH 300-SERIES (133) - SINGLE FRONT WHEEL AND FORK, 302-312 GENERAL PURPOSE (06) - POWER TRAIN

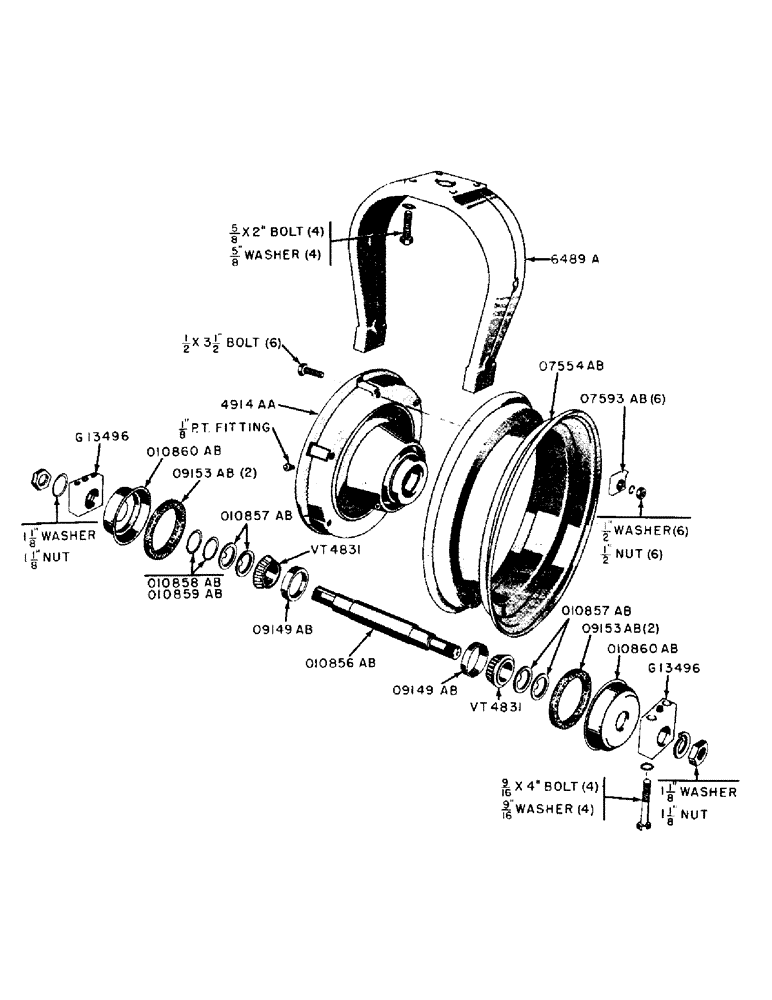

Схема запчастей Case IH 300-SERIES - (133) - SINGLE FRONT WHEEL AND FORK, 302-312 GENERAL PURPOSE (06) - POWER TRAIN

Артикул

Название

Примечание

Количество

G13496

BLOCK AND PIN - fork extension

2шт.

9/16" X 4" NF HEX. HD. BOLT W/LOCKWASHER

4шт.

6488A

WHEEL (Use 4914AA)

1шт.

6489A

FORK - single front wheel

1шт.

5/8" X 2" NF HEX. HD. BOLT W/EXTERNAL SHAKEPROOF LOCKWASHER #1128

4шт.

O75544AB

RIM - 4.50F x 16 full drop center

1шт.

O7593AB

X

CLAMP - front wheel rim

6шт.

1/2" X 3-1/2" NF HEX. HD. BOLT W/HEX. NUT

6шт.

O9149AB

X

CUP - bearing, front wheel (Timken #25820)

2шт.

O9150AB

X

CONE - bearing, front wheel (Timken #25878) Use VT4831

1шт.

O9153AB

X

WASHER - felt, front wheel hub

4шт.

O10856AB

SHAFT - axle, single front wheel

1шт.

1-1/8" NF HEX. JAM NUT W/LOCKWASHER

2шт.

O10857AB

WASHER - axle shaft

4шт.

O10858AB

X

SHIM - axle shaft (.003")

4шт.

O10859AB

SHIM - axle shaft (.005")

12шт.

O10860AB

X

RETAINER - felt washer

2шт.

VT4831

X

CONE - bearing, front wheel (Timken #25877)

2шт.

4914AA

WHEEL - front, includes 2 - O9149AB bearing cups

1шт.

1/8" STR. FITTING (Lincoln #5000)

1шт.

Выбрано товаров: 20
