Запчасти Case IH 300-SERIES (132) - FRONT WHEEL AND HUB, 302-312 ADJUSTABLE FRONT AXLE (06) - POWER TRAIN

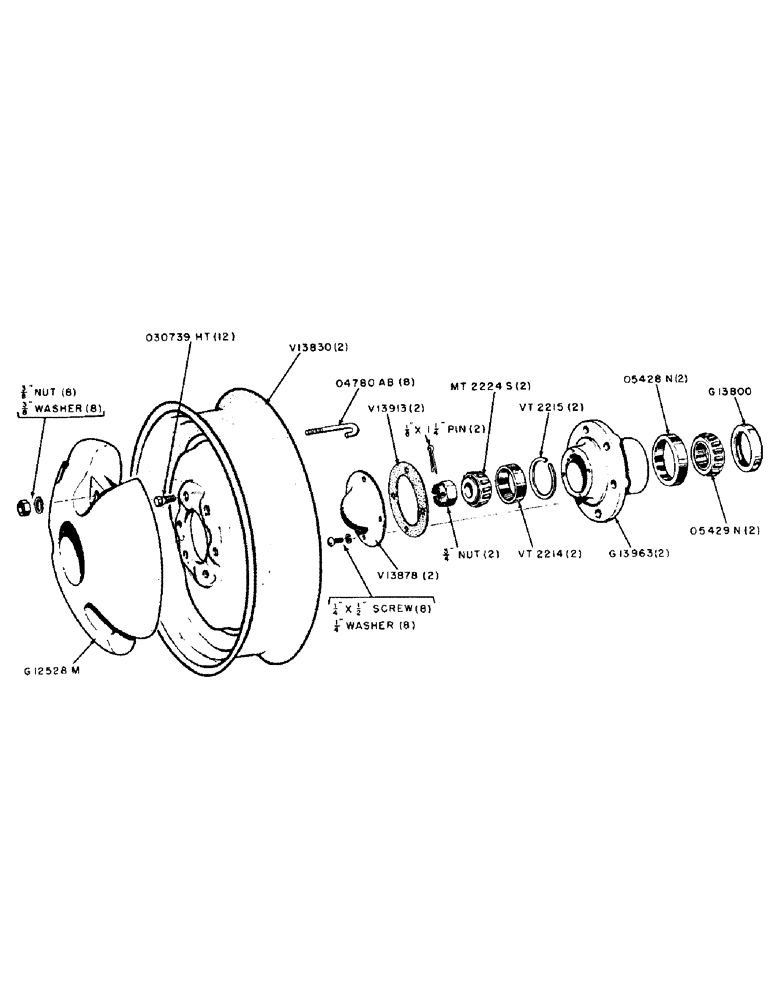

Схема запчастей Case IH 300-SERIES - (132) - FRONT WHEEL AND HUB, 302-312 ADJUSTABLE FRONT AXLE (06) - POWER TRAIN

Артикул

Название

Примечание

Количество

G12528M

WEIGHT - wheel (Set of 2 w/bolts)

1шт.

G13800

SEAL

- inner, wheel hub

2шт.

G13963

HUB - wheel, includes bearing cups and snap ring

2шт.

3/4" NF SLOTTED HEX. NUT

2шт.

1/8" X 1-1/4" COTTER PIN

2шт.

VT52

X

HUB (Use G13963)

1шт.

VT624

WEIGHT (Use G12528M)

1шт.

O4780AB

BOLT - hook, wheel weight

8шт.

3/8" NC HEX. NUT AND LOCKWASHER

8шт.

O30739HT

X

BOLT -, Serial Range: wheel-hub

12шт.

O5428N

X

CUP - inner bearing (Timken #13621)

2шт.

O5429N

X

CONE - inner bearing (Timken #13685)

2шт.

V13830

WHEEL - front

2шт.

V13878

CAP - hub

2шт.

1/4" X 1/2" NC RD. HD. MACH. SCREW W/LOCKWASHER

8шт.

V13913

X

GASKET - hub cap

2шт.

VT2214

X

CUP - outer bearing (Timken #09195)

2шт.

VT2215

X

SNAP RING - wheel hub

2шт.

MT2224S

X

CONE - outer bearing (Timken #09081)

2шт.

Выбрано товаров: 19
