Запчасти Case IH 300-SERIES (130) - ADJUSTABLE FRONT AXLE, 302-312 GENERAL PURPOSE (06) - POWER TRAIN

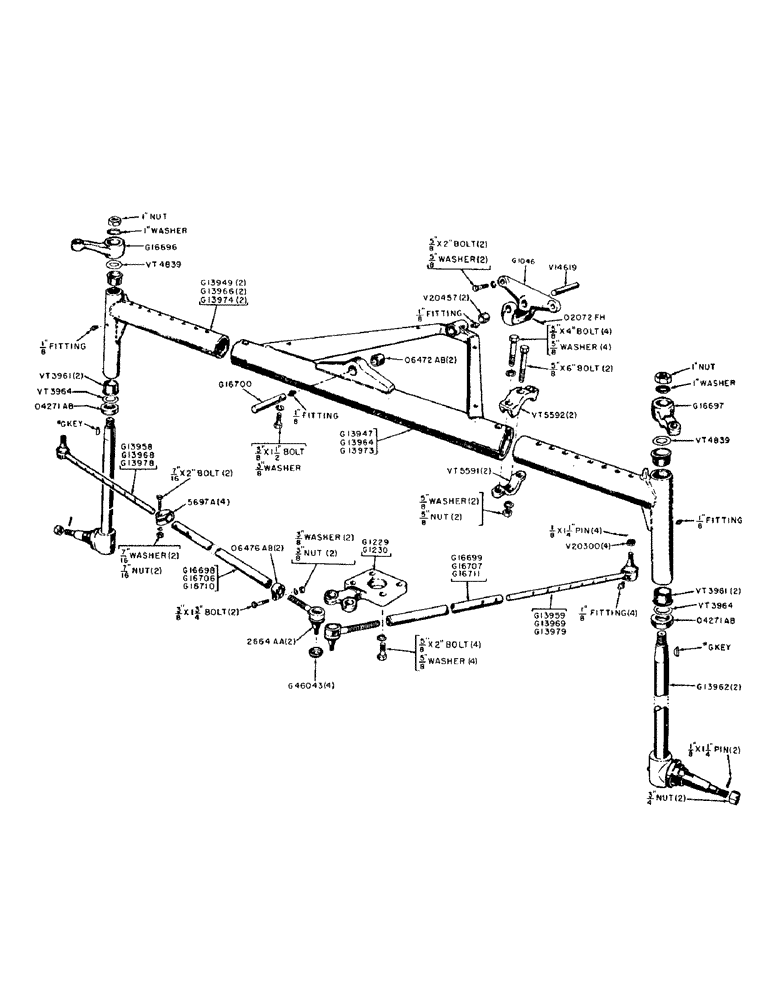

Схема запчастей Case IH 300-SERIES - (130) - ADJUSTABLE FRONT AXLE, 302-312 GENERAL PURPOSE (06) - POWER TRAIN

Артикул

Название

Примечание

Количество

G1046

BRACKET - rear, radius rod pivot

1шт.

5/8" X 2" NC HEX. HD. BOLT W/LOCKWASHER

2шт.

G1229

ARM - center steering (54" - 78")

1шт.

5/8" X 2" NF HEX. HD. BOLT W/LOCKWASHER

4шт.

G1230

ARM - center steering (44" - 60" and 48" - 68")

1шт.

5/8" X 2" NF HEX. HD. BOLT W/LOCKWASHER

4шт.

G13947

TUBE - center, front axle, w/radius rod and pivot bushings (54" - 78")

1шт.

1/8" STR. FITTING (Lincoln #5000)

1шт.

G13949

TUBE - extension, front axle, includes bushings (54" - 78")

2шт.

1/8" STR. FITTING (Lincoln #5000)

2шт.

G13958

TIE ROD - notched, RH (18" long) (54" - 78")

1шт.

1/8" STR. FITTING (Lincoln #5000)

1шт.

1/8" X 1-1/4" COTTER PIN

1шт.

G13959

TIE ROD - notched, LH (18" long) (54" - 78")

1шт.

1/8" STR. FITTING (Lincoln #5000)

1шт.

1/8" X 1-1/4" COTTER PIN

1шт.

G13962

SPINDLE - front wheel

2шт.

1" NF HEX. NUT AND LOCKWASHER

2шт.

1/8" X 1-1/4" COTTER PIN

2шт.

3/4" NF HEX. NUT

2шт.

G13964

TUBE - center, front axle, includes radius rod and pivot bushings (48" - 68")

1шт.

1/8" STR. FITTING (Lincoln #5000)

1шт.

G13966

TUBE - extension, front axle, includes bushings (48" - 68")

2шт.

1/8" STR. FITTING (Lincoln #5000)

2шт.

G13968

TIE ROD - notched, RH (14" long) (48" - 68")

1шт.

G13969

TIE ROD - notched, LH (14" long) (48" - 68")

1шт.

G13973

TUBE - center, front axle, w/radius rod and pivot bushings (44" -60")

1шт.

1/8" STR. FITTING (Lincoln #5000)

1шт.

G13974

TUBE - extension, front axle, includes bushings (44" - 60")

2шт.

1/8" STR. FITTING (Lincoln #5000)

2шт.

G13978

TIE ROD - notched, RH (12" long) (44" - 60")

1шт.

1/8" STR. FITTING (Lincoln #5000)

1шт.

G13979

TIE ROD - notched, LH (12" long) (44" - 60")

1шт.

1/8" STR. FITTING (Lincoln #5000)

1шт.

G16696

ARM

- steering spindle, RH

1шт.

#G WOODRUFF KEY

1шт.

G16697

ARM

- steering spindle, LH

1шт.

#G WOODRUFF KEY

1шт.

G16698

TUBE,0.76" ID x 21" L

- tie rod, RH (21" long) (54" - 78")

1шт.

G16699

X,0.76" ID x 21" L

TUBE - tie rod, LH (21" long) (54" - 78")

1шт.

G16700

PIN - pivot, front axle

1шт.

3/8" X 1-1/2" NC HEX. HD. BOLT W/LOCKWASHER

1шт.

1/8" 45 degree fitting (Lincoln #5200)

1шт.

G16706

TUBE - tie rod, RH (17-3/4" long) (48" - 68") 0.76" ID x 17.75" L

1шт.

G16707

TUBE - tie rod, LH (17-3/4" long) (48" - 68") 0.76" ID x 17.75" L

1шт.

G16710

TUBE - tie rod, RH (15-3/4" long) (44" - 60") 0.76" ID x 15.75" L

1шт.

G16711

TUBE - tie rod, LH (15-3/4" long) (44" - 60") 0.76" ID x 15.75" L

1шт.

G46043

COVER

- dust, tie rod end

4шт.

5697A

X

CLAMP - outer, tie rod end

4шт.

7/16" X 2" NF HEX. HD. BOLT W/HEX. NUT AND LOCKWASHER

4шт.

O4271AB

X

BEARING - thrust, outer spindle (Timken #T-139)

2шт.

O6472AB

X

BUSHING - pivot, center tube

2шт.

O6476AB

X

CLAMP - inner, tie rod end

2шт.

3/8" X 1-3/4" NC HEX. HD. BOLT W/HEX. NUT AND LOCKWASHER

2шт.

O2072FH

X

ROLL PIN - radius rod pivot pin (1/4" x 2")

1шт.

V14619

PIN - pivot, radius rod

1шт.

V20300

OPERATOR MANUAL

NUT - tie rod end

4шт.

V20457

X

BUSHING - rear pivot, radius rod

2шт.

VT3961

X

BUSHING - wheel spindle, in extension tube

4шт.

VT3964

X

WASHER - thrust, outer spindle

2шт.

VT4839

X

SHIM - adjusting, wheel spindle (.010")

1шт.

VT5591

CLAMP - lower threaded, extension tube to center tube

2шт.

VT5592

CLAMP - upper, extension tube to center tube

2шт.

5/8" X 4" NC HEX. HD. BOLT W/LOCKWASHER

4шт.

5/8" X 6" NF HEX. HD. BOLT W/HEX. NUT AND LOCKWASHER

2шт.

2664AA

X

TIE ROD - inner

2шт.

1/8" STR. FITTING (Lincoln #5000)

2шт.

1/8" X 1-1/4" COTTER PIN

2шт.

Выбрано товаров: 68
