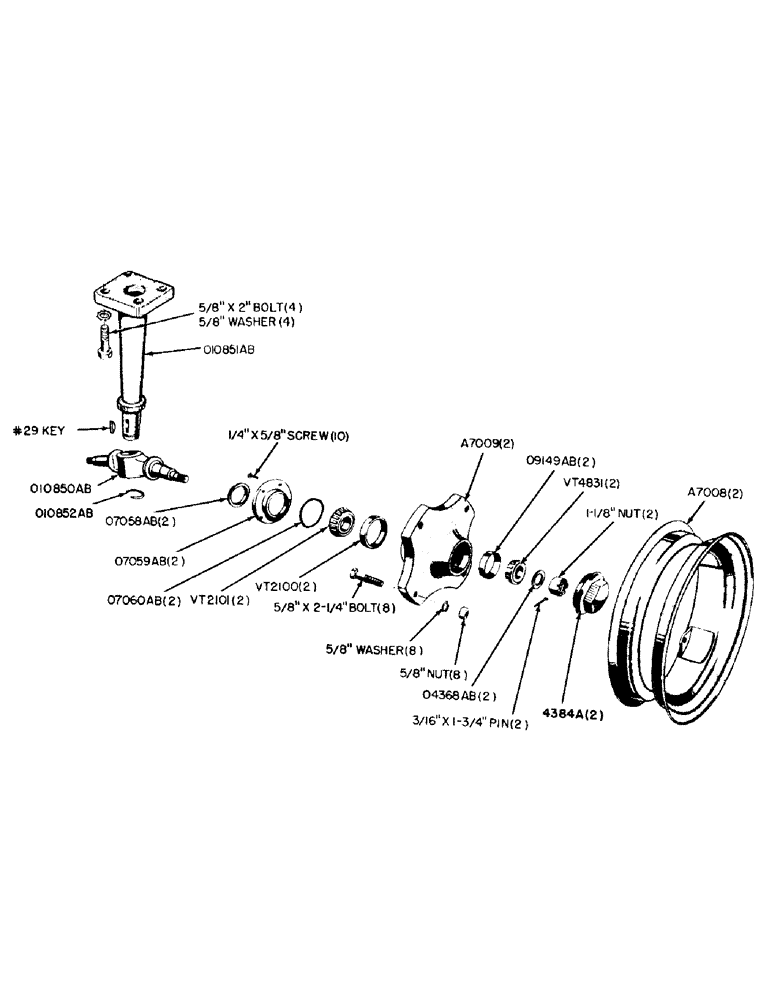

Запчасти Case IH 300-SERIES (129) - DUAL FRONT WHEEL AND SPINDLE, 302-312 GENERAL PURPOSE (06) - POWER TRAIN

A7008

RIM

- front wheel, with clamps (6.00 x 16" tires)

2шт.

5/8" X 2-1/4" NF HEX. HD. BOLT W/HEX. NUT AND LOCKWASHER

8шт.

A7009

SPARE PART

WHEEL - front, includes O9149AB and VT2100 cups

2шт.

4384A

X

CAP - hub, front wheel

2шт.

6485A

WHEEL - (Use A7009)

1шт.

O4368AB

X

WASHER - wheel spindle nut

2шт.

O7058AB

X

SEAL - wheel

2шт.

O7059AB

X

RETAINER - seal

2шт.

1/4" X 5/8" flat hd. mach. screw

10шт.

O7060AB

X

"O" RING - oil seal retainer

2шт.

O9149AB

X

CUP - bearing, front wheel (Timken #25820)

2шт.

O9150AB

X

CONE - bearing, front wheel (Timken #25878) (Use VT4831)

1шт.

O10850AB

SPINDLE - dual front wheel

1шт.

1-1/8" SLOTTED HEX. NUT (Thick)

2шт.

3/16" X 1-3/4" COTTER PIN

2шт.

O10851AB

SPINDLE - steering

1шт.

#29 WOODRUFF KEY

1шт.

5/8" X 2" NF HEX. HD. BOLT W/SHAKEPROOF LOCKWASHER

4шт.

O10852AB

SNAP RING - wheel spindle to steering spindle

1шт.

VT2100

X

CUP - inner bearing, front wheel (Timken #25520)

2шт.

VT2101

X

CONE - inner bearing, front wheel (Timken #25580)

2шт.

VT4831

X

CONE - outer bearing, front wheel (Timken #25877)

2шт.
