Запчасти Case IH 300-SERIES (126) - FRONT WHEEL AND HUB, 301-311 GENERAL PURPOSE (06) - POWER TRAIN

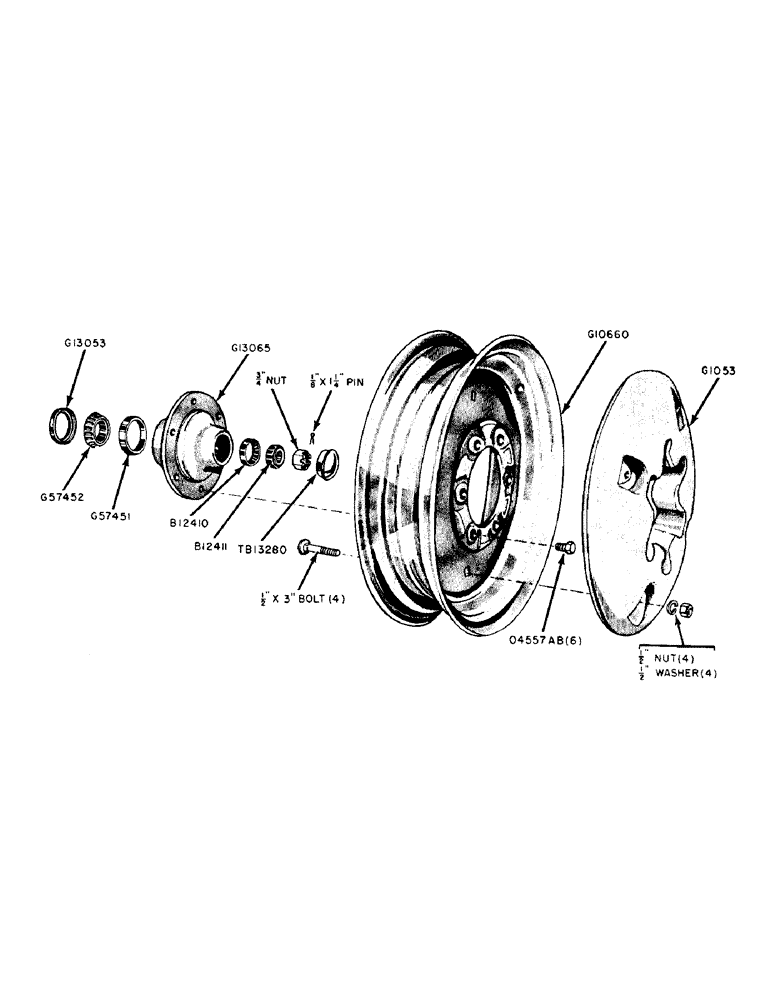

Схема запчастей Case IH 300-SERIES - (126) - FRONT WHEEL AND HUB, 301-311 GENERAL PURPOSE (06) - POWER TRAIN

Артикул

Название

Примечание

Количество

B12410

BEARING, CUP,1.782" OD

CUP - outer bearing (Timken #LM-11910)

2шт.

B12411

ROLLER BEARING,0.75" ID x 0.655"

CONE - outer bearing (Timken #LM-11949)

2шт.

G1053

WEIGHT - front wheel (See G12050M)

2шт.

1/2" X 3" CARR. BOLT W/HEX. NUT AND LOCKWASHER

8шт.

G1086

HUB - (Use G13065)

1шт.

G10660

X

WHEEL - (5.50 x 16 tire)

2шт.

G12050M

WHEEL WEIGHTS, set of 2 w/bolts (Mchy. Item)

1шт.

G13053

OIL SEAL

OIL SEAL - inner

2шт.

G13065

X

HUB - front wheel, includes bearing cups

2шт.

G57451

BEARING, CUP

CUP - inner bearing (Timken #LM-48510)

2шт.

G57452

ROLLER BEARING

CONE - inner bearing (Timken #LM-8548)

2шт.

O4557AB

BOLT -, Serial Range: wheel-hub

12шт.

TB13280

X

CAP - wheel hub

2шт.

Выбрано товаров: 13
