Запчасти Case IH 300-SERIES (124) - ADJUSTABLE FRONT AXLE, 301-311 GENERAL PURPOSE (06) - POWER TRAIN

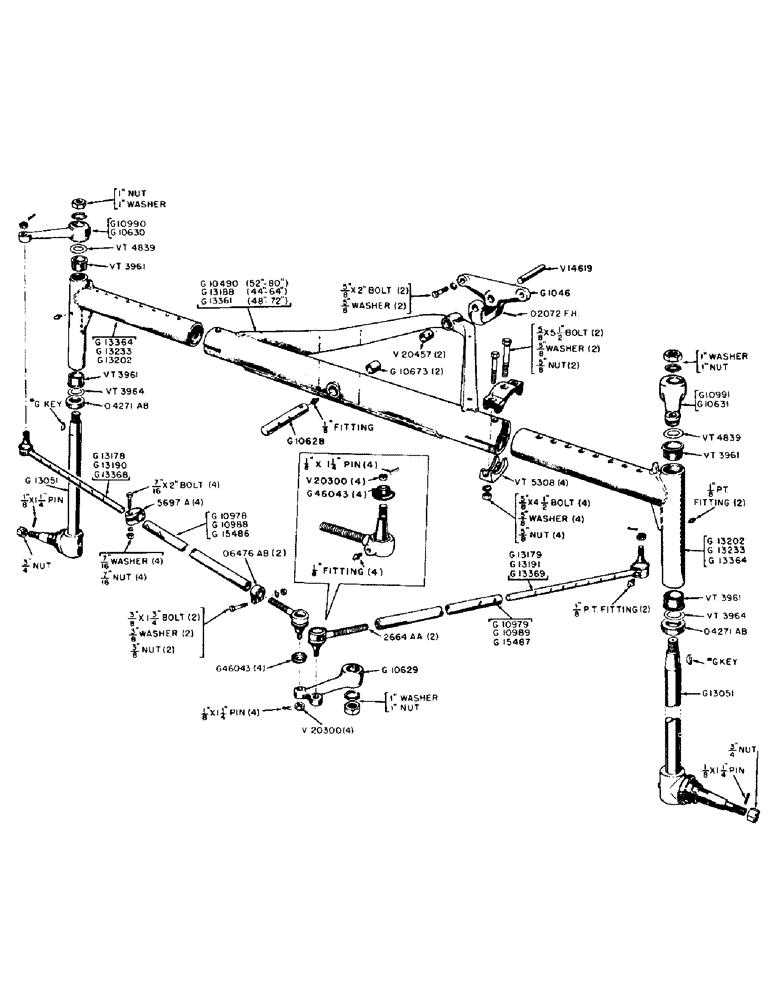

Схема запчастей Case IH 300-SERIES - (124) - ADJUSTABLE FRONT AXLE, 301-311 GENERAL PURPOSE (06) - POWER TRAIN

Артикул

Название

Примечание

Количество

G1046

BRACKET - rear radius rod pivot

1шт.

5/8" X 2" NC HEX. HD. BOLT W/LOCKWASHER

2шт.

G10490

TUBE - center, w/radius rod and pivot bushings (52"-80")

1шт.

1/8" STR. FITTING (Lincoln #5000)

1шт.

G10628

PIN - pivot, front axle center tube

1шт.

1/8" 45 degree fitting (Lincoln #5200)

1шт.

G10629

ARM - center steering

1шт.

#G WOODRUFF KEY

1шт.

G10630

ARM - steering spindle, RH (52"-80")

1шт.

G10631

X

ARM - steering spindle, LH (52"-80")

1шт.

G10673

BUSHING

- front pivot, center tube

2шт.

G10978

TUBE

- RH tie rod (20-3/8" long) (52"-80")

1шт.

G10979

X

TUBE - LH tie rod (20-3/8" long) (52"-80")

1шт.

G10988

TUBE - RH tie rod (16-3/8" long) (44"-64")

1шт.

G10989

TUBE - LH tie rod (16-3/8" long) (44"-64")

1шт.

G10990

X

ARM - steering spindle, RH (44"-64" and 48"-72")

1шт.

G10991

ARM - steering spindle, LH (44"-64" AND 48"-72")

1шт.

G13051

X

SPINDLE - wheel

2шт.

#G WOODRUFF KEY

2шт.

1" NF HEX. NUT AND LOCKWASHER

2шт.

G13178

X

TIE ROD - notched, RH (19-1/2" long) (52"-80")

1шт.

G13179

X

TIE ROD - notched, LH (19-1/2" long) (52"-80")

1шт.

1/8" STR. FITTING (Lincoln #5000)

1шт.

1/8" X 1-1/4" COTTER PIN

1шт.

G13188

TUBE - center, w/radius rod and bushings (44"-64") 23.687" L

1шт.

1/8" STR. FITTING (Lincoln #5000)

1шт.

G13190

TIE ROD - notched, RH (15-1/2" long) (44"-64")

1шт.

G13191

TIE ROD - notched, LH (15-1/2" long) (44"-64")

1шт.

1/8" STR. FITTING (Lincoln #5000)

1шт.

G13202

TUBE - axle extension, includes 2-VT3961 bushings (52"-80")

2шт.

G13233

TUBE - axle extension, includes 2-VT3961 bushings (44"-64")

2шт.

1/8" STR. FITTING (Lincoln #5000)

2шт.

G13361

TUBE - center, includes radius rod and pivot bushings (48"-72")

1шт.

1/8" STR. FITTING (Lincoln #5000)

1шт.

G13364

TUBE - axle extension, includes 2-VT3961 bushings (48"-72")

2шт.

1/8" STR. FITTING (Lincoln #5000)

2шт.

G13368

X

TIE ROD - notched, RH (17-1/2" long) (48"-72")

1шт.

G13369

TIE ROD - notched, LH (17-1/2" long) (48"-72")

1шт.

1/8" STR. FITTING (Lincoln #5000)

1шт.

G15486

TUBE - RH tie rod (18-3/8" long) (48"-72") 18.375" L

1шт.

G15487

TUBE - LH tie rod (18-3/8" long) (48"-72") 18.375" L

1шт.

G46043

COVER

- dust, tie rod end

4шт.

5697A

X

CLAMP - outer, tie rod end

4шт.

7/16" X 2" NF HEX. HD. BOLT W/HEX. NUT AND LOCKWASHER

4шт.

O4271AB

X

BEARING - thrust, outer spindle (Timken #T-139)

2шт.

O6476AB

X

CLAMP - inner, tie rod end

2шт.

3/8" X 1-3/4" NF HEX. HD. BOLT W/HEX. NUT AND LOCKWASHER

2шт.

O2072FH

X

ROLL PIN - pivot pin, radius rod (1/2" x 2")

1шт.

V14619

PIN - pivot, radius rod

1шт.

V20300

OPERATOR MANUAL

NUT - tie rod end

4шт.

V20457

X

BUSHING - rear pivot, radius rod

2шт.

VT3961

X

BUSHING - wheel spindle, in extension tube

4шт.

VT3964

X

WASHER - thrust, wheel spindle

2шт.

VT4839

X

SHIM - adjusting, wheel spindle (.010")

1шт.

VT5308

CLAMP - extension tube to center tube

4шт.

5/8" X 4-1/2" NF HEX. HD. BOLT W/HEX. NUT AND LOCKWASHER

4шт.

5/8" X 5-1/2" NF HEX. HD. BOLT W/HEX. NUT AND LOCKWASHER

2шт.

2664AA

X

END - inner, notched tie rod

2шт.

1/8" STR. FITTING (Lincoln #5000)

2шт.

1/8" X 1-1/4" COTTER PIN

2шт.

Выбрано товаров: 60
