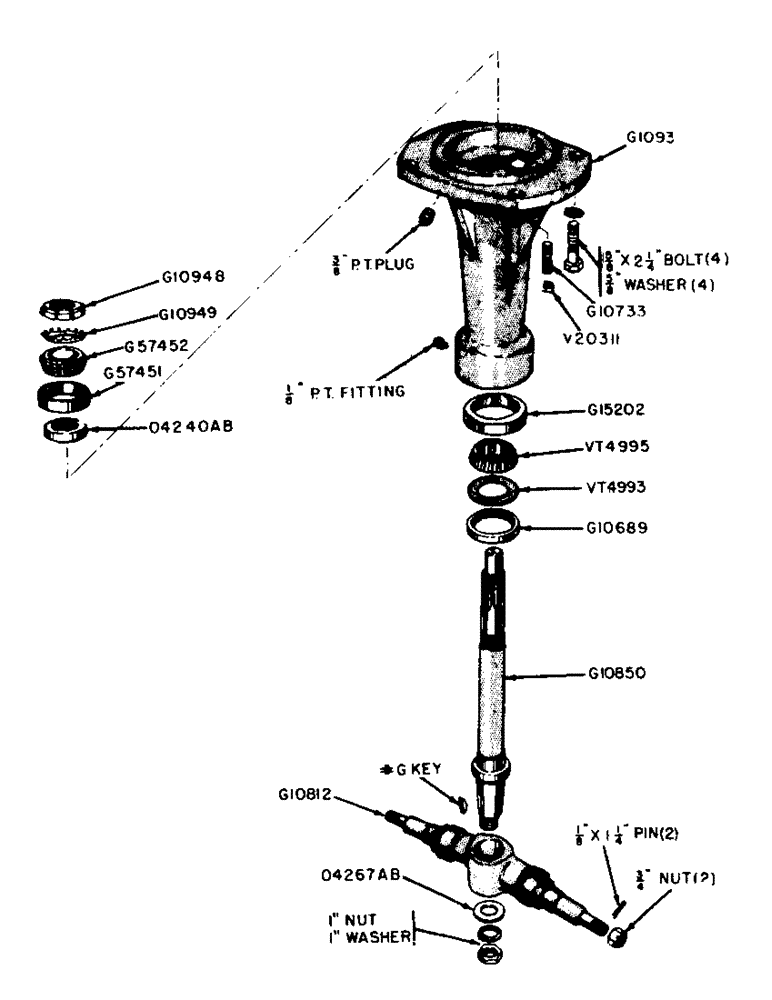

Запчасти Case IH 300-SERIES (123) - DUAL FRONT WHEEL PEDESTAL, 301-311 GENERAL PURPOSE (06) - POWER TRAIN

G1093

PEDESTAL - dual front wheel

1шт.

5/8" X 2-1/4" NC HEX. HD. BOLT W/LOCKWASHER

4шт.

1/8" STR. FITTING (Lincoln #5000)

1шт.

3/8" STD. SQ. HD. PIPE PLUG

1шт.

G10689

SEAL

OIL SEAL - lower

1шт.

G10733

SET SCREW

1шт.

G10812

SPINDLE - wheel

1шт.

3/4" NF SLOTTED HEX. NUT

2шт.

1/8" X 1-1/4" COTTER PIN

2шт.

G10850

SPINDLE

SHAFT - spindle

1шт.

1" NF HEX. NUT AND LOCKWASHER

1шт.

#G WOODRUFF KEY

1шт.

G10948

NUT

- lock, upper bearing

1шт.

G10949

LOCK WASHER

LOCK - nut, upper bearing

1шт.

G15202

CUP

- lower bearing (Timken #24720)

1шт.

G57451

BEARING, CUP

CUP - upper bearing (Timken #LM8510)

1шт.

G57452

ROLLER BEARING

CONE - upper bearing (Timken #48548)

1шт.

O4240AB

X

OIL SEAL - upper

1шт.

O4267AB

WASHER - take-up, Serial Range: spindle-shaft

1шт.

V20311

X

NUT - set screw

1шт.

VT4993

X

WASHER - thrust, lower bearing

1шт.

VT4995

X

CONE - lower bearing (Timken #24780)

1шт.
