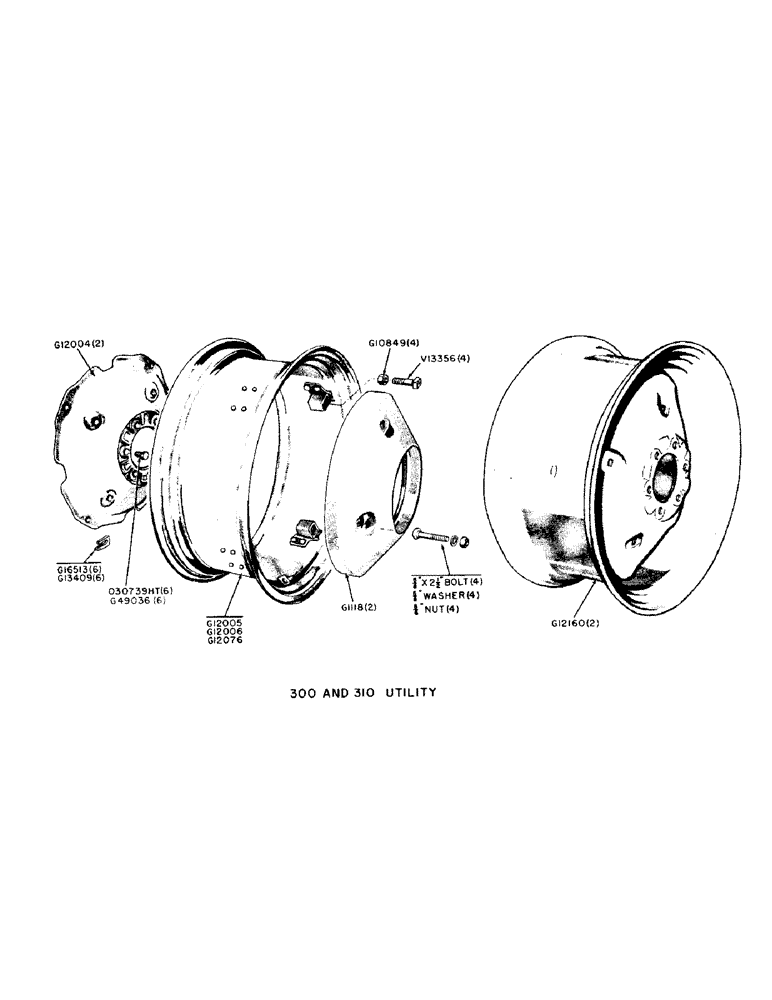

Запчасти Case IH 300-SERIES (119) - REAR WHEEL, RIM AND WEIGHTS, 300-310 UTILITY (06) - POWER TRAIN

G1118

WEIGHT - rear wheel (75 lbs.) See G12071M and G12072M

2шт.

G10849

NUT - flanged, rim bolt

8шт.

G12004

WHEEL - rear. See G12160

2шт.

G12005

RIM - rear wheel (10" x 24" tire)

2шт.

G12006

RIM - rear wheel (11" x 24" tire)

2шт.

G12071M

WEIGHT - wheel (Set of 2 w/bolts) (Mchy. Item)

1шт.

G12072M

WEIGHT - wheel (Set of 2 w/long bolts, for use as second pair) (Mchy. Item)

1шт.

G12076

RIM - rear wheel (13" x 24" tire)

2шт.

G12160

WHEEL - rear, complete with rim (11" or 13" x 24" tire) heavy duty

2шт.

G13409

SHIM - double, rim bolt

12шт.

G16513

SHIM - rim bolt

12шт.

G49036

WHEEL BOLT

BOLT - wheel to hub (See O30739 HT)

12шт.

O30739HT

X

BOLT - wheel to hub (See G49036)

12шт.

V13356

BOLT -, Serial Range: rim-wheel

8шт.
