Запчасти Case IH 300-SERIES (117) - POWER ADJUSTED REAR WHEEL AND RIM, 302-312 GENERAL PURPOSE (06) - POWER TRAIN

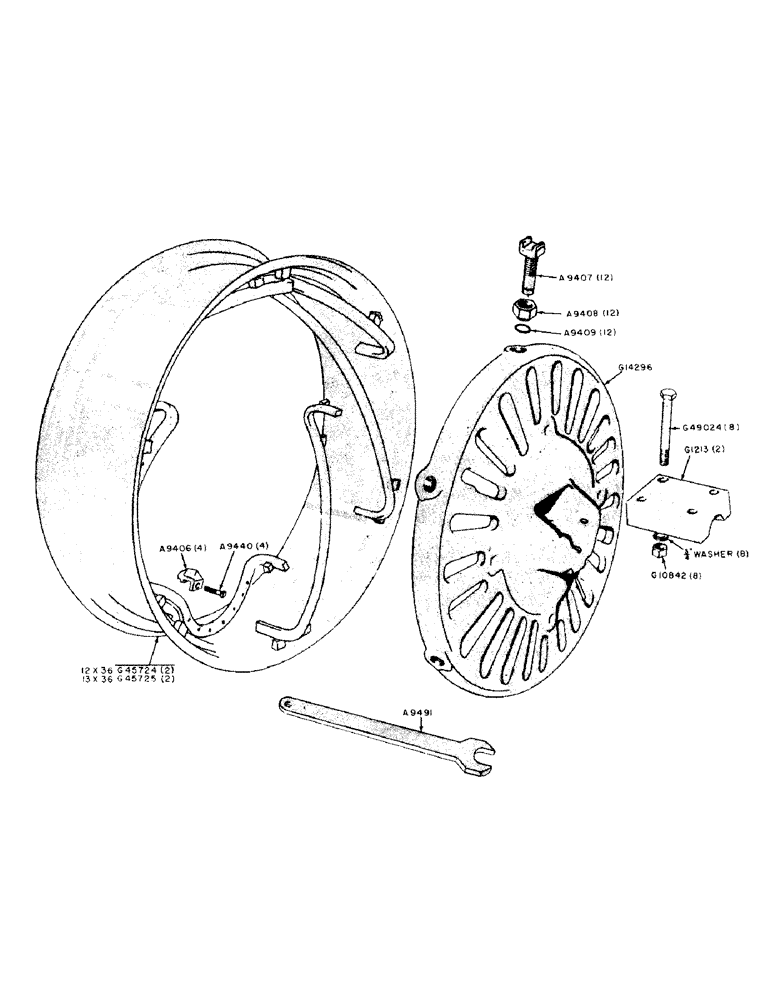

Схема запчастей Case IH 300-SERIES - (117) - POWER ADJUSTED REAR WHEEL AND RIM, 302-312 GENERAL PURPOSE (06) - POWER TRAIN

Артикул

Название

Примечание

Количество

A9406

STOP

LUG - stop, rim

4шт.

A9407

X

SCREW - jack

12шт.

A9408

NUT

- jack screw

12шт.

A9409

X

"O" RING - jack screw

12шт.

A9440

STOP

SCREW - rim stop

4шт.

A9491

WRENCH - jack screw

1шт.

G1213

CLAMP - wheel hub

2шт.

G1725

WHEEL (Use G14296)

1шт.

G10842

NUT

- hub bolt (3/4" NF)

8шт.

G14296

WHEEL (Includes matching clamp, bolt, nuts and lockwashers)

2шт.

G45724

RIM (12.3 x 36 tire)

2шт.

G45725

RIM (13.9 x 36 tire)

2шт.

G49024

BOLT - wheel hub (3/4" x 5-3/4")

8шт.

3/4" I.T. SHAKEPROOF LOCKWASHER

8шт.

Выбрано товаров: 14
