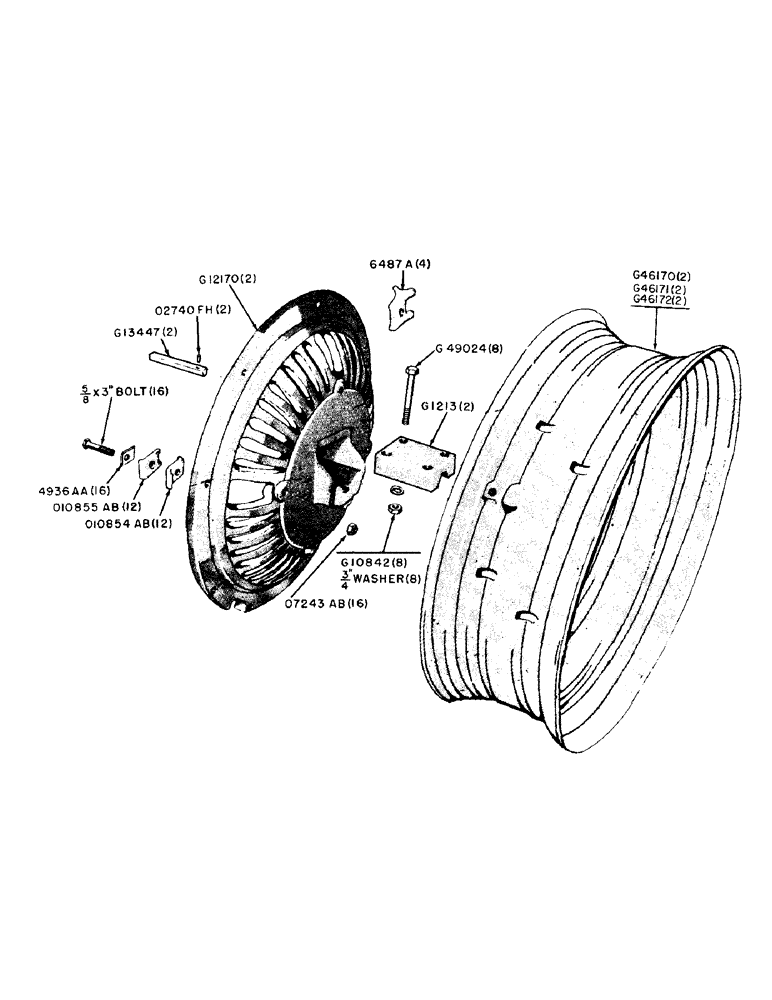

Запчасти Case IH 300-SERIES (116) - REAR WHEEL AND RIM, 302-312 GENERAL PURPOSE (06) - POWER TRAIN

G1201

WHEEL (Use G13486)

1шт.

G1213

CLAMP - wheel hub

2шт.

G10842

NUT

- hub bolt (3/4" N.F.)

8шт.

G12170

WHEEL - rear (Includes matching clamp, 4-G49024 bolts, 4-3/4" lockwashers and 4-G10842 nuts)

2шт.

G13447

KEY - wheel to axle (Includes O2740FH roll pin)

2шт.

G46170

RIM - rear wheel (W10-36 for 11.2" x 36" tire)

2шт.

G46171

RIM - rear wheel (W11-36 for 12.4" x 36" tire)

2шт.

G46172

RIM - rear wheel (W12-36 for 13" x 36" tire)

2шт.

G49024

BOLT - wheel hub (3/4" x 5-3/4")

8шт.

3/4" IT SHAKEPROOF LOCKWASHER

8шт.

6487A

X

CLAMP - rim drive

4шт.

5/8" X 3" N.C. HEX. HD. BOLT

4шт.

O7243AB

X

NUT - rim bolt

16шт.

O10854AB

X

CLAMP - rim mounting, male

12шт.

5/8" X 3" N.C. HEX. HD. BOLT

12шт.

O10855AB

X

CLAMP - rim mounting, female

12шт.

O2740FH

X

ROLL PIN - for G13447 key (1/4" x 1/2")

2шт.

4936AA

LUG - locking, rim clamp bolt

16шт.
