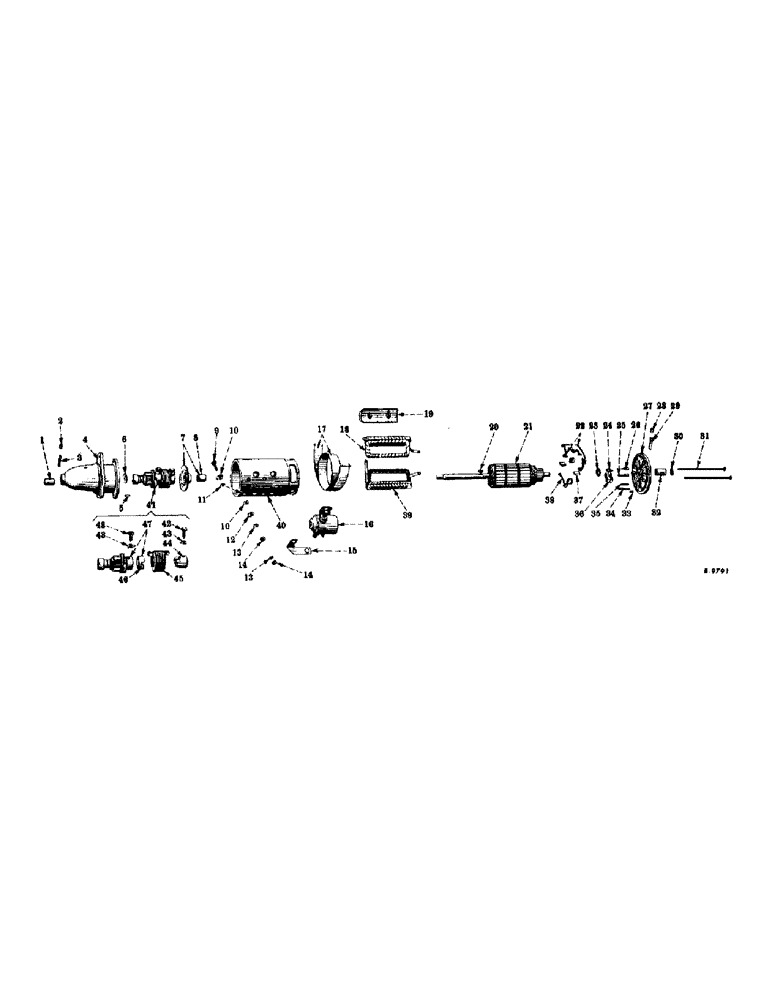

Запчасти Case IH 300 (107) - ELECTRICAL SYSTEM, CARBURETED ENGINE, CRANKING MOTOR, DELCO-REMY, 12 VOLT (06) - ELECTRICAL SYSTEMS

365806R1

MOTOR, cranking, assembly (For tractors with L.P. gas engines) (Column A) International 300 utility (Mfr's. No. 1108637)

1шт.

365806R1

MOTOR, cranking, assembly (For tractors with L.P. gas engines) (Column A) International 350 utility - (S/N 501 to 14600) (Mfr's. No. 1108637)

1шт.

368896R91

MOTOR, cranking, assembly (For tractors with L.P. gas engines) (Column B) International 350 utility - (S/N 14601 up)

1шт.

1

BUSHING, drive end housing (Mfr's. No. 826462)

1шт.

2

OILER, drive end frame w/cap and spring (Mfr's. No. 114998)

1шт.

3

WICK, oil, drive end frame (Mfr's. No. 802691)

1шт.

4

HOUSING, drive end, w/bushing, 826462, oiler, 114998 and wick, 802691 (Mfr's. No. 1935716)

1шт.

5

PIN, dowel, drive end housing (Mfr's. No. 809593)

1шт.

6

WASHER, space, drive end (1/16" thick x 63/64" O.D.) (Mfr's. No. 833602)

1шт.

7

PLATE, center bearing w/bushing (Mfr's. No. 1938762) [B]

1шт.

7

PLATE, center bearing w/bushing (Mfr's. No. 1915102) [A]

1шт.

SCREW, center bearing attaching (Mfr's. No. 1904370)

2шт.

WASHER, lock, center bearing attaching screw (Mfr's. No. 1880781)

2шт.

8

NSS

NOT SOLD SEPARAT

BUSHING, center bearing (Order 1915102)

1шт.

9

STUD, terminal (Mfr's. No. 826938)

1шт.

10

WASHER, insulating, terminal stud (3/4" O.D.) (Mfr's. No. 1861076)

1шт.

11

WASHER, insulating, terminal stud (9/16" O.D.) (Mfr's. No. 1904669)

2шт.

12

WASHER, plain, cd-pltd., 3/8" I.D. x 11/16" O.D. x 1/32" (Mfr's. No. 812622)

1шт.

13

120381

WASHER

lock, light, cd-pltd., 3/8"

2шт.

14

NUT, terminal stud (Mfr's. No. 805258)

2шт.

15

CONNECTOR, solenoid switch (Mfr's. No. 1903905)

1шт.

280136

NUT,3/8"-16, G8

Machine screw, (On solenoid switch terminal) 3/8"-16, G8

1шт.

120381

WASHER

lock, light, cd-pltd., 3/8" (Solenoid switch terminal)

1шт.

16

SWITCH, solenoid, assembly, Composed Of (Mfr's. No. 1467) [A]

1шт.

NUT (Mfr's. No. 120622)

1шт.

NUT (Mfr's. No. 134566)

2шт.

NSS

NOT SOLD SEPARAT

SWITCH

1шт.

WASHER (Mfr's. No. 120381)

2шт.

WASHER (Mfr's. No. 1904615)

1шт.

16

SWITCH, magnetic, assembly (Not illustrated) Composed Of (Mfr's. No. 1119970) [B]

1шт.

NUT (Mfr's. No. 120622)

2шт.

NUT (Mfr's. No. 134566)

2шт.

NSS

NOT SOLD SEPARAT

SWITCH

1шт.

WASHER (Mfr's. No. 120381)

2шт.

WASHER (Mfr's. No. 1904615)

2шт.

120622

NUT,#8-32

2шт.

280136

NUT,3/8"-16, G8

Machine screw, (On solenoid switch terminal) 3/8"-16, G8

2шт.

SCREW, solenoid switch mounting (Mfr's. No. 1916529)

2шт.

120381

WASHER

lock, light, cd-pltd., 3/8" (Solenoid switch terminal)

1шт.

WASHER, lock, terminal nut (No. 8) (Mfr's. No. 1904615) [A]

1шт.

WASHER, lock, terminal nut (No. 8) (Mfr's. No. 1904615) [B]

2шт.

17

BAND, cover, w/nut, 120614 and screw, 132926 (Mfr's. No. 1886923)

1шт.

120614

NUT,Hex, #10 - 32

NUT, hex., cd-pltd., No. 18-32NF

1шт.

132926

SCREW,Sl Rnd Hd, #10 - 32 x 1/4"

slotted-rd-hd., cd-pltd., No. 10-32NF x 1-1/4"

1шт.

18

COIL, upper, field (Mfr's. No. 1927145)

1шт.

19

SHOE, pole (Mfr's. No. 1887021)

4шт.

SCREW, pole shoe (Mfr's. No. 1881869)

8шт.

20

124546

WOODRUFF KEY,#6, 5/32" x 5/8", HT

1шт.

21

ARMATURE (Mfr's. No. 1885520)

1шт.

22

CABLE, brush and field connector (Mfr's. No. 819362)

1шт.

132892

SCREW,Sl Rnd Hd, #10 - 32 x 1/4"

slotted-rd-hd., cd-pltd., No. 10-32NF x 1/4"

2шт.

120217

LOCK WASHER,#10

WASHER, LOCK, #10

2шт.

23

WASHER, space, commutator end (Mfr's. No. 833602)

1шт.

24

SPRING, brush (Mfr's. No. 813521)

4шт.

25

PIN, brush holder hinge, w/insulation (Mfr's. No. 812016)

2шт.

26

PIN, brush holder stop, w/insulation (Mfr's. No. 812015)

2шт.

27

FRAME, commutator end, assembly, Composed Of (Mfr's. No. 1868714)

1шт.

BUSHING (Mfr's. No. 1867610)

1шт.

NSS

NOT SOLD SEPARAT

FRAME

1шт.

OILER (Mfr's. No. 114998)

1шт.

PIN (Mfr's. No. 809062)

1шт.

PIN (Mfr's. No. 812015)

2шт.

PIN (Mfr's. No. 812016)

2шт.

PIN (Mfr's. No. 817313)

2шт.

PIN (Mfr's. No. 817314)

2шт.

PLUG (Mfr's. No. 810819)

1шт.

WICK (Mfr's. No. 802694)

1шт.

28

OILER, commutator end frame w/cap and spring (Mfr's. No. 114998)

1шт.

29

WICK, oil, commutator end frame (Mfr's. No. 802694)

1шт.

30

PLUG, expansion, commutator end frame (Mfr's. No. 810819)

1шт.

31

BOLT, thru (Mfr's. No. 1887034)

2шт.

492-11025

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

2шт.

32

BUSHING, commutator end frame (Mfr's. No. 1867610)

1шт.

33

PIN, dowel, commutator end frame (Mfr's. No. 809062)

1шт.

34

PIN, brush holder hinge (Mfr's. No. 817313)

2шт.

35

PIN, brush holder stop (Mfr's. No. 817314)

2шт.

36

HOLDER, brush (Mfr's. No. 810226)

4шт.

37

BRUSH (Mfr's. No. 1886643)

4шт.

115903

SCREW

slotted-rd-hd., blued, No. 6-32NC x 1/2"

4шт.

131044

LOCK WASHER

Lock, #6

4шт.

38

CABLE, brush ground (Mfr's. No. 813554)

2шт.

122159

HOUSING

SCREW, slotted-rd-hd., cd-pltd., No. 8-32NC x 1/4"

2шт.

121841

LOCK WASHER,#8

WASHER, LOCK, #8

2шт.

39

COIL, lower, field (Mfr's. No. 1927144)

1шт.

40

NSS

NOT SOLD SEPARAT

FRAME, (Order cranking motor, assembly)

1шт.

41

DRIVE, motor, assembly, Composed Of (Mfr's. No. 1864682)

1шт.

GEAR AND SHAFT (Mfr's. No. 1864683)

1шт.

HEAD (Mfr's. No. 1850037)

1шт.

SCREW (Mfr's. No. 1850039)

1шт.

SCREW (Mfr's. No. 1850040)

1шт.

SPRING (Mfr's. No. 1853477)

1шт.

WASHER (Mfr's. No. 805057)

2шт.

42

SCREW, motor drive spring (Head end) (Mfr's. No. 1850040)

1шт.

43

WASHER, lock, motor drive spring screw (Mfr's. No. 805057)

2шт.

44

HEAD, motor drive (Mfr's. No. 1850037)

1шт.

45

SPRING, motor drive (Mfr's. No. 1853477)

1шт.

46

SLEEVE, motor drive (Mfr's. No. 1849782)

1шт.

47

GEAR (10 teeth) and shaft, motor drive w/sleeve, 1849782 and spring (Mfr's. No. 1864683)

1шт.

48

SCREW, motor drive spring (Shaft end) (Mfr's. No. 1850039)

1шт.
