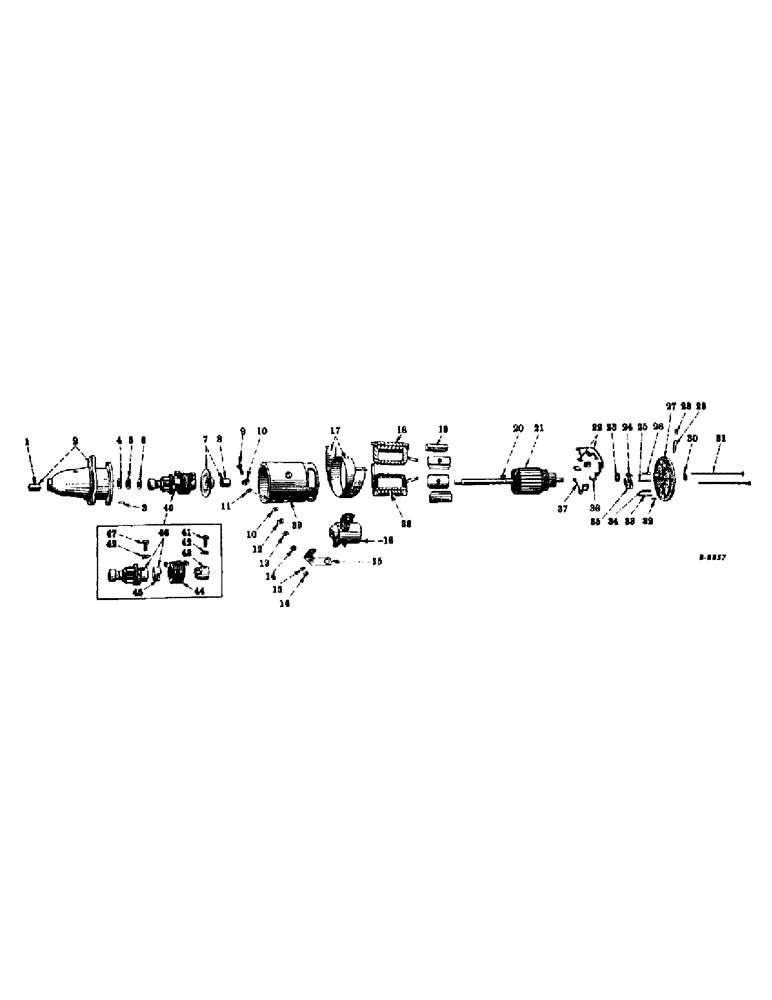

Запчасти Case IH 300 (103) - ELECTRICAL SYSTEM, CARBURETED ENGINE, CRANKING MOTOR, DELCO-REMY, 6 AND 12 VOLT (06) - ELECTRICAL SYSTEMS

362488R91

MOTOR, cranking, assembly (6 volt) (For tractors equipped with distillate or kerosene and gasoline burning engines) (Column A) (Mfr's. No. 1108041)

1шт.

.

104217A2R

REMAN-STARTER

Remanufactured Starter 6 volt, intertia

1шт.

.

104217A1C

CORE-STARTER

Return Number, Starter 6 volt, inertia

1шт.

368871R91

SPARE PART MOTOR, cranking assembly (12 volt) (For tractors equipped with distillate or kerosene and gasoline burning engines) (Column B) (Mfr's. No. 1108174)

1шт.

1

BUSHING, drive housing (Mfr's. No. 810620)

1шт.

2

HOUSING, drive, w/bushing, 810620 (Mfr's. No. 1931507)

1шт.

3

PIN, dowel, drive end (Mfr's. No. 809593)

1шт.

4

WASHER, space, drive end (1/16" thick x 63/64" O.D.) (Mfr's. No. 833602)

1шт.

4

WASHER, space, drive end (1/16" thick x 1-1/16" O.D.) (Mfr's. No. 809815)

1шт.

6

WASHER, space, drive end (3/32" thick x 1-1/16" O.D.) (Mfr's. No. 1849774)

1шт.

7

PLATE, center bearing, w/bushing (Mfr's. No. 1838667)

1шт.

.

SCREW, machine, slotted-rd-hd., cd-pltd., No. 10-32NF x 3/8" (Mfr's. No. 132900)

2шт.

.

WASHER, lock, center bearing attaching screw (Mfr's. No. 1880781)

2шт.

8

NSS

NOT SOLD SEPARAT

BUSHING, center bearing (Order 1838667)

1шт.

9

STUD, terminal (Mfr's. No. 1848837)

1шт.

10

WASHER, insulating, terminal stud (3/4" O.D.) (Mfr's. No. 1861076)

2шт.

11

WASHER, insulating, terminal stud (9/16" O.D.) (Mfr's. No. 1904669)

2шт.

12

WASHER, plain, cd-pltd., 3/8" I.D. x 11/16" O.D. x 1/32" (Mfr's. No. 812622)

1шт.

13

WASHER, lock, light, cd-pltd., 3/8" (Mfr's. No. 120381)

2шт.

14

NUT, terminal stud (5/32" thk.) (Mfr's. No. 805258)

2шт.

15

CONNECTOR, solenoid switch (Mfr's. No. 1931505)

1шт.

.

NUT, hex., machine screw, cd-pltd., 3/8-16NC (Solenoid switch terminal) (Mfr's. No. 134566)

1шт.

.

WASHER, lock, ligth, cd-pltd., 3/8" (Solenoid switch terminal) (Mfr's. No. 120381)

1шт.

.

WASHER, plain, 3/8" I.D. x 11/16" O.D. x 1/32" (Solenoid switch terminal) (Mfr's. No. 812622)

1шт.

16

SWITCH, solenoid, assembly, Composed Of (Mfr's. No. 1465) [A]

1шт.

.

NUT (Mfr's. No. 120622)

1шт.

.

NUT (Mfr's. No. 134566)

2шт.

.

142364HA

SWITCH

SWITCH

1шт.

.

WASHER (Mfr's. No. 120381)

2шт.

.

WASHER (Mfr's. No. 812622)

2шт.

.

WASHER (Mfr's. No. 1904615)

1шт.

16

SWITCH, solenoid, assembly, Composed Of (Mfr's. No. 1119970) [B]

1шт.

.

NUT (Mfr's. No. 120622)

1шт.

.

NUT (Mfr's. No. 134566)

2шт.

.

NSS

NOT SOLD SEPARAT

SWITCH

1шт.

.

WASHER (Mfr's. No. 120381)

2шт.

.

WASHER (Mfr's. No. 1904615)

1шт.

.

NUT, hex., machine, screw, cd-pltd., No. 8-32NC (Mfr's. No. 120622)

2шт.

.

NUT, hex., machine screw, cd-pltd., 3/8-16NC (Solenoid switch terminal) (Mfr's. No. 134566)

2шт.

.

SCREW, solenoid switch mounting (Mfr's. No. 1916529)

2шт.

.

WASHER, lock, medium, cd-pltd., 1/4" (Mfr's. No. 120380)

2шт.

.

WASHER, lock, light, cd-pltd., 3/8" (Solenoid switch terminal) (Mfr's. No. 120381)

1шт.

.

WASHER, plain, 3/8" I.D. x 11/16" O.D. x 1/32" (Solenoid switch terminal) (Mfr's. No. 812622) [A]

1шт.

.

WASHER, lock, terminal nut (No. 8) (Mfr's. No. 1904615)

1шт.

17

BAND, cover, w/nut, 120614 and screw, 132926 (Mfr's. No. 1886923)

1шт.

.

NUT, hex., cd-pltd., No. 10-32NF (Mfr's. No. 120614)

1шт.

.

SCREW, slotted-rd-hd., cd-pltd., No. 10-32NF x 1-1/4" (Mfr's. No. 132926)

1шт.

18

COIL, field (Upper) (Mfr's. No. 819688) [A]

1шт.

18

COIL, field, assembly (Mfr's. No. 825210) [B]

1шт.

19

SHOE, pole (Mfr's. No. 810601)

4шт.

.

SCREW, pole shoe (Mfr's. No. 1881869)

4шт.

20

KEY, woodruff, No. 6 (Mfr's. No. 124546)

1шт.

21

ARMATURE (Mfr's. No. 818002)

1шт.

22

LEAD, brush and field connector (Mfr's. No. 1929901) [B]

2шт.

22

LEAD, brush and field connector (Mfr's. No. 819362) [A]

2шт.

.

SCREW, slotted-rd-hd., cd-pltd., No. 10-32NF x 1/4" (Mfr's. No. 132892)

2шт.

.

WASHER, lock, medium, No. 10 (Mfr's. No. 106497)

2шт.

23

WASHER, space, commutator end (Mfr's. No. 833602)

1шт.

24

SPRING, brush (Mfr's. No. 813521)

4шт.

25

PIN, brush holder hinge, w/insulation (Mfr's. No. 812016)

2шт.

26

PIN, brush holder hinge, w/insulation (Mfr's. No. 812015)

2шт.

27

FRAME, commutator end, assembly, Composed Of (Mfr's. No. 1850447)

1шт.

.

NSS

NOT SOLD SEPARAT

FRAME

1шт.

.

OILER (Mfr's. No. 1880642)

1шт.

.

PIN (Mfr's. No. 809062)

1шт.

.

PIN (Mfr's. No. 812015)

2шт.

.

PIN (Mfr's. No. 812016)

2шт.

.

PIN (Mfr's. No. 817313)

2шт.

.

PIN (Mfr's. No. 817314)

2шт.

.

PLUG (Mfr's. No. 1865182)

1шт.

.

WICK (Mfr's. No. 802694)

1шт.

28

OILER, commutator, w/cap and spring (Mfr's. No. 1880642)

1шт.

29

WICK, oil, commutator end (Mfr's. No. 802694)

1шт.

30

PLUG, expansion, commutator end frame (Mfr's. No. 1865182)

1шт.

31

BOLT, thru (Mfr's. No. 809053)

2шт.

.

WASHER, lock, medium, cd-pltd., 1/4" (Mfr's. No. 120380)

2шт.

32

PIN, dowel, commutator end (Mfr's. No. 809062) (Mfr's. No. 809062)

1шт.

33

PIN, brush holder hinge (Mfr's. No. 817313)

2шт.

34

PIN, brush holder stop (Mfr's. No. 817314)

2шт.

35

HOLDER, brush (Mfr's. No. 810226)

4шт.

36

BRUSH (Mfr's. No. 828488) [B]

4шт.

36

BRUSH (Mfr's. No. 811553) [A]

4шт.

.

SCREW, slotted-rd-hd., blued, No. 6-32NC x 1/2" (Mfr's. No. 115903)

4шт.

37

LEAD, brush ground (Mfr's. No. 813554)

2шт.

.

SCREW, slotted-rd-hd., cd-pltd., No. 8-32NC x 1/4" (Mfr's. No. 122159)

2шт.

.

WASHER, lock, cd-pltd., No. 8 (Mfr's. No. 121841)

2шт.

38

COIL, field (Lower) (Mfr's. No. 819689)

1шт.

39

FRAME (Not servied separately - order Cranking Motor, assembly)

1шт.

40

DRIVE, motor, assembly, Composed Of (Mfr's. No. 1868804)

1шт.

.

GEAR AND SHAFT (Mfr's. No. 1855629)

1шт.

.

HEAD (Mfr's. No. 1848530)

1шт.

.

SCREW (Mfr's. No. 1850810)

1шт.

.

SCREW (Mfr's. No. 1850811)

1шт.

.

SPRING (Mfr's. No. 1860639)

1шт.

.

WASHER (Mfr's. No. 805057)

2шт.

41

SCREW, motor drive spring (Mfr's. No. 1850811)

1шт.

42

WASHER, lock, drive spring screw (Mfr's. No. 805057)

2шт.

43

HEAD, motor drive (Mfr's. No. 1848530)

1шт.

44

SPRING, motor drive (Mfr's. No. 1860639)

1шт.

45

SLEEVE, motor drive (Mfr's. No. 1849782)

1шт.

46

GEAR (10 teeth) and shaft, motor drive, w/sleeve, 1849782 and spring (Mfr's. No. 1855629)

1шт.

47

SCREW, motor drive spring (Mfr's. No. 1850810)

1шт.
