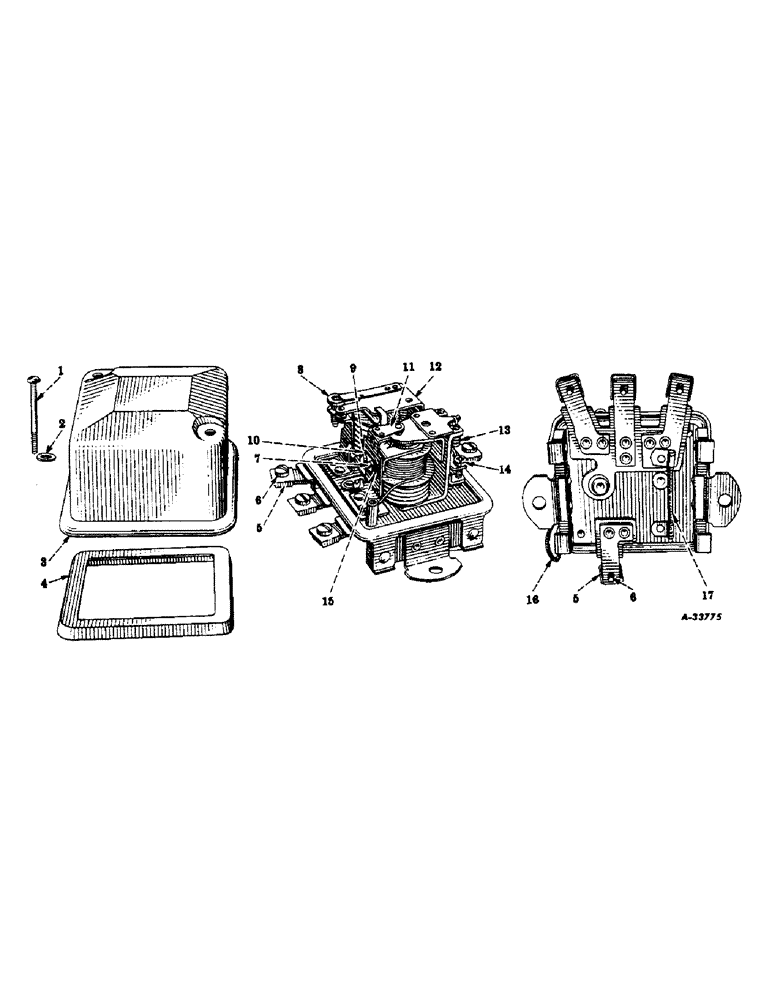

Запчасти Case IH 300 (102) - ELECTRICAL SYSTEM, CARBURETED ENGINE, VOLTAGE REGULATOR, DELCO-REMY (06) - ELECTRICAL SYSTEMS

360898R91

REGULATOR

voltage assembly (6 volt) (Column A) (Mfr's. No. 1118780)

1шт.

360899R91

REGULATOR

voltage assembly (12 volt) (Column B) (Mfr's. No. 1118779)

1шт.

1

SCREW, cover attaching (Mfr's. No. 1927982)

2шт.

2

WASHER, insulating, cover attaching screw (Mfr's. No. 1922996)

2шт.

3

COVER (Mfr's. No. 1927980)

1шт.

4

GASKET, cover (Mfr's. No. 1927981)

1шт.

5

CLAMP, terminal (Mfr's. No. 1868137)

4шт.

6

SCREW, terminal (Mfr's. No. 1864099)

4шт.

7

SCREW, current-voltage regulator contact attaching (Mfr's. No. 1878516)

2шт.

8

SCREW, adjusting, cut-out relay armature (Mfr's. No. 1912159)

1шт.

9

WASHER, insulating, current-voltage regulator contact attaching screw (Mfr's. No. 1878507)

2шт.

10

WASHER, lock, current-voltage regulator contact attaching screw (Mfr's. No. 1878505)

1шт.

11

CONTACT AND SUPPORT, current-voltage regulator (Mfr's. No. 1878517)

1шт.

12

ARMATURE, cut-out relay (Mfr's. No. 1878780)

1шт.

SCREW, cut-out relay armature (Mfr's. No. 454431)

2шт.

WASHER, lock, cut-out, relay armature attaching screw (Mfr's. No. 1904377)

2шт.

13

SPRING, current-voltage regulator armature (Mfr's. No. 1912176)

1шт.

14

SCREW, current-voltage regulator armature adjusting (Mfr's. No. 1922408)

1шт.

15

INSULATOR, current-voltage regulator contact attaching screw (Mfr's. No. 1922599)

1шт.

16

LEAD, ground (Mfr's. No. 1927975)

1шт.

17

RESISTOR, "F" terminal to ground (Mfr's. No. 1910183) [A]

1шт.

17

RESISTOR, "F" terminal to ground (12 volt) (Mfr's. No. 1910174) [B]

1шт.
