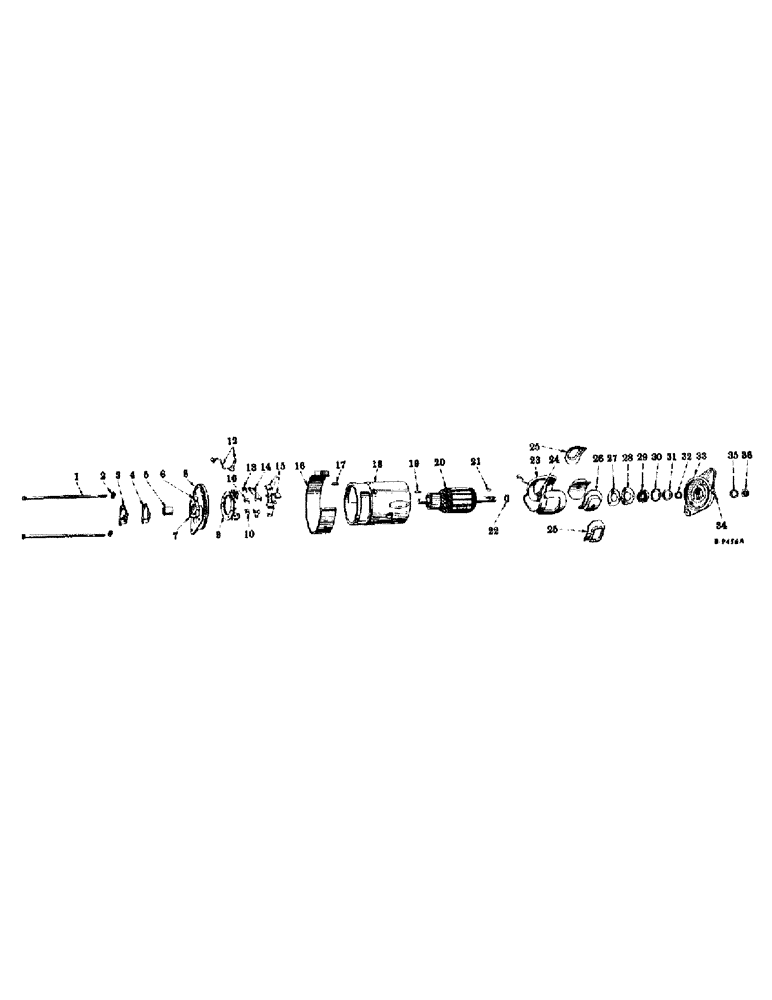

Запчасти Case IH 300 (099) - ELECTRICAL SYSTEM, CARBURETED ENGINE, GENERATOR, DELCO-REMY, 6 AND 12 VOLT (06) - ELECTRICAL SYSTEMS

354237R91

GENERATOR, (6 volt) assembly, International 300 utility tractor (For gasoline burning engines) (Column A) (S/N 501 to 2689) (Mfr's. No. 1100501)

1шт.

362657R91

GENERATOR, (6 volt) assembly (For distillate or gasoline engines) (Column B) (Mfr's. No. 1100531)

1шт.

362657R91

GENERATOR, (6 volt) assembly (For distillate or gasoline burning engines) (Column B) International 300 utility tractor (S/N 2690 up) (Mfr's. No. 1100531)

1шт.

362657R91

GENERATOR, (6 volt) assembly (For distillate or gasoline burning engines) (Column B) International 350 utility tractor (S/N 501 up) (Mfr's. No. 1100531)

1шт.

363727R91

GENERATOR, (12 volt) assembly (For liquefied petroleum gas burning engines) (Column C) International 350 series utility tractor (S/N, Serial Range: 501-14600)

1шт.

1

BOLT, thru (Mfr's. No. 815018)

2шт.

2

WASHER, lock, heavy, cd-pltd., 5/16" (Mfr's. No. 120638)

2шт.

3

PLATE, cover, commutator end frame (Mfr's. No. 820524)

1шт.

SCREW, commutator end frame cover plate (Mfr's. No. 1886496)

3шт.

WASHER, lock, medium, cd-pltd., No. 8 (Mfr's. No. 121841)

3шт.

4

GASKET, commutator end frame cover plate (Mfr's. No. 817220)

1шт.

5

BUSHING, commutator end (Mfr's. No. 812823)

1шт.

6

OILER, commutator end w/cap and spring (Mfr's. No. 1880635)

1шт.

WICK, commutator end oiler (Mfr's. No. 804076)

1шт.

7

PLUG, commutator end oiler wick (Mfr's. No. 1911097)

1шт.

8

FRAME, commutator end, assembly, Composed Of (Mfr's. No. 1913564)

1шт.

BUSHING (Mfr's. No. 812823)

1шт.

NSS

NOT SOLD SEPARAT

FRAME

1шт.

OILER (Mfr's. No. 1880635)

1шт.

PIN (Mfr's. No. 809062)

1шт.

PLUG (Mfr's. No. 1911097)

1шт.

WICK (Mfr's. No. 804076)

1шт.

9

PLATE, brush, w/three brush holders (Mfr's. No. 1913737) [A]

1шт.

9

PLATE, brush, w/three brush holders (Mfr's. No. 1913565) [B] [C]

1шт.

SCREW, brush plate attaching (Mfr's. No. 1886496)

3шт.

WASHER, lock, medium, cd-pltd., No. 8 (Mfr's. No. 121841)

3шт.

10

SPRING, brush main (Mfr's. No. 1850760)

2шт.

12

POLE, armature terminal (Includes lead, stud, 1858751 and terminal) (Mfr's. No. 1858754)

1шт.

BUSHING, insulating, terminal stud (Mfr's. No. 1885090)

1шт.

NUT, hex., cd-pltd., No. 12-24NC (Mfr's. No. 121743)

2шт.

STUD, armature terminal (Mfr's. No. 1858751)

1шт.

WASHER, lock, terminal stud (Mfr's. No. 1904661)

2шт.

WASHER, terminal stud (Mfr's. No. 1881409)

1шт.

WASHER, insulating, terminal stud (Mfr's. No. 1858753)

1шт.

13

SPRING, brush, third (Mfr's. No. 1850767)

1шт.

14

HOLDER, brush (Mfr's. No. 1850759)

3шт.

WASHER, plain, brush holder spacer (Mfr's. No. 1857412)

3шт.

15

BRUSH PACKAGE

1шт.

SCREW, slotted-rd-hd., cd-pltd., No. 6-32NC x 1/4" (Mfr's. No. 132688)

1шт.

WASHER, lock, brush lead attaching screw (Mfr's. No. 1904377)

1шт.

16

BAND, cover w/nut, 120614 and screw 132926 (Mfr's. No. 1872638)

1шт.

SCREW, machine, slotted-rd-hd., cd-pltd., No. 10-32NF x 1-1/4" (Mfr's. No. 132926)

1шт.

NUT, hex., cd-pltd., No. 10-32NF (Mfr's. No. 120614)

1шт.

17

PIN, dowel, commutator end frame (Mfr's. No. 809062)

1шт.

18

NSS

NOT SOLD SEPARAT

FRAME

1шт.

19

PIN, dowel, drive end frame (Mfr's. No. 809593)

1шт.

20

ARMATURE (Mfr's. No. 1913560) [A]

1шт.

20

ARMATURE (Mfr's. No. 1921351) [B]

1шт.

20

ARMATURE (Mfr's. No. 817807) [C]

1шт.

21

KEY, woodruff, alloy-stl., No. 5 (Drive end) (Mfr's. No. 124545)

1шт.

22

WASHER, space, drive end (Mfr's. No. 809945)

1шт.

23

COIL SET, field w/insulator, 1914491, stud, 1858751 and terminal (Mfr's. No. 1913554) [A] [B]

1шт.

23

COIL SET, field w/insulator, 1914491, stud, 1858751 and terminal (Mfr's. No. 1922700) [C]

1шт.

24

STUD, field terminal (Mfr's. No. 1858751)

1шт.

BUSHING, insulating, terminal stud (Mfr's. No. 1885090)

1шт.

NUT, hex., cd-pltd., No. 12-24NC (Mfr's. No. 121743)

2шт.

WASHER, lock, terminal stud (Mfr's. No. 1904661)

2шт.

WASHER, terminal stud (Mfr's. No. 1881409)

1шт.

WASHER, insulating, terminal stud (Mfr's. No. 1858753)

1шт.

25

INSULATOR, field coil (Mfr's. No. 1914491)

2шт.

26

SHOE, pole (Mfr's. No. 1914618)

2шт.

SCREW, pole shoe (Mfr's No. 1843646)

2шт.

27

PLATE, ball bearing retainer (Mfr's. No. 1911263)

1шт.

SCREW, bearing retainer plate (Mfr's. No. 1904370)

3шт.

WASHER, lock, bearing, retainer plate screw (Mfr's. No. 1880781)

3шт.

28

GASKET, ball bearing retainer plate (Mfr's. No. 1912008)

1шт.

29

BEARING, ball (Drive end) (Mfr's. No. 954378)

1шт.

30

RETAINER, drive end felt washer (Mfr's. No. 819104)

1шт.

31

WASHER, felt, drive end (Mfr's. No. 809961)

1шт.

32

SPACER, pulley (Mfr's. No. 817224)

1шт.

33

FRAME, drive end, w/oiler, 1880641 (Mfr's. No. 1873830)

1шт.

34

OILER, drive end bearing w/cap and spring (Mfr's. No. 1880641)

1шт.

35

WASHER, lock, drive end shaft nut (Mfr's. No. 804000)

1шт.

36

NUT, drive end shaft (Mfr's. No. 1914308) [A]

1шт.

36

NUT, drive end shaft (Mfr's. No. 806915) [B] [C]

1шт.
