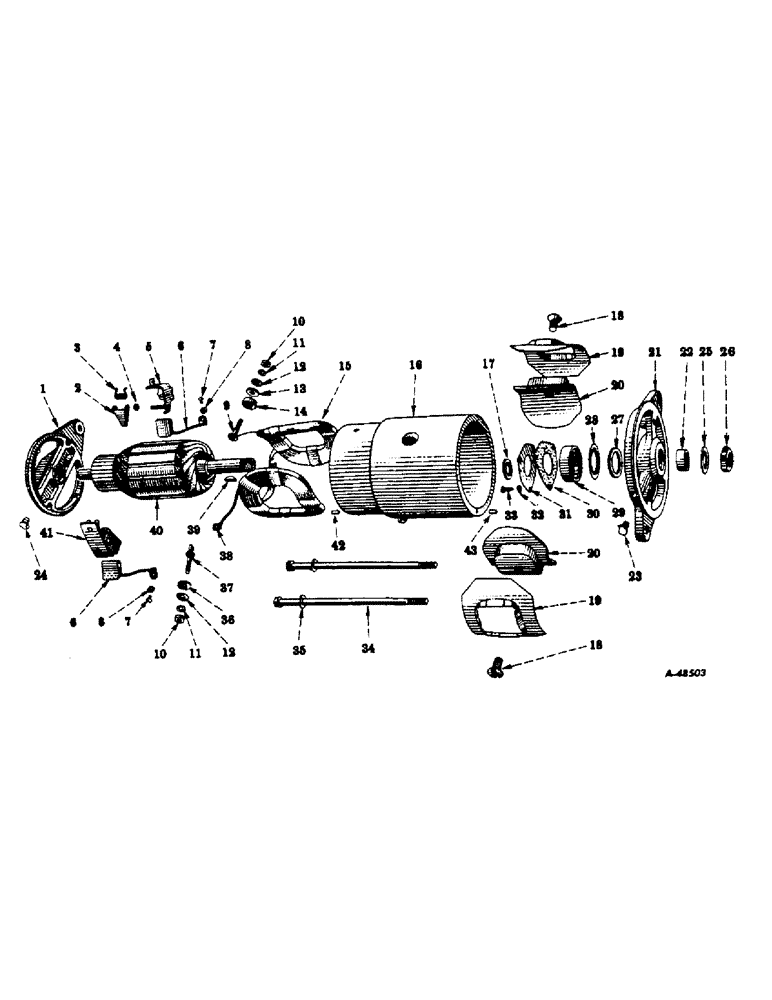

Запчасти Case IH 300 (097) - ELECTRICAL SYSTEM, CARBURETED ENGINE, GENERATOR, DELCO-REMY, 12 VOLT (06) - ELECTRICAL SYSTEMS

282653R91

GENERATOR, assembly (12 volt) (Mfr's. No. 1100305)

1шт.

1

FRAME, commutator end, w/oiler 1880635, pin, 809062 and wick, 804080 (Mfr's. No. 1927451)

1шт.

2

ARM, brush (Mfr's. No. 1878183)

2шт.

3

SPRING, brush (Mfr's. No. 1916324)

2шт.

4

WASHER, spacer brush arm (Mfr's. No. 1904368)

2шт.

5

HOLDER, ground brush (Mfr's. No. 1922288)

1шт.

NUT, hex., cd-pltd., No. 12-24NC (Mfr's. No. 121743)

1шт.

SCREW, mach., rd-hd., cd-pltd., No. 12-24NC x 5/8" (Mfr's. No. 132979)

1шт.

WASHER, lock, cd-pltd., No. 12 (Mfr's. No. 131184)

1шт.

6

BRUSH (Mfr's. No. 1923295)

2шт.

7

SCREW, slotted-rd-hd., cd-pltd., No. 6-32NC x 1/4" (Mfr's. No. 132688)

2шт.

8

WASHER, lock, brush lead attaching screw (Mfr's. No. 1904377)

2шт.

9

STUD, field terminal (Mfr's No. 1921860)

1шт.

10

NUT, hex., cd-pltd., No. 12-24NC

4шт.

11

WASHER, lock, field terminal stud (Mfr's. No. 1904661)

4шт.

12

WASHER, terminal stud (Mfr's. No. 1811409)

2шт.

13

WASHER, insulating, terminal stud (Mfr's. No. 1858753)

1шт.

14

BUSHING, field terminal (Mfr's. No. 1885090)

1шт.

15

COIL SET, field (Mfr's. No. 1923625)

1шт.

16

Not Serviced Separately

1шт.

17

WASHER, space, drive end (Mfr's. No. 809945)

1шт.

18

SCREW, pole shoe (Mfr's. No. 1843646)

2шт.

19

INSULATOR, field coil (Mfr's. No. 1914491)

2шт.

20

SHOE, pole (Mfr's. No. 1914618)

2шт.

21

FRAME, drive end, w/oiler, 1880641 (Mfr's. No. 1910404)

1шт.

22

COLLAR, space, drive end (Mfr's. No. 1858603)

1шт.

23

OILER, drive end bearing, w/cap and spring (Mfr's. No. 1880641)

1шт.

WICK, oiler (Mfr's. No. 823551)

1шт.

24

OILER, commutator end, w/cap and spring (Mfr's. No. 1880635)

1шт.

WICK, oiler (Mfr's. No. 804080)

1шт.

25

WASHER, lock, armature shaft nut (Mfr's. No. 804000)

1шт.

26

NUT, armature shaft (Mfr's. No. 806915)

1шт.

27

WASHER, felt, drive end (Mfr's. No. 809961)

1шт.

28

RETAINER, drive end, felt washer (Mfr's. No. 819104)

1шт.

29

BEARING BALL (Drive end) (Mfr's. No. 907503)

1шт.

30

GASKET, ball bearing retainer plate (Mfr's. No. 1912008)

1шт.

31

PLATE, ball bearing retainer (Mfr's. No. 1911263)

1шт.

32

WASHER, lock, retainer plate screw (Mfr's. No. 1880781)

3шт.

33

WASHER, lock, retainer plate screw (Mfr's. No. 1904370)

3шт.

34

BOLT, thru (Mfr's. No. 815018)

2шт.

35

WASHER, lock, heavy, cd-pltd., 5/16" (Mfr's. No. 120638)

2шт.

36

WASHER, insulating, terminal stud (Mfr's. No. 1921362)

1шт.

37

POLE, armature terminal (Includes lead, stud, 1921860 and terminal) (Mfr's. No. 1921369)

1шт.

38

CLIP, terminal to brush (Mfr's. No. 200382)

1шт.

39

KEY, woodruff, ni-stl., No. 5 (Mfr's. No. 124545)

1шт.

40

ARMATURE (Mfr's. No. 817807)

1шт.

CUP, felt retainer, commutator end (Mfr's. No. 1927448)

1шт.

WASHER, felt, commutator end (Mfr's. No. 1927447)

1шт.

41

HOLDER, brush (Mfr's. No. 1922289)

1шт.

NUT, hex., cd-pltd., No. 12-24 NC (Mfr's. No. 121743)

1шт.

SCREW, machine, rd-hd., cd-plted., No. 12-24NC x 5/8" (Mfr's. No. 132979)

1шт.

WASHER, lock, cd-pltd., No. 12 (Mfr's. No. 131184)

1шт.

42

PIN, dowel, commutator end (Mfr's. No. 809062)

1шт.

43

PIN, dowel, drive end (Mfr's. No. 809593)

1шт.
