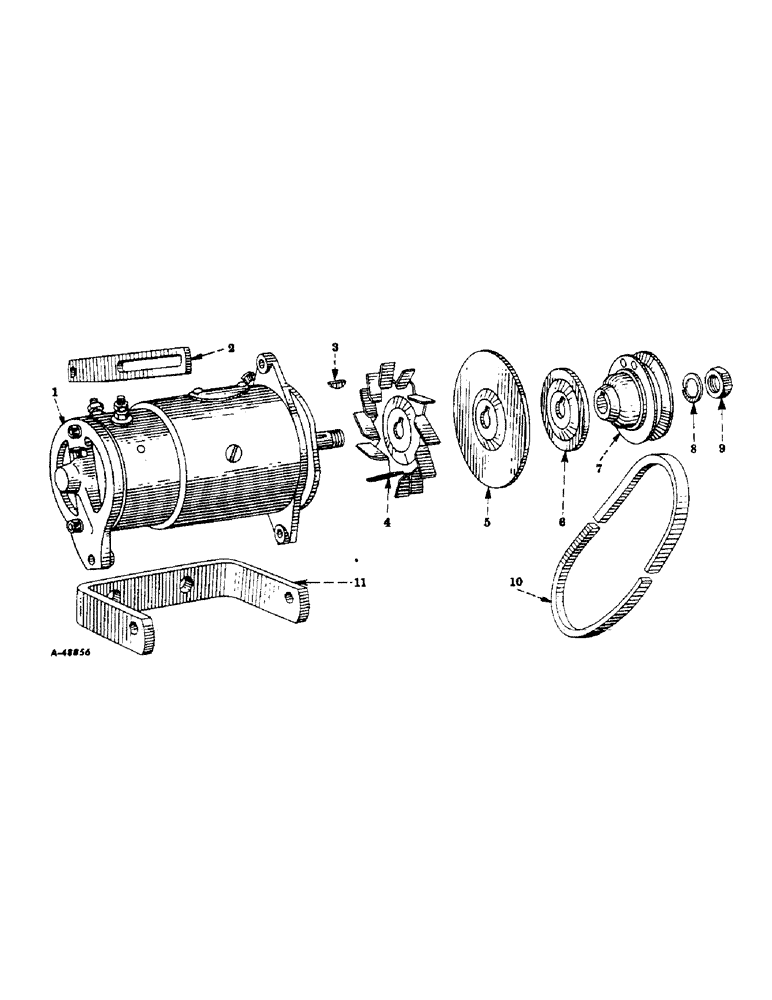

Запчасти Case IH 300 (096) - ELECTRICAL SYSTEM, CARBURETED ENGINE, GENERATOR & CONNECTIONS (12 V) (SEE NOTE) (06) - ELECTRICAL SYSTEMS

1

282653R91

GENERATOR, assembly (12 volt)

1шт.

179839

BOLT,Hex, 3/8" - 16 x 1", Gr 5

2шт.

9635082

NUT,5/16" - 18, Gr 5

2шт.

103320

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

2шт.

2

362658R1

BAR

BRACE, generator

1шт.

179816

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

2шт.

103320

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

2шт.

95-11034

WASHER,1/4"

plain, 11/32" ID x 11/16"OD x No. 16 ga.

1шт.

3

124545

WOODRUFF KEY,#5, 1/8" x 5/8", HT

1шт.

4

90426H

PULLEY, fan

1шт.

5

263303R1

BAFFLE, generator pulley fan

1шт.

6

368594R1

RETAINER, generator pulley fan baffle

1шт.

7

368591R1

PULLEY

generator

1шт.

8

WASHER, lock armature shaft nut (Delco-Remy 804000)

1шт.

9

NUT, armature shaft (Delco-Remy 806915)

1шт.

10

362820R1

BELT, generator

1шт.

11

362659R1

BRACKET, generator

1шт.

179858

SUPPORT

SCREW, cap, hex-hd., 7/16-14NC x 1"

2шт.

103322

LOCK WASHER,7/16"

WASHER, LOCK, 7/16"

2шт.
