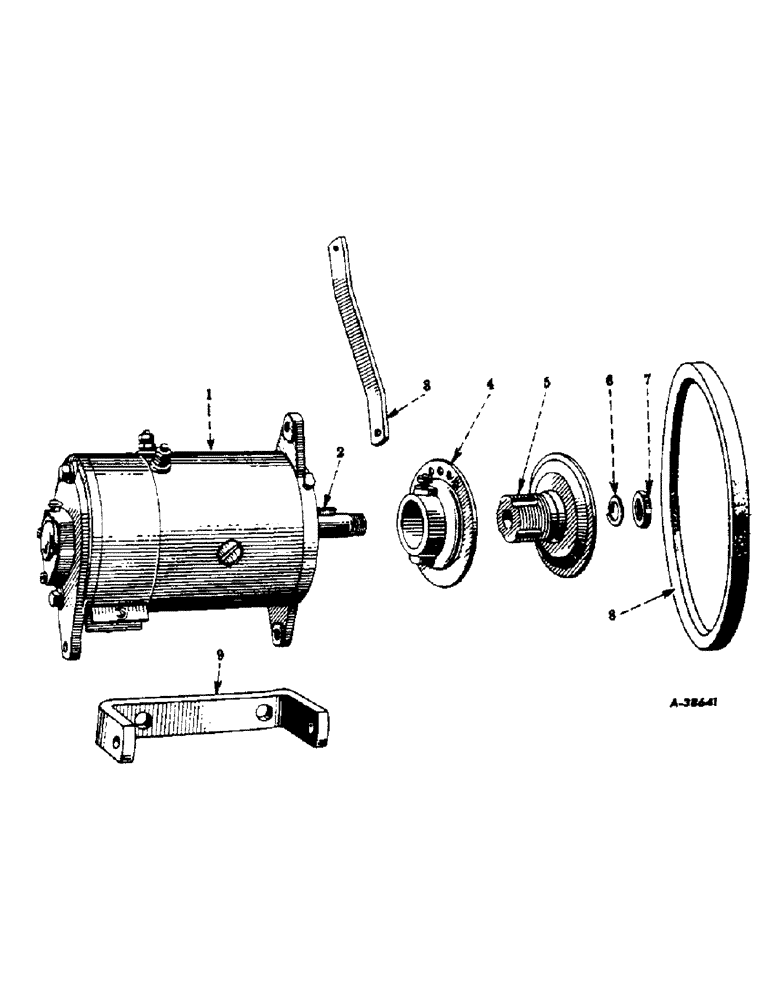

Запчасти Case IH 300 (094) - ELECTRICAL SYSTEM, CARBURETED ENGINE, GENERATOR AND CONNECTION, 6 VOLT (06) - ELECTRICAL SYSTEMS

1

354237R91

GENERATOR, assembly (6 volt) (For components see list of parts under details of "Generator")

1шт.

9635082

NUT,5/16" - 18, Gr 5

2шт.

179819

BOLT,Hex, 5/16" - 18 x 1 1/8", Gr 5

2шт.

103320

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

2шт.

2

124545

WOODRUFF KEY,#5, 1/8" x 5/8", HT

1шт.

3

48877D

BRACE, generator

1шт.

179816

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

2шт.

103320

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

2шт.

4

6746DX

HUB

FLANGE, generator pulley, w/nut, 114501 and screw, 102820

1шт.

114501

JAM NUT,Jam, 1/4"-20, G5

1шт.

102820

SHAFT

set, hdls., dog-pt., 1/4-20NC x 7/8"

1шт.

5

6745DA

HUB

generator pulley

1шт.

6

WASHER, lock, armature shaft nut (Delco-Remy 804000)

1шт.

7

NUT, armature shaft (Delco-Remy 1914308)

1шт.

8

362828R1

V-BELT,0.50" W

BELT , Generator 0.50" W

1шт.

9

50384D

BRACKET, generator

1шт.

179858

SUPPORT

SCREW, cap, hex-hd., 7/16-14NC x 1"

2шт.

103322

LOCK WASHER,7/16"

WASHER, LOCK, 7/16"

2шт.
