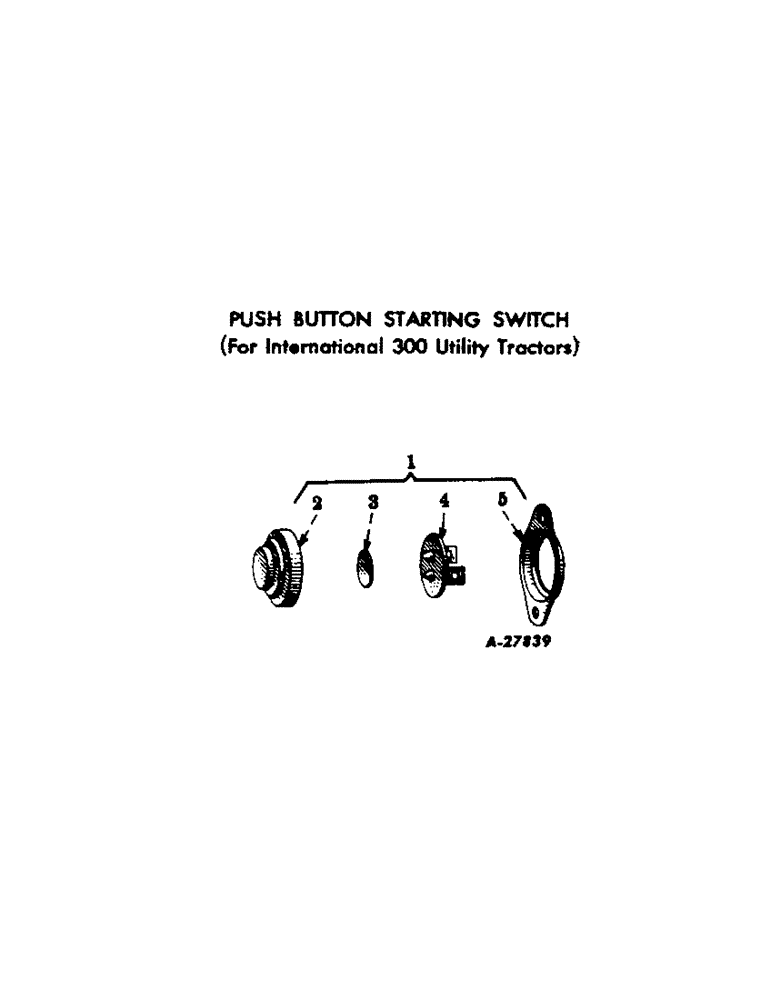

Запчасти Case IH 300 (093) - ELECTRICAL SYSTEM, CARBURETED ENGINE, PUSH BUTTON STARTING SWITCH, FOR INTL 300 UTILITY TRACTORS (06) - ELECTRICAL SYSTEMS

1

255357R91

SWITCH

push button starting, assembly (Order 366316R91)

1шт.

2

352134R1

BODY

starting switch

1шт.

3

352135R1

PLATE

contact, starting switch

1шт.

4

352136R11

BASE

terminal, starting switch, w/two screws, 64022H and two washers, 121841

1шт.

64022H

SCREW, starting switch terminal base

2шт.

121841

LOCK WASHER,#8

WASHER, LOCK, #8

2шт.

5

352133R1

PLATE

BRACKET, starting switch

1шт.

120611

NUT,#10 - 32

square, cd-pltd., No. 10-32NF

2шт.

132903

ADAPTER

SCREW, machine, slotted-rd-hd., cd-pltd., No. 10-32NF x 7/16"

2шт.

120217

LOCK WASHER,#10

WASHER, LOCK, #10

2шт.
