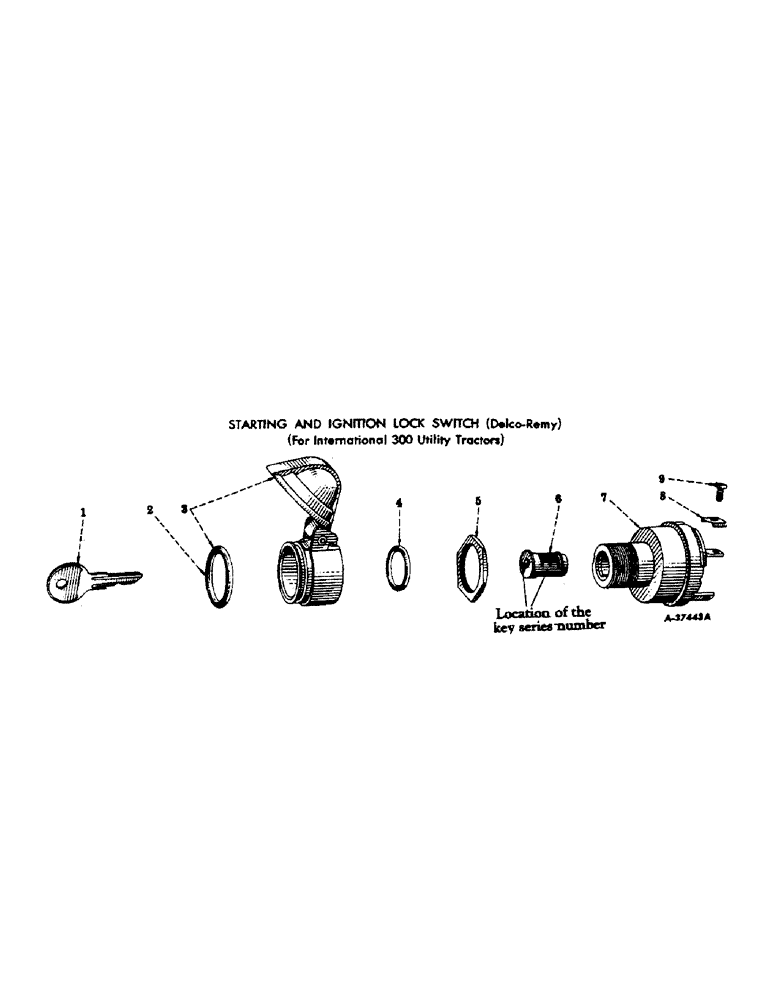

Запчасти Case IH 300 (092) - ELECTRICAL SYSTEM, CARBURETED ENGINE, STARTING & IGNITION LOCK SWITCH, DELCO-REMY (06) - ELECTRICAL SYSTEMS

361998R93

SWITCH

starting and ignition lock, assembly (Order switch, 300557R91) (Mfr's. No. 1116532)

1шт.

1

KEY (Purchase locally) (See Note)

1шт.

2

SEAL, cover (15/16" I.D.) (Mfr's. No. 1923404)

1шт.

3

COVER, w/mounting nut, pin, seal, 1923404 and spring (Will work for 1930376) (Mfr's. No. 1935010)

1шт.

4

SEAL, mounting nut (3/4" I.D.) (Mfr's. No. 1930636)

1шт.

5

NUT (Mfr's. No. 1923405)

1шт.

6

LOCK, w/two keys (Will work for 1849889 and 1932254) (Mfr's. No. 1934382)

1шт.

7

BODY, switch (Not serviced separately - order switch, assembly)

1шт.

8

CLIP, terminal (Mfr's. No. 1868137)

4шт.

9

SCREW, terminal (Mfr's. No. 1864099)

4шт.
