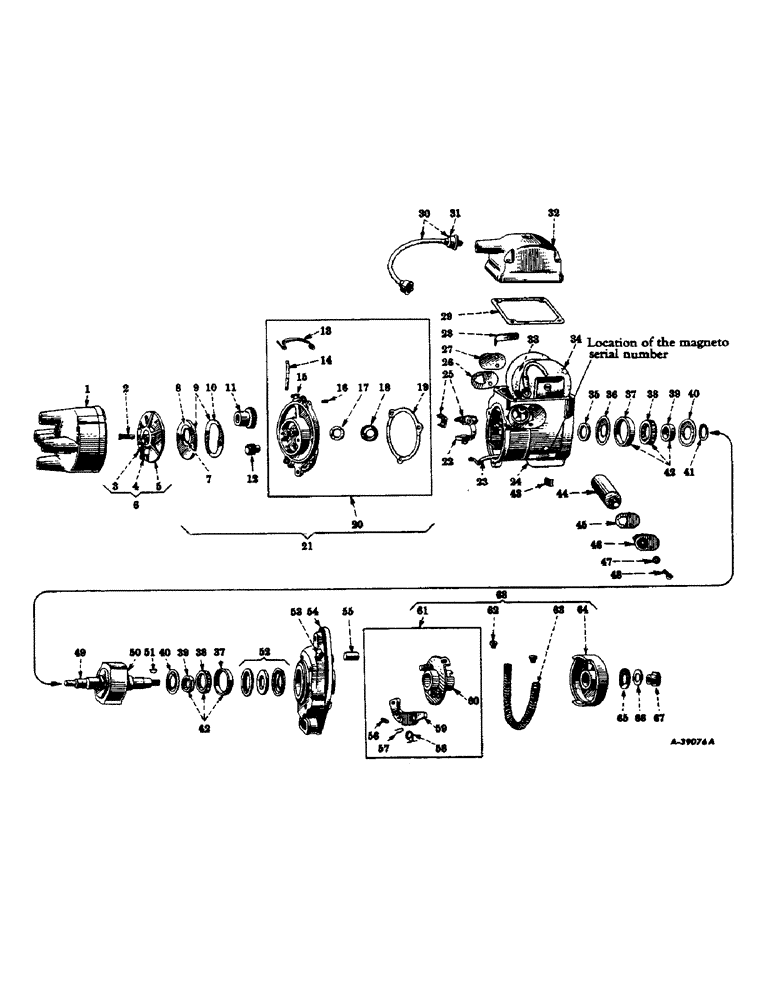

Запчасти Case IH 300 (086) - ELECTRICAL SYSTEM, CARBURETED ENGINE, MAGNETO (06) - ELECTRICAL SYSTEMS

363850R91

MAGNETO (International H-4) assembly

1шт.

1

47413DXC

CAP

distributor, w/five inserts

1шт.

1

47413DYC

CAP

distributor, 47413DXC, w/brush, 21350DXA

1шт.

2

21350DXA

BRUSH, distributor, w/spring (Optional with 32032DXA or 356622R11)

1шт.

2

32032DXA

BRUSH

distributor, w/spring (Optional with 21350DXA or 356622R11)

1шт.

2

356622R11

BRUSH, distributor, w/spring (Optional with 21350DXA or 32032DXA)

1шт.

3

47427D

NUT

distributor rotor

1шт.

131181

WASHER, lock, light, cd-pltd., No. 6

1шт.

4

47428DA

ARM

distributor

1шт.

5

47425DX

ROTOR, distributor, w/insert

1шт.

6

47425DY

CAP

ROTOR, distributor, assembly, Composed Of

1шт.

47428DA

ARM

1шт.

47427D

NUT

1шт.

47425DX

ROTOR

1шт.

13181

SEAL

WASHER

1шт.

7

49418D

SEAL, felt, distributor gear cover

1шт.

8

49417D

RETAINER, distributor gear cover felt seal

1шт.

9

49416DX

COVER, distributor gear, assembly, Composed Of

1шт.

49416D

COVER (NSS)

1шт.

49419D

GASKET

1шт.

49417D

RETAINER

1шт.

49418D

SEAL

1шт.

132760

SCREW,Sl Rnd Hd, #8 - 32 x 1/2"

machine, slotted-rd-hd., cd-pltd., No. 8-32NC x 1/2"

2шт.

121841

LOCK WASHER,#8

WASHER, LOCK, #8

2шт.

10

49419D

GASKET

distributor gear cover

1шт.

11

49420DX

PINION

GEAR, distributor (24 teeth)

1шт.

12

47417DX

PINION

distributor rotor, w/plug (12 teeth)

1шт.

13

51666D

SPRING, distributor cap

2шт.

51667D

PIN, distributor cap spring

2шт.

14

E4216

FELT, distributor body oiler

1шт.

15

E4295

OILER, distributor body, w/cap and spring

1шт.

16

47424D

PIN, locating, distributor cap

1шт.

17

49423D

SEAL, felt, distributor rotor pinion

1шт.

18

49424D

RETAINER, distributor rotor pinion felt seal

1шт.

19

47408D

GASKET

distributor body

1шт.

20

6483DAY

BODY, distributor, assembly, Composed Of

1шт.

6483DA

BODY (NSS)

1шт.

E4216

FELT

1шт.

47408D

GASKET

1шт.

E4295

OILER

1шт.

47424D

PIN

1шт.

51667D

PIN

2шт.

49424D

RETAINER

1шт.

49423D

SEAL

1шт.

47486D

SHAFT (NSS)

1шт.

51666D

SPRING

2шт.

132124

SCREW,Sl Fil Hd, #10 - 32 x 3/4"

machine, slotted-fil-hd., cd-pltd., No. 10-32NF x 3/4"

3шт.

120217

LOCK WASHER,#10

WASHER, LOCK, #10

3шт.

21

56066DA

DISTRIBUTOR, assembly, Composed Of

1шт.

6483DAY

BODY

1шт.

49416DX

COVER

1шт.

49420DX

PINION

GEAR

1шт.

47417DX

PINION

1шт.

132760

SCREW,Sl Rnd Hd, #8 - 32 x 1/2"

2шт.

121841

LOCK WASHER,#8

WASHER, LOCK, #8

2шт.

22

47432D

ANCHOR

breaker arm spring

1шт.

120622

NUT,#8-32

1шт.

133482

SCREW, machine, slotted-fil-hd., cd-pltd., No. 8-32NC x 3/8"

1шт.

121841

LOCK WASHER,#8

WASHER, LOCK, #8

1шт.

23

47433DX

CABLE

primary leadout (Breaker arm, Serial Range: anchor-condenser)

1шт.

24

6482DAY

FRAME, magneto, assembly, Composed Of

1шт.

55015D

COVER

1шт.

E4226

FELT

1шт.

6482DAX

FRAME (NSS)

1шт.

359966R1

GASKET

2шт.

47485D

POST (NSS)

1шт.

ST601

RACE

1шт.

47454D

RETAINER

1шт.

121832

SCREW,Sl Rnd Hd, #8 - 32 x 3/8"

2шт.

121841

LOCK WASHER,#8

WASHER, LOCK, #8

2шт.

25

353171R91

CONTACT

POINT SET, magneto

1шт.

436692

SCREW,Slotted Pan Hd, #8-32 x 5/16"

machine, slotted-pan-hd., cd-pltd., No. 8-32NC x 5/16"

1шт.

21394D

WASHER

stationary point

1шт.

26

359966R1

GASKET

condenser hole cover

1шт.

27

55015D

COVER, condenser hole

1шт.

121832

SCREW,Sl Rnd Hd, #8 - 32 x 3/8"

machine, slotted-rd-hd., cd-pltd., No. 8-32NC x 3/8"

2шт.

121841

LOCK WASHER,#8

WASHER, LOCK, #8

2шт.

28

47452D

STRAP, coil secondary leadout

1шт.

436652

SCREW, machine, slotted-pan-hd., cd-pltd., No. 4-48NF x 5/16"

1шт.

131093

WASHER, lock, heavy, cd-pltd., No. 4

1шт.

29

47453D

GASKET

coil cover

1шт.

30

356686R92

CABLE

coil to distributor, w/two nipples, 251533R1

1шт.

31

251553R1

BOOT

NIPPLE, coil to distributor cable

2шт.

32

47449DAY

COVER ASSY

COVER, coil, assembly, Composed Of

1шт.

47449DA

COVER (NSS)

1шт.

47451D

INSERT (NSS)

1шт.

436652

SCREW

1шт.

47452D

STRAP

1шт.

131093

WASHER

1шт.

131997

SCREW, machine, slotted-fil-hd., cd-pltd., No. 8-32NC x 1-1/2"

4шт.

38609DA

WASHER, mounting, coil cover

4шт.

33

21314DX

CORE

coil, w/two screw, 133495

1шт.

133495

SCREW,Mach, Sl Flat Hd, Csk, #8 - 32 x 0.62", Gr 2

machine, slotted-fl-hd., cd-pltd., No. 8-32NC x 5/8"

2шт.

33

47439DAX

COIL ASSY.

COIL, 57926DX, w/core

1шт.

33

57926DX

COIL

w/two insulators, 49593D and two screws, 133495

1шт.

34

49593D

INSULATOR, coil end

2шт.

35

E4226

FELT, rotor shaft bearing

1шт.

36

47454D

RETAINER, rotor shaft bearing felt, inner

1шт.

37

ST601

RACE

outer (Rotor shaft ball bearing)

2шт.

38

ST602

BEARING

RETAINER, w/balls (Rotor shaft ball bearing)

2шт.

39

ST600

BEARING

RACE, inner (Rotor shaft ball bearing)

2шт.

40

E4A324

FLINGER, oil

2шт.

41

E4A305

SHIM, rotor, light (.002")

1шт.

41

E4212

SHIM, rotor, medium (.004")

1шт.

41

E4A372

SHIM, rotor, heavy (.010")

1шт.

42

ST307

BALL BEARING,0.5906" ID x 1.378" OD x 0.315"

BEARING, ball (Rotor shaft)

2шт.

43

48339D

CLIP, condenser

1шт.

131992

LEVER

machine, slotted-fil-hd., cd-pltd., No. 8-32NC x 1-1/4"

1шт.

121841

LOCK WASHER,#8

WASHER, LOCK, #8

1шт.

44

21409DB

CONDENSER

1шт.

45

359966R1

GASKET

short circuiting terminal insulator

1шт.

46

359704R1

INSULATOR, short circuiting terminal

1шт.

132760

SCREW,Sl Rnd Hd, #8 - 32 x 1/2"

machine, slotted-rd-hd., cd-pltd., No. 8-32NC x 1/2"

2шт.

121841

LOCK WASHER,#8

WASHER, LOCK, #8

2шт.

38609DA

WASHER, terminal insulator screw

2шт.

47

359965R1

WASHER, short circuiting terminal

1шт.

48

359967R1

TERMINAL, short circuiting

1шт.

121637

LOCK WASHER

WASHER, lock, light, 1/4"

1шт.

49

60094D

CAM, breaker

1шт.

50

47455DAR

ROTOR, assembly, Composed Of

1шт.

60094D

CAM

1шт.

E4A324

FLINGER

2шт.

57314D

KEEPER

1шт.

106749

KEY

1шт.

ST600

BEARING

RACE

2шт.

ST602

BEARING

RETAINER

2шт.

47457DAX

ROTOR (NSS)

1шт.

E4212

SHIM

2шт.

E4A305

SHIM

2шт.

E4A372

SHIM

2шт.

51

106749

KEY

woodruff, No. 3

1шт.

52

353051R91

HOLDER

PACKAGE, service, forward oil seal, Consists Of

1шт.

353050R1

OIL SEAL (NSS)

1шт.

353054R1

SHIM (NSS)

1шт.

E4212

SHIM

2шт.

E4A305

SHIM

2шт.

E4A372

SHIM

2шт.

353052R1

WASHER (NSS)

1шт.

353053R1

WASHER (NSS)

1шт.

53

27311D

OILER, impulse coupling, w/cap and spring

1шт.

54

6515DAX

FLANGE, magneto mounting, assembly, Composed Of

1шт.

6515DA

FLANGE (NSS)

1шт.

27311D

OILER

1шт.

353050R1

OIL SEAL (NSS)

1шт.

47468DA

PIN

1шт.

ST601

RACE

1шт.

353052R1

WASHER (NSS)

1шт.

353053R1

WASHER (NSS)

1шт.

173464

SCREW, machine, slotted-fl-hd., 1/4-20NC x 9/16"

4шт.

114616

WASHER

lock, csk., external-tooth, 1/4"

4шт.

55

47468DA

PIN, stop, impulse coupling

1шт.

56

24610D

WASHER, impulse pawl pin

2шт.

57

30114D

RING, snap, impulse pawl pin

2шт.

58

51303D

VALVE SPRING

SPRING, impulse pawl

2шт.

59

351367R91

PAWL, impulse, w/weight

2шт.

60

363852R91

HUB, impulse magneto member, w/disc and two pins

1шт.

61

363853R91

MEMBER, impulse magneto, assembly, Composed Of

1шт.

363852R91

HUB

1шт.

351367R91

PAWL

2шт.

30114D

RING

2шт.

51303D

VALVE SPRING

SPRING

2шт.

24610D

WASHER

2шт.

62

251555R1

BUTTON

impulse spring end

2шт.

63

47822D

SPRING

impulse coupling

1шт.

64

251558R11

MEMBER, impulse coupling drive

1шт.

65

24603D

WASHER, impulse coupling retainer

1шт.

66

251591R1

WASHER, lock, impulse coupling nut

1шт.

67

47470D

NUT, impulse coupling

1шт.

68

363851R91

UNIT, impulse coupling rotating, assembly, Composed Of

1шт.

251555R1

BUTTON

2шт.

251558R11

MEMBER

1шт.

363853R91

MEMBER

1шт.

47822D

SPRING

1шт.

57755D

GAGE, breaker point

1шт.

21372D

GREASE, magneto (1 oz. tube)

1шт.

These parts are not included in magneto, assembly.

1шт.

359766R91

GREASE, magneto ball bearing (1 oz. tube)

1шт.

These parts are not included in magneto, assembly.

1шт.

57314D

KEEPER, magneto rotor magnet (Used to protect magnets when the rotor is disassembled from the magneto)

1шт.

These parts are not included in magneto, assembly.

1шт.

69398D

VARNISH, electrical insulating (1 pint)

1шт.

These parts are not included in magneto, assembly.

1шт.
