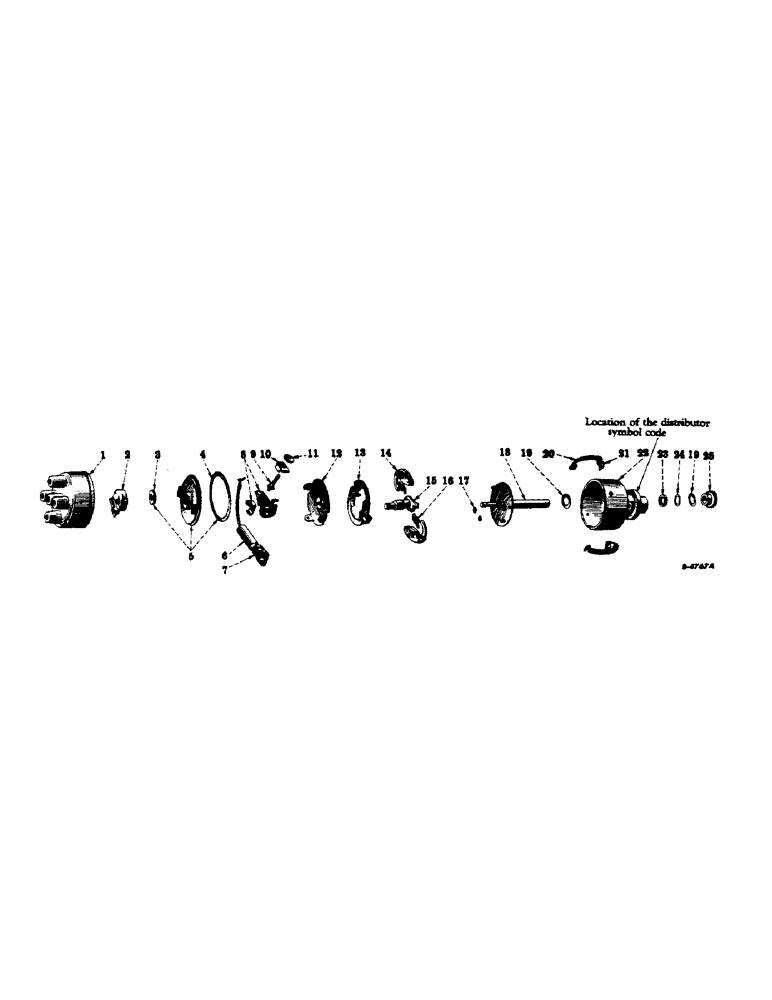

Запчасти Case IH 300 (084) - ELECTRICAL SYSTEM, CARBURETED ENGINE, BATTERY IGNITION DISTRIBUTOR (06) - ELECTRICAL SYSTEMS

364653R91

DISTRIBUTOR

("S" symbol), assembly (6 or 12 volt) (See Note) (Will work for ("O" symbol) distributor, 362722R91) (For tractors equipped with gasoline or kerosene burning engines) (Column A)

1шт.

364696R92

DISTRIBUTOR

("T" symbol), assembly (12 volt) (See Note) (For tractors equipped with liquefied petroleum gas burning engines) (Column B)

1шт.

357935R91

OIL DISTRIBUTOR

DISTRIBUTOR ("J" symbol), assembly (6 volt) (For tractors equipped with distillate burning engines) (See Note) (Column C)

1шт.

366928R91

DISTRIBUTOR

("X" symbol), assembly (12 volt) (For tractors equipped with distillate burning engines) (Column D)

1шт.

1

351693R92

DISTRIBUTOR,Cap

CAP, distributor

1шт.

2

353896R91

ROTOR ASSY.

ROTOR, distributor

1шт.

3

353901R2

FELT SEAL

felt, breaker cover

1шт.

4

352284R2

GASKET

breaker cover

1шт.

5

353900R11

COVER

breaker, w/seal, 353901R2 and gasket, 352284R2

1шт.

6

353903R92

CONDENSER

1шт.

7

353905R1

CLAMP

condenser

1шт.

86982774

SCREW,Slotted Fil Hd, #8-32 x 3/16"

slotted-fil-hd., cd-pltd. No. 8-32NC x 3/16"

1шт.

121841

LOCK WASHER,#8

WASHER, LOCK, #8

1шт.

8

353172R91

BREAKER

POINT SET, distributor

1шт.

120622

NUT,#8-32

Breaker arm spring #8-32

1шт.

436690

SCREW,Slotted Pan Hd, #8-32 x 3/16"

slotted-pan-hd., cd-pltd., No. 8-32NC x 3/16" (Stationary point)

1шт.

21394D

WASHER

stationary point or breaker arm spring

2шт.

121841

LOCK WASHER,#8

WASHER, LOCK, , Breaker arm spring #8

1шт.

9

353907R1

STUD

SCREW, terminal

1шт.

120622

NUT,#8-32

2шт.

121841

LOCK WASHER,#8

WASHER, LOCK, #8

2шт.

21394D

WASHER

terminal

1шт.

10

353906R1

PLUG

INSULATOR, spring anchor, terminal

1шт.

11

251538R1

WASHER

insulating, terminal

1шт.

12

352277R11

PLATE

breaker

1шт.

121832

SCREW,Sl Rnd Hd, #8 - 32 x 3/8"

slotted-rd-hd., cd-pltd., No. 8-32NC x 3/8"

1шт.

121841

LOCK WASHER,#8

WASHER, LOCK, #8

1шт.

13

352301R1

GUARD

governor weight

1шт.

131954

SCREW,Sl Fil Hd, #8 - 32 x 1/4"

slotted-fil-hd., cd-pltd., No. 8-32NC x 1/4"

2шт.

121841

LOCK WASHER,#8

WASHER, LOCK, #8

2шт.

14

353915R91

ARM

w/weight

2шт.

15

355724R91

PACKAGE

CAM, w/felt, 355460R1

1шт.

16

358108R91

SPRING

SET, governor springs (Consists of two springs) (Used on "J" symbol distributor) (See Note) [C]

1шт.

16

362725R91

SPRING

SET, governor springs (Consists of two springs) (Used on "T" symbol distributor) (See Note) [A]

1шт.

16

373955R91

PACKAGE

SET, governor springs (Consists of two springs) (Used on "O" or "S" symbol distributors) (See Note) [B]

1шт.

16

366942R91

PACKAGE

SET, governor springs (Consists of two springs) (Used on "X" symbol distributor) (See Note) [D]

1шт.

17

352293R1

SHIM

SPACER, weight arm

4шт.

18

354901R91

SHAFT

distributor, w/disc and two pins (Used on "J" and "X" symbol distributor) (See Note) [C]

1шт.

18

362723R91

SHAFT

distributor, w/disc and two pins (Used on "O" or "S" symbol distributors) [A]

1шт.

18

353926R91

SHAFT

distributor, w/disc and two pins (Used on "T" symbol distributors) [B]

1шт.

19

352298R1

THRUST WASHER

thrust, distributor

2шт.

20

353894R1

VALVE SPRING

SPRING, distributor cap

2шт.

21

353895R1

SUPPORT

distributor cap spring

2шт.

121832

SCREW,Sl Rnd Hd, #8 - 32 x 3/8"

slotted-rd-hd., cd-pltd., No. 8-32NC x 3/8"

2шт.

121841

LOCK WASHER,#8

WASHER, LOCK, #8

2шт.

22

353898R11

HOUSING

distributor, w/oil seal, 252739R1, retainer, 353899R1 and plug, 125947

1шт.

103883

PIPE PLUG,Slotted, Headless, 1/8" NPT

pipe, slotted, cd-pltd., 1/8"

1шт.

23

353899R1

STOP

RETAINER, oil seal, distributor shaft

1шт.

24

252739R1

O-RING,0.103" Thk x 0.487" ID, -112, Cl 5, 75 Duro

OIL SEAL, distributor shaft

1шт.

25

353902R1

GEAR

distributor (32 teeth)

1шт.

354552R1

HARDWARE

PIN, distributor gear

1шт.

355460R1

FELT SEAL

FELT, cam oil hole

1шт.

21372D

GREASE, distributor or magneto (1 oz. tube) (Not included in distributor, assembly)

1шт.

373577R91

KIT

PACKAGE, service, distributor shaft bushing (used to replace bushing in distributor housing, 354898R11)

1шт.
