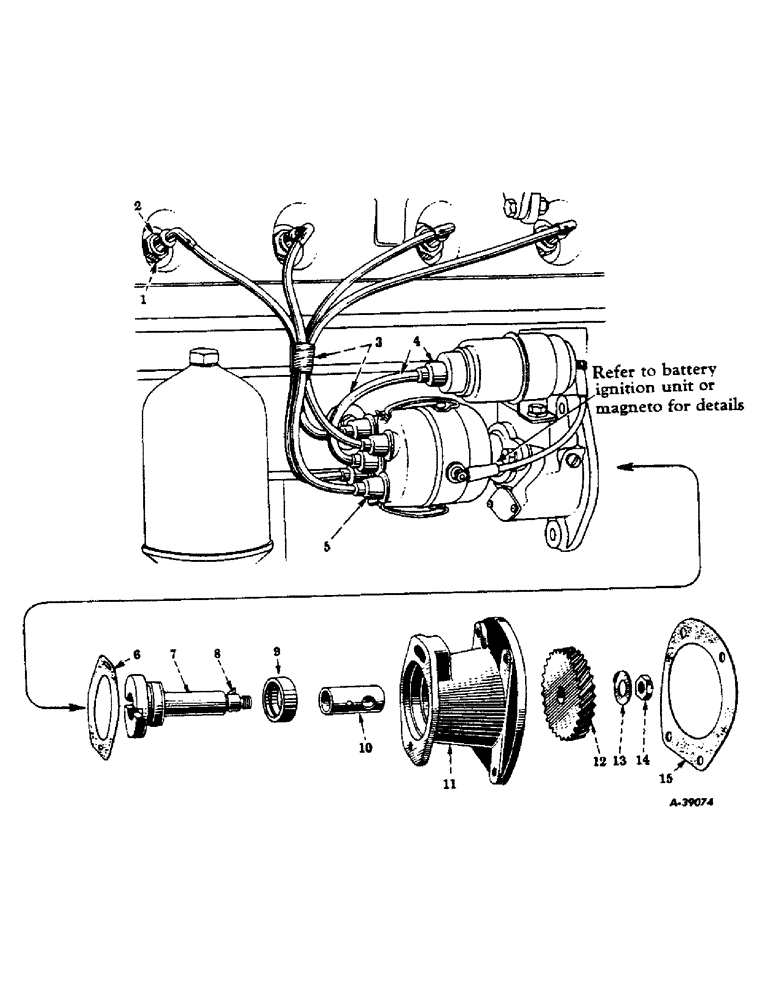

Запчасти Case IH 300 (080) - ELECTRICAL SYSTEM, CARBURETED ENGINE, SPARK PLUGS, CABLES & IGNITION UNIT DRIVE PARTS (06) - ELECTRICAL SYSTEMS

1

37762H

GASKET

spark plug

4шт.

2

360943R91

SPARK PLUG

PLUG, spark, w/gasket, 37762H (Champion 10 Com.) (See Note), mild service

4шт.

2

353985R91

PLUG, spark, w/gasket, 37762H (AC 88 S Com.) (See Note), mild service

4шт.

2

359277R91

PLUG, spark, w/gasket, 37762H (Auto-Lite BT-10) (See Note), mild service

4шт.

2

365479R91

SPARK PLUG

PLUG, spark, w/gasket, 37762H (Champion D-21) (See Note), moderate service

4шт.

2

365977R91

PLUG, spark, w/gasket, 37762H (AC 88 Com.) (See Note), moderate service

4шт.

2

365979R91

PLUG

spark, w/gasket, 37762H (Auto-Lite BT-9) (See Note), moderate service

4шт.

2

360942R91

SPARK PLUG

PLUG, spark, w/gasket, 37762H (Champion 8 Com.) (See Note), normal service

4шт.

2

353982R91

PLUG, spark, w/gasket, 37762H (AC 85 S Com.) (See Note), normal service

4шт.

2

359276R91

SPARK PLUG

PLUG, spark, w/gasket, 37762H (Auto-Lite BT-8) (See Note), normal service

4шт.

2

361688R91

SPARK ARRESTER

PLUG, spark, w/gasket, 37762H (Champion S Com.) (See Note), severe service

4шт.

2

353983R91

PLUG, spark, w/gasket, 37762H (AC 83 S Com.) (See Note), severe service

4шт.

2

359275R91

PLUG, spark, w/gasket, 37762H (Auto-Lite BT-4) (See Note), severe service

4шт.

2

361686R91

SPARK PLUG

PLUG, spark, w/gasket, 37762H (Champion 4 Com.), extremely severe service

4шт.

2

353986R91

SPARK PLUG

PLUG, sprak, w/gasket, 37762H (AC 81 S Com.), extremely severe service

4шт.

2

359274R91

PLUG, spark, w/gasket, 37762H (Auto-Lite BT-3), extremely severe service

4шт.

3

362789R91

PACKAGE

service, ignition cable (Consists of four spark plug cables, cable, 356686R92 and four nipples, 251553R1), spark plugs - extremely severe service

1шт.

4

356686R92

CABLE

secondary, coil to distributor, w/two nipples, 251553R1, spark plugs - extremely severe service

1шт.

5

251553R1

BOOT

NIPPLE, spark plug cable, extremely severe service

6шт.

6

55780DD

GASKET

ignition unit flange, spark plugs - extremely severe service

1шт.

7

352079R1

SHAFT

ignition unit drive (See Note), spark plugs - extremely severe service

1шт.

8

106749

KEY

woodruff, No. 3 (Ignition unit drive gear) (See Note), spark plugs - extremely severe service

1шт.

9

352080R91

SEAL

OIL SEAL, ignition unit drive shaft (See Note), spark plugs - extremely severe service

1шт.

9

358839R91

SEAL

OIL SEAL, ignition unit drive shaft (See Note), spark plugs - extremely severe service

1шт.

10

24473DA

BUSHING

ignition unit drive shaft (See Note), spark plugs - extremely severe service

1шт.

11

354948R11

BRACKET, ignition unit drive, w/bushing, 24473DA and oil seal, 352080R91 (See Note), spark plugs - extremely severe service

1шт.

413-622

BOLT,Hex, 3/8" - 16 x 1-3/8", Gr 5

cap, hex-hd., 3/8-16NC x 1-3/8" (See Note), spark plugs - extremely severe service

4шт.

103321

LOCK WASHER,3/8"

WASHER, LOCK, (See Note), Spark plugs - Extremely severe service 3/8"

4шт.

12

45002D

GEAR

ignition unit or hydraulic pump drive (24 teeth), spark plugs - extremely severe service

1шт.

13

45003D

WASHER

LOCK, ignition unit or hydraulic pump drive gear nut (Used only with gear 45002D), spark plugs - extremely severe service

1шт.

14

114498

JAM NUT,Jam, 5/8"-18, G5

(Ignition unit or hydraulic pump drive gear), Spark plugs - Extremely severe service Jam, 5/8"-18, G5

1шт.

15

354949R1

GASKET

ignition unit drive bracket (See Note), spark plugs - extremely severe service

1шт.
