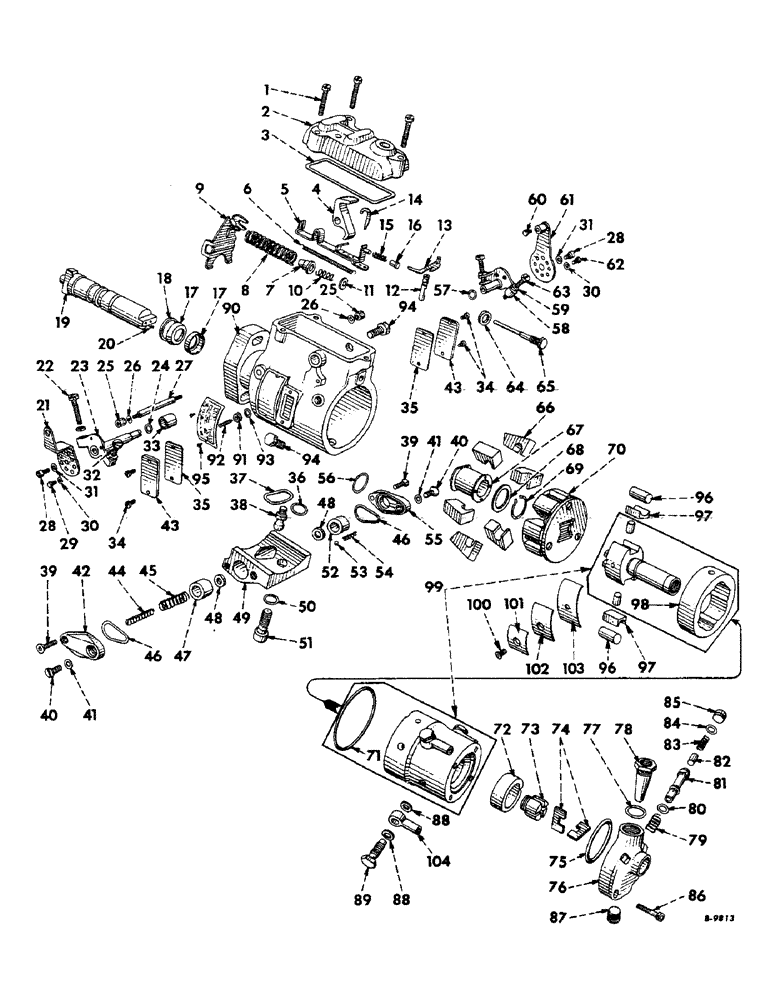

Запчасти Case IH 300 (072) - DIESEL ENGINE, FUEL INJECTION PUMP (01) - ENGINE

367392R91

PUMP, fuel injection assembly

1шт.

1

368011R1

SCREW

governor housing cover

3шт.

2

368010R1

COVER, governor housing

1шт.

3

368012R1

SEAL

governor housing cover

1шт.

4

368021R1

LEVER, throttle shaft

1шт.

5

367994R91

HOOK, governor linkage

1шт.

6

367995R1

VALVE SPRING

SPRING, governor linkage

1шт.

7

368015R1

RETAINER, spring

1шт.

8

368000R1

VALVE SPRING

SPRING, governor control

1шт.

9

367996R1

ARM

governor

1шт.

10

367997R1

SPRING, idling

1шт.

11

367998R1

GUIDE

idling spring

1шт.

12

368339R1

VALVE, metering

1шт.

13

368340R1

ARM, metering valve

1шт.

14

368023R1

CAM

shut-off

1шт.

15

368019R1

SPRING, damper

1шт.

16

368020R1

SLEEVE CYLINDER

SLEEVE, damper

1шт.

17

367977R1

OIL SEAL

SEAL, drive shaft

2шт.

18

367976R1

WASHER, drive shaft thrust

2шт.

19

367975R1

SHAFT, drive

1шт.

20

19315R1

PIN, ROLL

ROLL PIN, 1/16 x 1/4"

1шт.

21

368028R1

ARM, throttle adjustable

1шт.

22

368008R1

SCREW,Drilled Sl Hex, #10 - 32 x 1.53"

idle adjusting

1шт.

23

368001R91

SHAFT, throttle

1шт.

24

352219R1

O-RING,0.07" Thk x 0.239" ID, -10, Cl 5, 75 Duro

throttle shaft lever

1шт.

25

368018R1

NUT

pivot shaft

1шт.

26

368017R1

WASHER, pivot shaft seal

1шт.

27

368016R1

SHAFT

governor arm pivot

1шт.

28

413-1216

BOLT,Hex, 3/4" - 10 x 1", Gr 5

SCREW, cap, hex-soc-hd., No. 10-32NC x 3/8"

2шт.

29

368026R1

SCREW, throttle adjustable arm positioning

1шт.

30

115544

WASHER,Int Tooth, #8

lock, internal tooth, No. 8

2шт.

31

115545

LOCK WASHER,Int Tooth, #10

WASHER, lock, internal tooth, No. 10

2шт.

32

368002R1

ADJUSTMENT SCREW,Drilled Sl Hex, #10 - 32 x 1.406"

throttle arm adjusting

1шт.

33

368027R1

SPACER, throttle shaft lever

1шт.

34

134213

SCREW,Sl Oval Hd, #8 - 32 x 5/16"

machine, oval-head slotted, No. 8-32NC x 5/16"

74шт.

35

367979R1

GASKET

timing line cover

2шт.

36

355966R1

O-RING,0.424" ID x 0.103" Width

head locating screw

1шт.

37

368046R1

O-RING,0.85" Width

O-RING, cam hole

1шт.

38

368031R1

SCREW

cam advance

1шт.

39

189132

SCREW,#10 - 24 x 5/8"

cap, hex-socket-hd., No. 10-24NC x 5/8"

2шт.

40

368045R1

SCREW, stop

2шт.

41

352219R1

O-RING,0.07" Thk x 0.239" ID, -10, Cl 5, 75 Duro

stop screw

2шт.

42

368044R1

PLATE, advance end-spring side

1шт.

43

367978R1

COVER, timing line

2шт.

44

368037R1

SPRING, advance, inner

1шт.

368575R1

SHIM

advance spring

1шт.

45

368038R1

SPRING, advance, outer

1шт.

46

368042R1

O-RING

advance end plate

2шт.

47

368036R1

PISTON, spring

1шт.

48

368035R1

WASHER

slide

2шт.

49

368032R1

HOUSING, automatic advance

1шт.

50

368034R1

WASHER, advance body clamp screw

1шт.

51

368033R1

SCREW, advance body clamp

1шт.

52

368039R1

PISTON, power

1шт.

53

368040R1

CHECK, ball

1шт.

54

368041R1

SPRING, ball check

1шт.

55

368043R1

PLATE, advance end-power side

1шт.

56

350667R1

O-RING,0.103" Thk x 0.674" ID, -115, Cl 5, 75 Duro

drive shaft retaining

1шт.

57

352219R1

O-RING,0.07" Thk x 0.239" ID, -10, Cl 5, 75 Duro

shut-off shaft

1шт.

58

368022R91

SHAFT, shut-off

1шт.

59

368009R1

NUT

adjusting screw lock

2шт.

60

450643

SCREW,Hex Hd, #8-32 x 3/8"

machine, hex-hd., No. 8-32NC x 3/8"

1шт.

61

368025R91

ARM, shut-off

1шт.

62

368026R1

SCREW, shut-off positioning

1шт.

63

368024R1

SCREW, throttle adjusting

2шт.

64

368014R1

WASHER

guide stud

1шт.

65

368013R1

STUD, guide

1шт.

66

368343R1

WEIGHT

governor

6шт.

67

368341R1

SLEEVE

governor thrust

1шт.

68

368342R1

THRUST WASHER

thrust

1шт.

69

368345R1

SNAP RING

RING, retainer

1шт.

70

368344R91

RETAINER, governor weight, assembly, Composed Of

1шт.

368816R1

HUB

1шт.

368815R1

RETAINER AND BRACKET

1шт.

368817R1

SCREW

6шт.

368818R1

SPRING

3шт.

71

368337R1

SEALING RING

SEAL, head

1шт.

72

367980R1

SLEEVE CYLINDER

LINER, transfer pump

1шт.

73

368338R1

ROTOR, transfer pump

1шт.

74

367981R1

SHEET

BLADE, transfer pump

2шт.

75

367982R1

O-RING,0.154" Width

transfer pump

1шт.

76

367985R1

PLATE, plain end, w/pin, 368812R1

1шт.

368812R1

DOWEL

PIN, plate locating

1шт.

77

368030R1

RING

O-RING, cap and filter

1шт.

78

368029R91

SIEVE

CAP AND FILTER

1шт.

79

367986R1

VALVE SPRING

SPRING, plunger retainer

1шт.

80

361883R1

O-RING

sleeve seal

1шт.

81

367987R1

SLEEVE, end plate

1шт.

82

367988R1

PLUNGER

PISTON, regulating

4шт.

83

367989R1

VALVE SPRING

SPRING, regulating

1шт.

84

361883R1

O-RING

sleeve seal

1шт.

85

367990R1

PLUG, end plate (Without identification No.)

1шт.

85

367991R1

PLUG, end plate (With identification No. 2)

1шт.

85

367992R1

PLUG, end plate (With identification No. 4)

1шт.

86

367993R1

SCREW, end plate

4шт.

87

143997

PLUG

pipe, sq-socket, 1/4"

1шт.

88

367984R1

SEALING WASHER

WASHER, fuel line connector

8шт.

89

367983R1

CAPSCREW,Hex, 3/8" - 24 x 1.055", Drilled

SCREW, fuel line connector

4шт.

90

368798R91

HOUSING AND PILOT TUBE, 368799R1, assembly

1шт.

368799R1

TUBE, pilot (Not illustrated)

1шт.

91

368814R1

NUT

torque screw seal

1шт.

92

368813R1

SCREW, torque

1шт.

93

352219R1

O-RING,0.07" Thk x 0.239" ID, -10, Cl 5, 75 Duro

SEAL, torque screw

1шт.

94

368810R1

SCREW, head locking

2шт.

95

145362

DRIVE SCREW,U, Rnd Hd, #0 x 1/8"

name plate, No. OX 1/8 rd-hd., blunt metal drive

2шт.

96

368805

ROLLER, cam

2шт.

97

368804

SHOE, cam roller

2шт.

98

368800

RING, cam

1шт.

99

368801R91

HEAD, hydraulic and distributor rotor, assembly

1шт.

368802R1

SCREW, rotor plug

1шт.

368803R1

WASHER, rotor plug

1шт.

100

368806R1

SCREW, leaf spring adjusting

1шт.

101

368808R1

SPRING, third leaf

1шт.

102

368807R1

SPRING, second leaf

1шт.

103

368809R1

SPRING, main leaf

1шт.

104

368811R1

CONNECTOR, fuel line

4шт.

368816R1

HUG, governor weight retainer, parts not illustrated

1шт.

Not Illustrated

1шт.

368815R1

RETAINER AND BRACKET ASSEMBLY, governor weight, parts not illustrated

1шт.

Not Illustrated

1шт.

368817R1

SCREW, weight retainer swivel, parts not illustrated

6шт.

Not Illustrated

1шт.

368818R1

SPRING, weight retainer swivel, parts not illustrated

3шт.

Not Illustrated

1шт.

12736D

ELECTRICAL WIRE

WIRE, lead plumb and sealing, parts not illustrated

1шт.

Not Illustrated

1шт.
