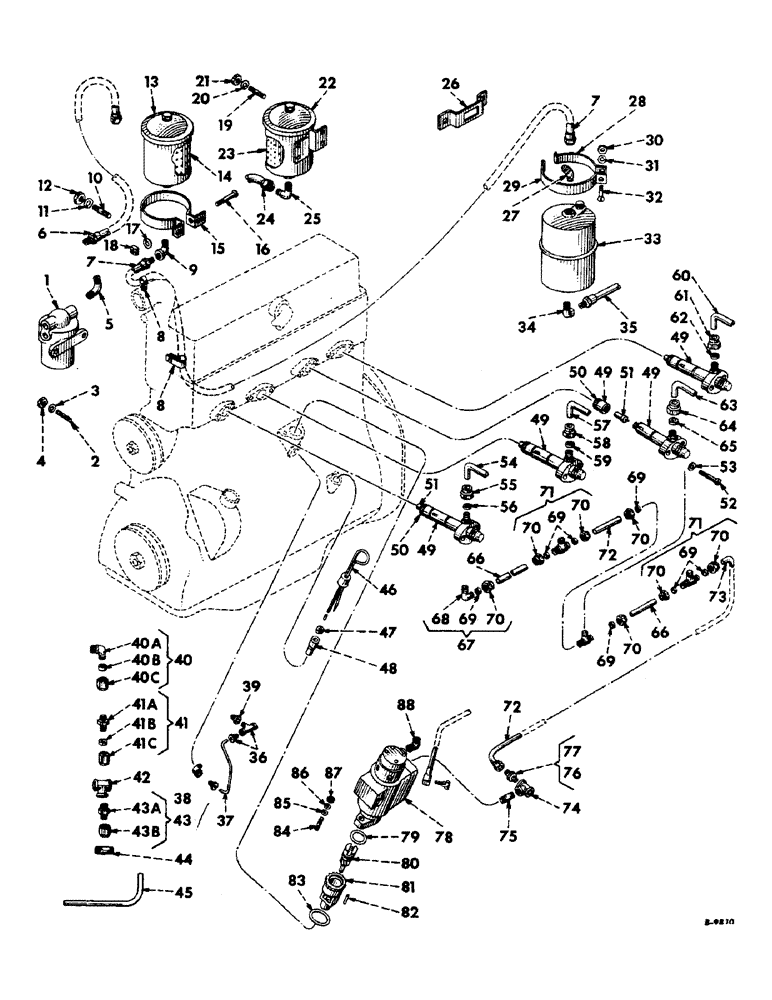

Запчасти Case IH 300 (068) - DIESEL ENGINE, INJECTION, COMBUSTION AND LUBRICATION SYSTEMS (01) - ENGINE

1

367396R91

FILTER, primary fuel (For components see list of parts under details of "Primary Fuel Filter")

1шт.

2

40723V

STUD, primary stage fuel filter

2шт.

Q1597

WASHER

plain, 13/32" ID x 3/4" OD x No. 16 ga.

2шт.

3

103321

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

2шт.

4

102635

NUT,3/8"-16, G5

2шт.

5

118755

ELBOW

primary stage fuel filter outlet

1шт.

6

367400R91

HOSE

primary to secondary fuel filter

1шт.

7

367401R91

HOSE, secondary to final stage fuel filter

1шт.

8

368290R1

CLIP, secondary to final stage fuel fitler hose

2шт.

9

120499

ELBOW

secondary fuel filter outlet

1шт.

10

G3898

STUD, secondary fuel filter

2шт.

11

103320

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

2шт.

12

9635082

NUT,5/16" - 18, Gr 5

2шт.

13

367397R91

FILTER, secondary fuel (Order 368284R91) (For components see list of parts under details of "Secondary Fuel Filters") (S/N D193, Serial Range: 501-1197)

1шт.

13

368284R91

FILTER, secondary fuel (For components see list of parts under details of "Secondary Fuel Filter") (S/N D-193 1198 up)

1шт.

14

367398R91

ELEMENT

secondary fuel filter (S/N D-193, Serial Range: 501-1197)

1шт.

14

368257R91

ELEMENT

secondary fuel filter, w/gaskets (S/N D-193 1198 up)

1шт.

15

368428R1

STRAP, secondary fuel filter

1шт.

16

113967

SCREW, rd-hd., slt., 1/4-20NC x 2-1/2"

1шт.

17

103319

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

1шт.

18

114380

NUT

square, machine screw

1шт.

19

G3898

STUD, oil filter

4шт.

20

103320

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

4шт.

21

9635082

NUT,5/16" - 18, Gr 5

4шт.

22

367486R91

FILTER, oil, assembly (For components see list of parts under details of "Oil Filter")

1шт.

23

367488R91

ELEMENT

oil filter, w/gasket

1шт.

24

367487R91

HOSE

oil filter

1шт.

127189R1

ELBOW, crankcase to oil filter (At crankcase)

1шт.

25

144353

ELBOW, oil filter

1шт.

26

368287R1

SUPPORT, final stage fuel filter

2шт.

9635082

NUT,5/16" - 18, Gr 5

4шт.

103320

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

4шт.

27

367403R1

ELBOW, final stage fuel filter inlet

1шт.

28

368289R1

BAND, final stage fuel filter (Smaller half)

2шт.

29

368288R1

BAND, final stage fuel filter (Larger half)

2шт.

30

109084

NUT,1/4"-20, G5

2шт.

31

103319

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

2шт.

32

113965

SCREW, mach., slt-rd-hd., 1/4-20NC x 2"

2шт.

33

367399R91

FILTER

final stage fuel

1шт.

34

118755

ELBOW

final stage fuel filter outlet

1шт.

35

367402R91

HOSE ASSY.

HOSE, final stage fuel filter to injection pump

1шт.

36

43372DX

TEE

injection pump drive lub. oil tube (S/N D-193, Serial Range: 501-714)

1шт.

43372D

BODY, hi-duty tube fitting (S/N D-193 501 714) 5/16"-24 Run x 1/8" NPT Br

1шт.

222-500

TUBE NUT,5/16" - 24 NPT

ELBOW, injection pump inlet (S/N D-193 501 to 714)

1шт.

37

367485R1

PIPE, crankcase to injection pump (S/N D-193, Serial Range: 501-714)

1шт.

38

36637DX

CONNECTOR, ELEC

ELBOW, injection pump drive lub. oil tube (S/N D-193, Serial Range: 501-714)

1шт.

36637D

ELBOW,90 Degree x 1/8" NPT x 5/16"-24

BODY, hi-duty tube fitting (S/N D-193 501 to 714)

1шт.

222-500

TUBE NUT,5/16" - 24 NPT

NUT, hi-duty tube fitting (S/N D-193 501 to 714)

1шт.

39

112877

ADAPTER,1/4" NPT Male x 1/8" NPT Fem

REDUCER, oil pressure outlet (S/N D-193 501 to 714)

1шт.

40

367344R11

ELBOW, injection pump drive lub. oil tube (S/N D-193 715 up)

1шт.

40a

367344R1

BODY, elbow (S/N D-193 715 up)

1шт.

40b

367345R1

SLEEVE

(S/N D-193 715 up)

1шт.

40c

367346R1

NUT (S/N D-193 715 up)

1шт.

41

367348R11

CONNECTOR, injection pump, w/sleeve and nut (S/N D-193 715 up)

1шт.

41a

367348R1

BODY, connector (S/N D-193 715 up)

1шт.

41b

367345R1

SLEEVE

(S/N D-193 715 up)

1шт.

41c

367346R1

NUT (S/N D-193 715 up)

1шт.

42

121761

TEE,1/8" NPT, Fem

oil pressure outlet (S/N D-193 715 up)

1шт.

43

59939DX

ELBOW

CONNECTOR, hi-duty, male, 1/8" (S/N D-193 715 up)

1шт.

43a

59939D

HYD CONNECTOR,1/8" NPT x 5/16"-24

BODY, hi-duty, male connector, 1/8" (S/N D-193 715 up)

1шт.

43b

222-500

TUBE NUT,5/16" - 24 NPT

NUT, hi-duty, 1/8" (S/N D-193 715 up)

1шт.

44

142868

PIPE,Nipple, 1/8" NPT x 3/8", Brass

NIPPLE, oil pressure outlet (S/N D-193 715 up)

1шт.

45

368330R1

PIPE, crankcase to injection pump (S/N D-193 715 up)

1шт.

46

367489R91

GAGE, oil level

1шт.

47

42117D

FELT, oil level gage

1шт.

48

367420R1

SUPPORT, oil gage rod

1шт.

49

367331R91

NOZZLE, injection, assembly (For components see list of parts under detail of "Injection Nozzle")

4шт.

50

367332R1

HOLDER, nozzle

4шт.

51

367333R1

NOZZLE INJECTION

TIP, nozzle

4шт.

52

367334R1

SCREW, nozzle holder

8шт.

53

103320

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

8шт.

54

367335R91

PIPE, injection, nozzle No. 1, assembly

1шт.

55

367339R1

NUT

injection pipe

1шт.

56

367340R1

SLEEVE

injection pipe nut

1шт.

57

367336R91

PIPE, injection, nozzle No. 2, assembly

1шт.

58

367339R1

NUT

injection pipe

1шт.

59

367340R1

SLEEVE

injection pipe nut

1шт.

60

367337R91

PIPE, injection, nozzle No. 3, assembly

1шт.

61

367339R1

NUT

injection pipe

1шт.

62

367340R1

SLEEVE

injection pipe nut

1шт.

63

367338R91

PIPE, injection, nozzle No. 4, assembly

1шт.

64

367339R1

NUT

injection pipe

1шт.

65

367340R1

SLEEVE

injection pipe nut

1шт.

66

367341R1

PIPE, fuel leak-off, No. 1 to No. 2 nozzle and No. 3 to No. 4 nozzle

2шт.

67

367344R11

ELBOW, 367344R1, w/sleeve, 367345R1 and nut, 367346R1 No. 1 nozzle holder

1шт.

68

367344R1

BODY, elbow

1шт.

69

367345R1

SLEEVE

8шт.

70

367346R1

NUT

8шт.

71

367347R11

TEE, 367347R1, w/sleeve, 367345R1 and nut, 367346R1

3шт.

71

367347R1

BODY, tee

3шт.

72

367342R1

PIPE, fuel leak-off, No. 2 to No. 3 nozzle

1шт.

73

367343R1

PIPE, fuel leak-off, No. 4, Serial Range: nozzle-pump

1шт.

74

121761

TEE,1/8" NPT, Fem

injection pump leak-off, 1/8" brs. pipe

1шт.

75

142868

PIPE,Nipple, 1/8" NPT x 3/8", Brass

NIPPLE, injection pump leak-off tee, 1/8" x 3/4" close brs. pipe

1шт.

76

367348R11

CONNECTOR, 367348R1, w/sleeve, 367345R1 and nut, 367346R1

1шт.

77

367348R1

BODY, injection pump leak-off tee connector

1шт.

78

367393R91

PUMP, fuel injection (For components see list of parts under details of "Fuel Injection Pump")

1шт.

79

356005R1

O-RING,1.109" ID x 0.139" Width

injection pump (Will work for 367404R1)

1шт.

80

367395R1

SHAFT, injection pump drive

1шт.

81

367394R1

ADAPTER, injection pump drive shaft

1шт.

82

103690

CONNECTING LINK

PIN, 1/8" x 1/2" camfered straight

1шт.

83

367405R1

RING

O-RING, injection pump drive shaft adapter

1шт.

84

68929D

STUD, injection pump

2шт.

85

95-11034

WASHER,1/4"

11/32" ID x 11/16" OD x No. 16 ga.

2шт.

86

103320

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

2шт.

87

9635082

NUT,5/16" - 18, Gr 5

2шт.

88

118755

ELBOW

injection pump inlet

1шт.
