Запчасти Case IH 300 (067[A]) - DIESEL ENGINE, SECONDARY FUEL FILTER (01) - ENGINE

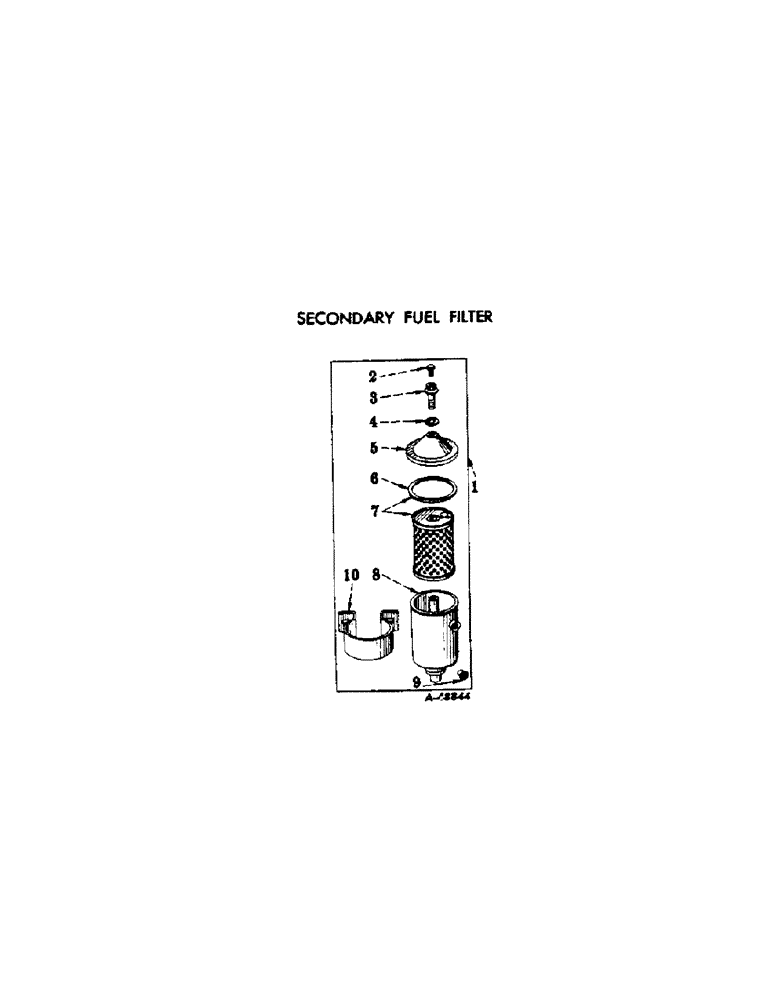

Схема запчастей Case IH 300 - (067[A]) - DIESEL ENGINE, SECONDARY FUEL FILTER (01) - ENGINE
5
6
7
3
2
8
10
4
9
1

Артикул

Название

Примечание

Количество

1

367397R91

FILTER, secondary fuel (Not illustrated) (Order 368284R91) (S/N D-193, Serial Range: 501-1197)

1шт.

1

368284R91

FILTER, secondary fuel (S/N D-193 1198 up)

1шт.

2

444608

GASKET

PLUG, secondary fuel filter bleed

1шт.

3

368492R1

SCREW, cap, vent, 7/16-20NF x 2"

1шт.

4

368493R1

GASKET

vent cap screw

1шт.

5

368494R91

COVER, secondard fuel filter, assembly

1шт.

6

368495R1

GASKET, secondary fuel filter cover

1шт.

7

367398R91

ELEMENT

secondary fuel filter (Used with 367397R91) (S/N D-193, Serial Range: 501-1197)

1шт.

7

368257R91

ELEMENT

secondary fuel filter, w/gasket 368495R1 (Used with 368284R91) (S/N D-193 1198 up)

1шт.

8

BODY (Order secondary fuel filter, assembly)

1шт.

9

444614

PLUG,Hex Hd, 1/8"-27, Brass

secondary fuel filter drain

1шт.

10

368428R1

STRAP, secondary fuel filter

1шт.

114380

NUT

square, mach. screw

1шт.

113967

SCREW, rd-hd., sltd., 1/4-20NC x 2-1/2"

1шт.

103319

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

1шт.

Выбрано товаров: 15
