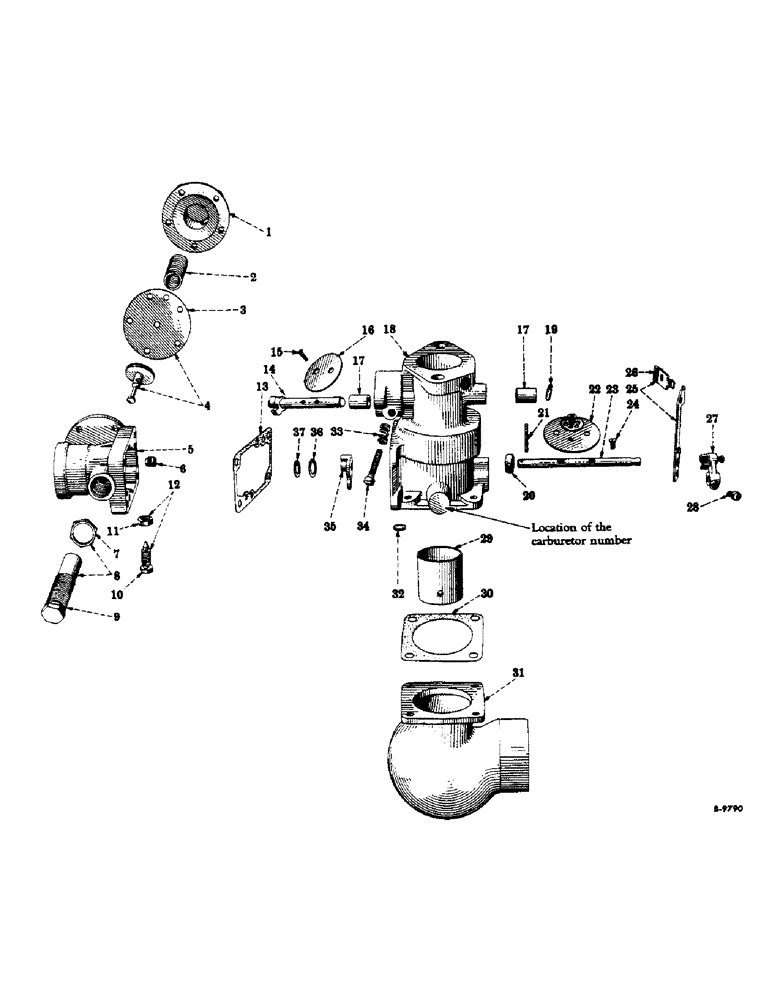

Запчасти Case IH 300 (051) - CARBURETED ENGINE, CARBURETOR, FOR LIQUEFIED PETROLEUM GAS BURNING ENGINE (01) - ENGINE

368694R91

CARBURETOR, assembly (Will work for 275035R91)

1шт.

1

359623R1

COVER, economizer

1шт.

131974

SCREW,Sl Fil Hd, #8 - 32 x 5/8"

machine, slotted-fil-hd., cd-pltd., No. 8-32NC x 5/8"

5шт.

131182

WASHER, LOCK

cd-pltd., No. 8

5шт.

2

359622R1

SPRING, economizer

1шт.

3

113504R1

DIAPHRAGM, economizer

1шт.

4

359621R91

VALVE, economizer w/diaphragm, 113504R1

1шт.

5

359618R91

INLET, gas and economizer, w/screw, 36761D and screw, 275587R1 (Will work for 275584R91)

1шт.

132203

SCREW, machine, slotted-fl-hd., cd-pltd., No. 12-24NC x 7/8" Slotted Fil Hd, #12-24 x 7/8"

4шт.

131184

CONNECTING LINK

WASHER, lock, light, cd-pltd., No. 12

4шт.

6

275587R1

SCREW, bleed

1шт.

7

56430D

NUT, lock, fuel adjusting screw

1шт.

8

36761D

SCREW, fuel adjusting, 56429D, w/nut, 56430D

1шт.

9

56429D

SCREW, fuel adjusting

1шт.

10

359620R1

SCREW, starting adjusting

1шт.

11

113506R1

NUT, lock, fuel adjusting screw

1шт.

12

359619R91

SCREW, starting adjusting, 359620R1, w/nut, 113506R1

1шт.

13

359624R1

GASKET, gas inlet and economizer

1шт.

14

359610R91

SHAFT AND STOP, throttle

1шт.

15

56370D

SCREW, throttle shaft

2шт.

16

359611R1

DISC, throttle

1шт.

17

359609R1

BUSHING, throttle bearing

2шт.

18

359608R91

BODY, partial, w/two bushings, 359609R1, plug, 13123D and plug, 47856H

1шт.

19

47856H

PLUG, expansion, brs., 1/2"

1шт.

20

58899D

WASHER, dust

1шт.

21

359616R1

PIN, valve lever

1шт.

22

359613R91

DISC, choke, w/guide, spring and valve (Will work for 275582R91)

1шт.

23

359612R1

SHAFT, choke

1шт.

24

56365D

SCREW, choke shaft

2шт.

25

58889D

SUPPORT, choke tube, w/clamp, 56389D, screw, 132105 and nut, 120611

1шт.

443799

SCREW, machine, slotted-binding-hd., cd-pltd., No. 8-32NC x 1/4"

2шт.

26

56389D

CLAMP, choke tube

1шт.

120611

NUT,#10 - 32

hex., No. 10-32NF

1шт.

132105

SCREW,Sl Fil Hd, #10 - 32 x 3/8"

machine, slotted-fil-hd., cd-pltd., No. 10-32NF x 3/8"

1шт.

27

275583R91

LEVER, choke, w/screw, 36756D and screw and swivel

1шт.

28

36756D

SCREW, set, choke lever

1шт.

29

368698R91

VENTURI

1шт.

30

359627R1

GASKET, air intake elbow

1шт.

31

359626R1

ELBOW, air intake

1шт.

154627

SPRING

SCREW, machine, cr-rec-hd., chr-pltd., No. 12-24NC x 5/8"

4шт.

131184

CONNECTING LINK

WASHER, lock, light, cd-pltd., No. 12

4шт.

32

13123D

PLUG, expansion, brs., 3/16"

1шт.

33

37185D

SPRING, throttle stop adjusting screw retainer

1шт.

34

132133

SCREW, machine, slotted-fil-hd., cd-pltd., No. 10-32NF x 1" Slotted Fil Hd, #10-32 x 1"

1шт.

35

359614R1

LEVER, valve

1шт.

36

359615R1

WASHER, spring

1шт.

37

37183D

WASHER, valve lever

1шт.
