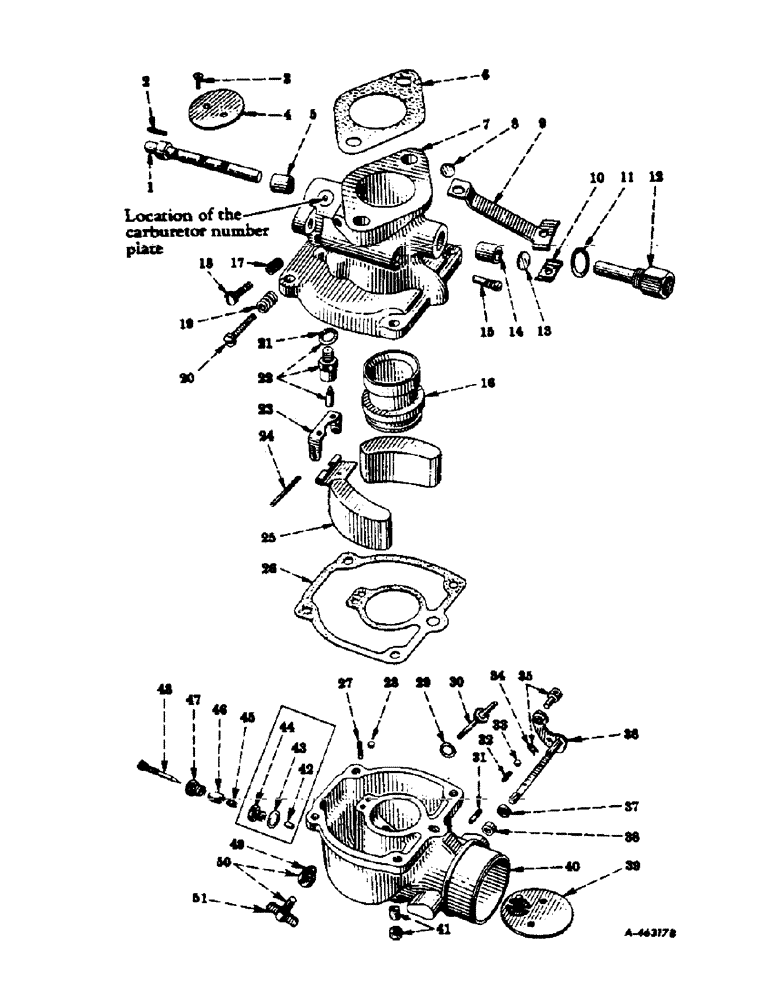

Запчасти Case IH 300 (046) - CARBURETED ENGINE, CARBURETOR, FOR DISTILLATE OR GASOLINE BURNING ENGINE (01) - ENGINE

361525R92

CARBURETOR

(1-1/4" updraft) assembly (See Note A) (For gasoline burning engines) (Column A)

1шт.

363741R93

CARBURETOR (1-1/4" updraft) assembly (See Note A) (For distillate or kerosene burning engine) (Column B)

1шт.

1

362529R91

SHAFT

throttle w/pin and stop

1шт.

2

45110D

PIN

throttle stop

1шт.

3

47392D

SCREW

throttle valve plate

2шт.

4

47391D

VALVE

PLATE, throttle valve

1шт.

5

362523R1

BUSHING, throttle shaft, left

1шт.

6

21632D

GASKET

carburetor (See Note B)

1шт.

7

362858R21

BODY, throttle, assembly (See Note C), Composed Of

1шт.

362858R2

BODY (NSS)

1шт.

47390D

BUSHING,7.91mm ID x 11.16mm OD x 12.7mm L

1шт.

362523R1

BUSHING

1шт.

45110D

PIN

1шт.

24805D

PLUG

1шт.

32611D

PLUG (NSS)

2шт.

47393D

PLUG (NSS)

2шт.

57956D

PLUG

1шт.

180021

SPRING

SCREW, cap, hex-hd., cd-pltd., 1/4-20NC x 7/8"

3шт.

492-11025

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

3шт.

8

24805D

PLUG

expansion, brs., 3/8" (Throttle body)

1шт.

9

361526R1

SUPPORT

BRACKET, choke valve control

1шт.

413-414

BOLT,Hex, 1/4" - 20 x 7/8", Gr 5

SCREW, cap, hex-hd., cd-pltd., 1/4-20NC x 7/8"

1шт.

492-11025

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

1шт.

10

32596D

FASTENER

CLAMP, choke valve control bracket

1шт.

120611

NUT,#10 - 32

sq., cd-pltd., No. 10-32NC

1шт.

NLS

NO LONGER SERVICED

machine, fil-hd., cd-pltd., No. 10-32NC x 5/8"

1шт.

120217

LOCK WASHER,#10

WASHER, LOCK, #10

1шт.

11

18377D

GASKET

strainer screen retainer

1шт.

12

29902DX

SCREEN

RETAINER, strainer screen, w/screen

1шт.

13

57956D

PLUG

expansion, throttle shaft

1шт.

14

47390D

BUSHING,7.91mm ID x 11.16mm OD x 12.7mm L

throttle shaft, right

1шт.

15

24693D

PLUG, idle outlet

1шт.

16

47407D25

VENTURI (Optional with 64987D25) [A]

1шт.

16

64987D25

VENTURI (Optional with 47407D25) [A]

1шт.

16

47407D24

VENTURI (Optional with 64987D24) [B]

1шт.

16

64987D24

VENTURI (Optional with 47407D24) [B]

1шт.

17

351959R1

SPRING

retainer, idle adjusting needle valve

1шт.

18

362528R1

ADJUSTMENT SCREW

VALVE, needle, idle adjusting

1шт.

19

25484D

SPRING

throttle adjusting screw

1шт.

20

186566

SCREW,Sltd Fil Hd, #10-32 x 1 1/8"

fil-hd., cd-pltd., No. 10-32NF x 1-1/8" (Throttle adjusting screw)

1шт.

21

25948D

GASKET

fuel valve seat

1шт.

22

47396DAX40

NEEDLE

VALVE, needle, w/gasket, 25948D and seat (Replaces 47396DX45)

1шт.

23

47394D

SUPPORT

float axle

1шт.

86982776

SCREW,Rd, #4 - 40 x 5/16"

machine, rd-hd., cd-pltd., No. 4-40NC x 5/16"

2шт.

131043

LOCK WASHER,#4

Washer, Lock, #4

2шт.

24

47395D

PIVOT

AXLE, float

1шт.

25

47398DX

FLOAT

1шт.

26

47388DA

GASKET

fuel bowl

1шт.

27

49798D75

JET

idle metering

1шт.

28

35606D55

AIR BLEED, main (Used with carburetor, 361525R91) (See Note A) [A]

1шт.

28

35606D53

AIR BLEED, main (Used with carburetor, 361525R92) (See Note A)

1шт.

29

251583R1

WASHER

GASKET, main discharge jet

1шт.

30

362860R1

JET, main discharge (Used with carburetor, 361525R91) (See Note A) [A]

1шт.

30

364497R1

NOZZLE INJECTION

JET, main discharge (Used with carburetor, 361525R92) (See Note A)

1шт.

31

142484

HANDLE

PIN, goove, 1/8 x 1/2" (Choke lever stop pin) (Optional with 351588R1)

1шт.

31

351588R1

PIN

choke lever stop (Optional with 142484)

1шт.

32

46059D

SPRING

choke valve lever friction

1шт.

33

52791R1

BALL,3/16" Dia, Stainless

stainless stl., 3/16" dia.

1шт.

34

363881R1

RETAINER

choke lever swivel

1шт.

35

64283DBX

PIVOT ASSY.

SWIVEL, choke valve lever, w/retainer, 363881R1

1шт.

169-133

SCREW,Sl Fil Hd, #8 - 32 x 3/8"

machine, fil-hd., No. 8-32NC x 3/8"

1шт.

32592D

WASHER

WASHER, choke valve lever swivel

1шт.

36

362036R91

SHAFT, choke valve, assembly, Composed Of

1шт.

169-133

SCREW,Sl Fil Hd, #8 - 32 x 3/8"

1шт.

357000R91

SHAFT

AND LEVER (NSS)

1шт.

64283DBX

PIVOT ASSY.

SWIVEL

1шт.

32592D

WASHER

WASHER

1шт.

37

45148D

SEAL,6.75mm ID x 11.24mm OD x 0.4mm Thk

RETAINER, choke valve dust seal

1шт.

38

45149DA

SEAL

dust, choke valve

1шт.

39

357002R12

SHUTTER

PLATE, choke valve, w/guide, spring and valve

1шт.

132688

SCREW,Sl Rnd Hd, #6 - 32 x 1/4"

rd-hd., cd-pltd., No. 6-32NC x 1/4"

2шт.

492-11006

LOCK WASHER,#6

Lock, #6

2шт.

40

364558R91

BOWL, fuel, assembly, Composed Of [B]

1шт.

35606D53

AIR BLEED

1шт.

362524R1

BOWL (NSS)

1шт.

142484

HANDLE

PIN

1шт.

32611D

PLUG (NSS)

1шт.

60947D

PLUG

1шт.

45148D

SEAL,6.75mm ID x 11.24mm OD x 0.4mm Thk

RETAINER

1шт.

45149DA

SEAL

1шт.

56611DA

SEAT

1шт.

40

362859R92

BOWL, fuel, assembly, (See Note C), Composed Of [A]

1шт.

35606D55

AIR BLEED

1шт.

362524R1

BOWL (NSS)

1шт.

142484

HANDLE

PIN

1шт.

32611D

PLUG (NSS)

1шт.

60947D

PLUG

1шт.

45148D

SEAL,6.75mm ID x 11.24mm OD x 0.4mm Thk

RETAINER

1шт.

45149DA

SEAL

1шт.

359784R1

SEAT

1шт.

117243

BOTTOM

PLUG, pipe, sq-hd., cd-pltd., 1/8" [A]

1шт.

41

60947D

PLUG

w/filler, drip hole

1шт.

42

355003R1

VENT

SEAT, main metering (Will work for 261095R1) (Used with carburetor, 361525R91) (See Note A) [A]

1шт.

43

362526R1

GASKET

fuel adjustment plug (Used with carburetor, 361525R91) (See Note A) [A]

1шт.

44

362525R1

PLUG

fuel adjustment (Used with carburetor, 361525R91) (See Note A) [A]

1шт.

45

56611DA

SEAT, main metering needle valve [B]

1шт.

45

359784R1

SEAT, main metering needle valve (Used with carburetor, 361525R92) (See Note A) [A]

1шт.

46

24703DA

PACKING

main metering needle valve (Optional with 67266DX) (Used with carburetor, 361525R92) (See Note A)

1шт.

46

67266DX

PACKING

main metering needle valve (optional with 24703DA) (Used with carburetor, 561525R92) (See Note A)

1шт.

47

24687DA

NUT,7/16" - 32 NPT

NUT, packing, main, metering needle valve (Used with carburetor, 361525R92)

1шт.

48

47404DA

ADJUSTMENT SCREW,Pan HD, 1/4" - 32 x 1-13/32", SST

VALVE, needle, main metering (Used with carburetor, 361525R92) (See Note A)

1шт.

49

64536DA

STEM

drain cock (Used with 9983TC) [B]

1шт.

50

9983TC

VALVE

COCK, drain (Body, 67942D w/stem, 64536DA) (Optional with 26407D and 134519) [B]

1шт.

50

134519

VALVE

COCK, drain, type B, brs., 1/8" (Body, w/stem) (Optional with 9983TC and 26406D) [B]

1шт.

50

26407D

VALVE

COCK, drain (Body w/stem) (Not illustrated) (Optional with 9983TC and 134519) [B]

1шт.

51

67942D

BODY, drain cock (Used with 9983TC) [B]

1шт.

364494R91

PACKAGE, carburetor change - over, complete (Use to change a 361525R91 carburetor to a 361525R92 carburetor), Consists Of [A]

1шт.

35606D53

AIR BLEED

1шт.

47388DA

GASKET

1шт.

251583R1

WASHER

GASKET

1шт.

364497R1

NOZZLE INJECTION

JET

1шт.

24687DA

NUT,7/16" - 32 NPT

NUT

1шт.

24703DA

PACKING

1шт.

364499R1

PLATE (NSS)

1шт.

47393D

PLUG (NSS)

1шт.

38525D

SCREW (NSS)

1шт.

359784R1

SEAT

1шт.

47404DA

ADJUSTMENT SCREW,Pan HD, 1/4" - 32 x 1-13/32", SST

VALVE

1шт.
