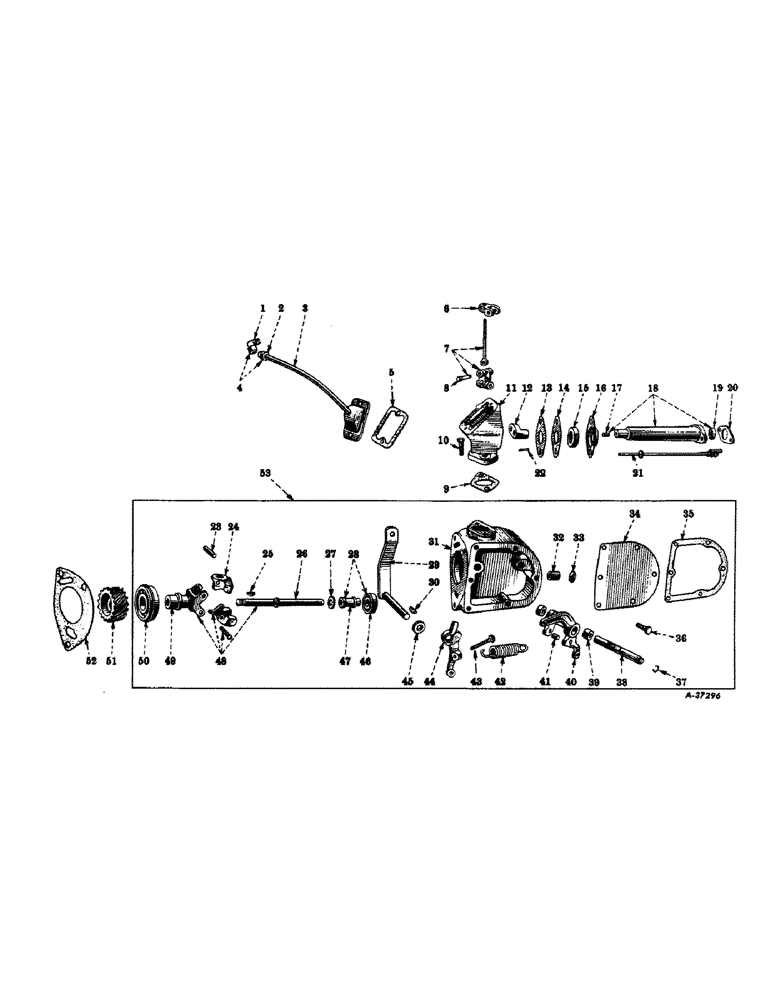

Запчасти Case IH 300 (042) - CARBURETED ENGINE, GOVERNOR AND CONNECTIONS (01) - ENGINE

1

37323D

ELBOW,90 Degree x 1/4" NPT x 9/16"-20

male pipe, hi-duty tube fitting, brs., 90 degrees, 3/8" O.D. tubing

1шт.

2

222-504

TUBE NUT,9/16"-20

NUT, hi-duty tube fitting, brs., 3/8" O.D. tubing

1шт.

3

51209DX

TUBE, governor breather, w/throttle lever cover and nut, 37165D

1шт.

114353

SCREW,Slotted Fil Hd, 1/4"-20 x 1/2"

machine, slotted-fil-hd., 1/4-20NC x 1/2"

2шт.

4

37323DX

ELBOW

37323D, w/nut, 37165D

1шт.

5

48501DA

GASKET

throttle lever cover

1шт.

6

6289D

BLOCK, adjusting, governor connecting rod

1шт.

103494

ADJUSTABLE CLEVIS,1/4" x .770"

PIN, rod end, dld., 1/4 x 51/64"

1шт.

103361

PIN, SPLIT (COTTER)

PIN, cotter, 1/16 x 1/2"

1шт.

7

48495DX

BOLT

ROD, connecting, throttle shaft, w/block and pin, 48496DA

1шт.

25-114

NUT,1/4"-28, G5

hex., 1/4-28NF

1шт.

NLS

NO LONGER SERVICED

PIN, cotter, 1/16 x 1/2"

1шт.

103494

ADJUSTABLE CLEVIS,1/4" x .770"

PIN, rod end, dld., 1/4 x 51/64"

1шт.

8

48496DA

PIN, throttle connecting rod

1шт.

9

48489D

GASKET

governor connecting rod housing

1шт.

10

364489R1

SCREW, governor connecting rod housing (Will work for 10958D)

1шт.

12736D

ELECTRICAL WIRE

SEAL, governor

1шт.

11

6678D

HOUSING, governor connecting rod

1шт.

179815

BOLT,Hex, 5/16" - 18 x 11/16", Gr 5

1шт.

12

6288D

LEVER

throttle shaft

1шт.

13

53877DA

GASKET

retainer, throttle shaft housing felt

1шт.

14

54088D

PLATE, retainer, throttle shaft housing felt

1шт.

15

48493D

WASHER

WASHER, felt, throttle shaft housing

1шт.

16

48492D

RETAINER, felt, throttle shaft housing

1шт.

114354

SCREW,Sl Fil Hd, 1/4" - 20 x 5/8"

machine, slotted - fil-hd., 1/4-20NC x 5/8"

2шт.

103319

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

2шт.

16558R1

WASHER

plain, 17/64" I.D. x 5/8" O.D. x No. 18 ga.

2шт.

17

45696D

BUSHING

throttle shaft

1шт.

18

358062R21

HOUSING, governor throttle shaft, w/bushing, 45696D and oil seal, 362201R91

1шт.

113957

SCREW,Sl Rnd Hd, 1/4" - 20 x 3/4"

machine, slotted-rd-hd., 1/4-20NC x 3/4"

2шт.

103319

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

2шт.

19

362201R91

OIL SEAL

OIL SEAL, governor throttle shaft

1шт.

20

66272D

GASKET

throttle shaft, Serial Range: housing-carburetor

1шт.

21

358063R11

SHAFT

throttle

1шт.

22

142952

GROOVED PIN

Pin, Grooved, 3/32" x 1/2", Type A, throttle shaft lever

1шт.

23

45656DA

PIN,6.35mm OD x 38.1mm L

governor weight

2шт.

24

362143R1

WEIGHT, governor (Optional with 364018R1)

2шт.

25

364018R1

WEIGHT, governor (Optional with 362143R1)

2шт.

25

124547

WOODRUFF KEY,#7, 1/8" x 3/4", HT

1шт.

26

48255DA

SHAFT

governor

1шт.

451074

NUT, lock, hex., 9/16-18NF

1шт.

27

45653D

THRUST WASHER

thrust governor sleeve

1шт.

28

351910R91

BEARING ASSY

SLEEVE, governor, 48250D, w/bearing, ST506

1шт.

29

363931R11

LEVER, speed change, w/shaft

1шт.

30

106749

KEY

Woodruff, No. 3 (Governor spring lever)

1шт.

31

8363DBX

HOUSING, governor, assembly, Composed Of

1шт.

48227D

BUSHING

1шт.

8363DB

HOUSING (NSS)

1шт.

41-3014

PLUG,Exp, 7/8"

1шт.

181395

BOLT,Hex, 7/16" - 20 x 1", Gr 5

SCREW

1шт.

45667D

SEAL

1шт.

103322

LOCK WASHER,7/16"

WASHER, LOCK, 7/16"

1шт.

181395

BOLT,Hex, 7/16" - 20 x 1", Gr 5

SCREW, cap, hex-hd., 7/16-20NF x 1"

1шт.

Used To Plug Governor Bumper Spring Hole.

1шт.

103322

LOCK WASHER,7/16"

WASHER, LOCK, 7/16"

1шт.

Used To Plug Governor Bumper Spring Hole.

1шт.

32

48227D

BUSHING

governor housing

1шт.

33

41-3014

PLUG,Exp, 7/8"

expansion, 7/8" (In governor housing)

1шт.

34

49107D

COVER, governor housing

1шт.

179815

BOLT,Hex, 5/16" - 18 x 11/16", Gr 5

SCREW, cap, hex-hd., 5/16-18NC x 3/4"

4шт.

28950D

WASHER

governor housing cover screw

4шт.

35

49108DA

GASKET

governor housing cover

1шт.

36

364489R1

SCREW, governor housing cover

2шт.

28950D

WASHER

governor housing cover screw

2шт.

37

21362D

RING, snap, governor rockshaft

1шт.

38

48253DA

ROCKSHAFT

governor

1шт.

39

45775D

NEEDLE BEARING,Needle, 12.74mm ID x 17.48mm OD x 12.7mm W

needle (Governor rockshaft)

2шт.

40

6633DBX

LEVER

governor rockshaft, w/two pins, 48254D

1шт.

41

48254D

PIN, thrust, governor rockshaft lever

2шт.

42

362142R1

SPRING

governor

1шт.

43

49528DA

BOLT, governor spring lever, long

1шт.

109084

NUT,1/4"-20, G5

1шт.

44

6676DB

LEVER

governor spring

1шт.

109084

NUT,1/4"-20, G5

1шт.

179797

BOLT,Hex, 1/4" - 20 x 1", Gr 5

2шт.

103319

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

1шт.

45

45667D

SEAL

OIL SEAL, speed change shaft

1шт.

46

ST506

BALL BEARING,17 mm ID x 40 mm OD x 12 mm

BEARING, ball

1шт.

47

48250D

SLEEVE

governor

1шт.

48

362144R91

WEIGHT, governor, w/carrier, assembly, Composed Of

1шт.

48256DA

CARRIER

1шт.

124547

WOODRUFF KEY,#7, 1/8" x 3/4", HT

1шт.

45656DA

PIN,6.35mm OD x 38.1mm L

2шт.

48255DA

SHAFT

1шт.

362143R1

WEIGHT

2шт.

49

48256DA

CARRIER

governor weight, w/hub (Optional with 360535R1)

1шт.

49

360535R1

CARRIER, governor weight (Optional with 48256DA)

1шт.

50

ST289

BEARING, BALL,25mm ID x 62mm OD x 17mm W

w/snap ring

1шт.

51

45671D

GEAR, governor (16 teeth)

1шт.

52

45685D

GASKET

governor housing

1шт.

53

363935R91

GOVERNOR, variable speed, assembly (Composed of reference Nos. 23 thru 50 including attaching parts)

1шт.

179841

BOLT,Hex, 3/8" - 16 x 1 1/4", Gr 5

cap, hex-hd., 3/8-16NC x 1-1/4"

2шт.

179843

BOLT,Hex, 3/8" - 16 x 1 1/2", Gr 5

1шт.

103321

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

3шт.

363144R92

GASKET

SET, governor (For components see list of parts under "Package Assorted Gaskets")

1шт.

363936R92

PACKAGE, service, governor overhaul, Consists Of

1шт.

45775D

NEEDLE BEARING,Needle, 12.74mm ID x 17.48mm OD x 12.7mm W

2шт.

ST289

BEARING, BALL,25mm ID x 62mm OD x 17mm W

BEARING

1шт.

48227D

BUSHING

1шт.

45635D

GASKET

1шт.

48489D

GASKET

1шт.

48501DA

GASKET

1шт.

49108DA

GASKET

1шт.

53887DA

GASKET

1шт.

66272D

GASKET

1шт.

106749

KEY

1шт.

363931R11

LEVER

1шт.

41-3014

PLUG,Exp, 7/8"

1шт.

45667D

SEAL

1шт.

351910R91

BEARING ASSY

SLEEVE

1шт.

362142R1

SPRING

1шт.

45653D

THRUST WASHER

1шт.

48493D

WASHER

WASHER

1шт.

362144R91

WEIGHT

1шт.
