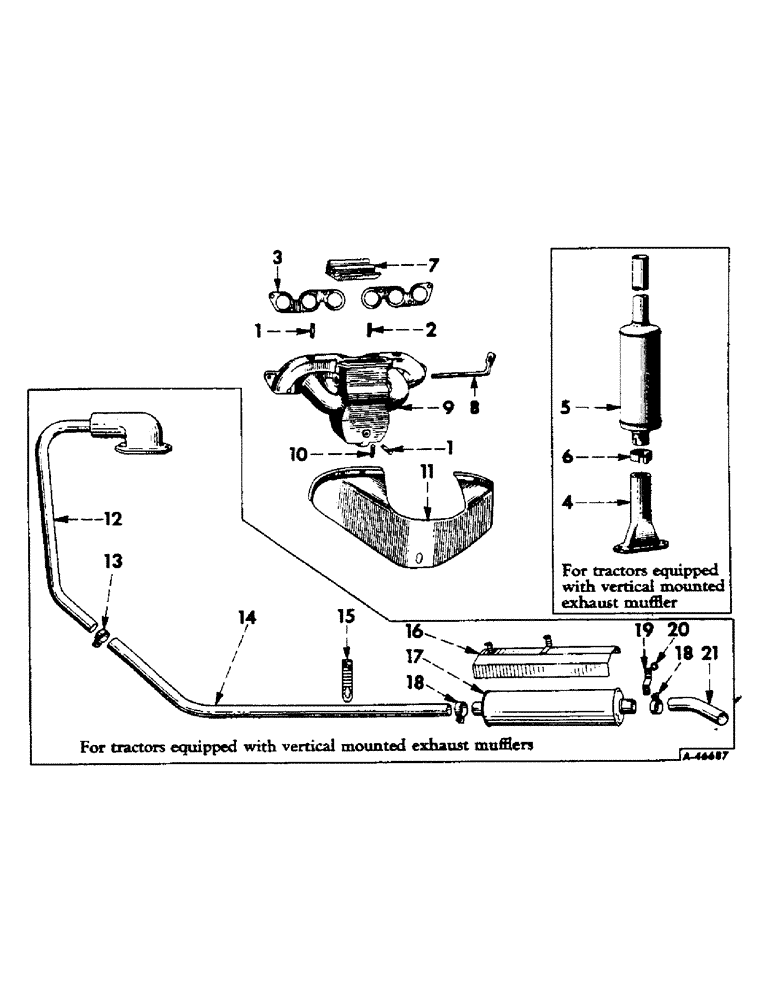

Запчасти Case IH 300 (040) - CARBURETED ENGINE, ENGINE EXHAUST SYSTEM (01) - ENGINE

1

46102D

STUD, manifold heat shield

3шт.

2

46202D

STUD

exhaust pipe

2шт.

3

45197DD

MANIFOLD GASKET

manifold

2шт.

4

363105R1

PIPE, exhaut (S/N C169 And C175 -, Serial Range: 501-3103)

1шт.

NLS

NO LONGER SERVICED

hex., 7/16-14NC

2шт.

5

350601R95

MUFFLER

exhaust (S/N C169 and C175 -, Serial Range: 501-3103)

1шт.

6

350602R1

CLAMP

exhaust muffler (S/N C169 and C175 -, Serial Range: 501-3103)

1шт.

220068

NUT, hex., 1/2-13NC

1шт.

179884

BOLT,Hex, 1/2" - 13 x 1 3/8", Gr 5, Full Thd

SCREW, cap, hex-hd., 1/2-13NC x 1-3/8"

1шт.

103323

LOCK WASHER,1/2"

WASHER, LOCK, 1/2"

1шт.

7

6714DA

VALVE, manifold heat control

1шт.

38-31014

PIN,5/32" x 7/8", Coiled

Pin, Grooved, 5/32" x 7/8", Type A

1шт.

8

48673DA

SHAFT, manifold heat control valve

1шт.

218438

NUT, jam, hex., 3/8-16NC

1шт.

102952

SCREW, set, sq-hd., cone-pt., 3/8-16NC x 1-1/4"

1шт.

9

358644R11

MANIFOLD, engine exhaust and intake, assembly, Composed Of

1шт.

358644R1

MANIFOLD (NSS)

1шт.

12215D

STUD

2шт.

46102D

STUD

3шт.

46202D

STUD

2шт.

9

358643R91

MANIFOLD, engine exhaust and intake, w/heat valve, assembly, Composed Of

1шт.

358644R11

MANIFOLD

1шт.

218438

NUT

1шт.

142494

GUIDE

Pin, Grooved, 5/32" x 7/8", Type A

1шт.

102952

SCREW

1шт.

48673DA

SHAFT

1шт.

6714DA

VALVE

1шт.

43715D

NUT

manifold to cylinder head stud

6шт.

63459D

STUD

manifold to cylinder head

6шт.

43753D

WASHER,11.51mm ID x 22.23mm OD x 6.35mm Thk

manifold to cylinder head stud (On inner studs)

4шт.

10

12215D

STUD

carburetor

2шт.

11

367136R91

SHIELD, manifold heat

1шт.

93082H

NUT

manifold heat shield stud

3шт.

95-11041

WASHER,3/8"

(13/32" ID x 3/4" OD x No. 16 ga) 3/8"

3шт.

12

367868R11

PIPE, exhaust, upper (S/N C175 3104 up)

1шт.

13

362306R1

CLAMP

exhaust tail pipe (S/N C175 3104 up)

1шт.

102635

NUT,3/8"-16, G5

1шт.

179841

BOLT,Hex, 3/8" - 16 x 1 1/4", Gr 5

cap, hex-hd., 3/8-16NC x 1-1/4"

1шт.

103321

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

1шт.

14

367870R1

PIPE, exhaust, lower (S/N C175 3104 up)

1шт.

15

365971R1

BAR

BRACKET, muffler support (S/N C175 3104 up)

1шт.

413-1024

BOLT,Hex, 5/8" - 11 x 1-1/2", Gr 5

SCREW, cap, hex-hd., 5/8-11NC x 1-1/2" (S/N C175 3104 up)

2шт.

103325

LOCK WASHER,5/8"

WASHER, LOCK, (S/N C175 3104 up) 5/8"

2шт.

16

365967R11

SHIELD

muffler, w/two brackets (S/N C175 3104 up)

1шт.

17

365966R91

MUFFLER

exhaust (S/N C175 3104 up)

1шт.

17

365966R91GV

MUFFLER

Value, Exhaust Muffler

1шт.

18

362304R1

CLAMP

exhaust pipe (S/N C175 3104 up)

2шт.

103026

NUT,3/8"-24, G5

2шт.

181371

BOLT

SCREW, cap, hex-hd., 3/8-24NF x 1-3/8"

2шт.

103321

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

2шт.

19

365973R1

SUPPORT, rear, exhaust muffler (On LH brake housing attaching screw) (S/N C175 3104 up)

1шт.

20

42274H

SPACER

rear support (S/N C175 3104 up)

1шт.

21

365972R1

PIPE

tail (S/N C175 3104 up)

1шт.
