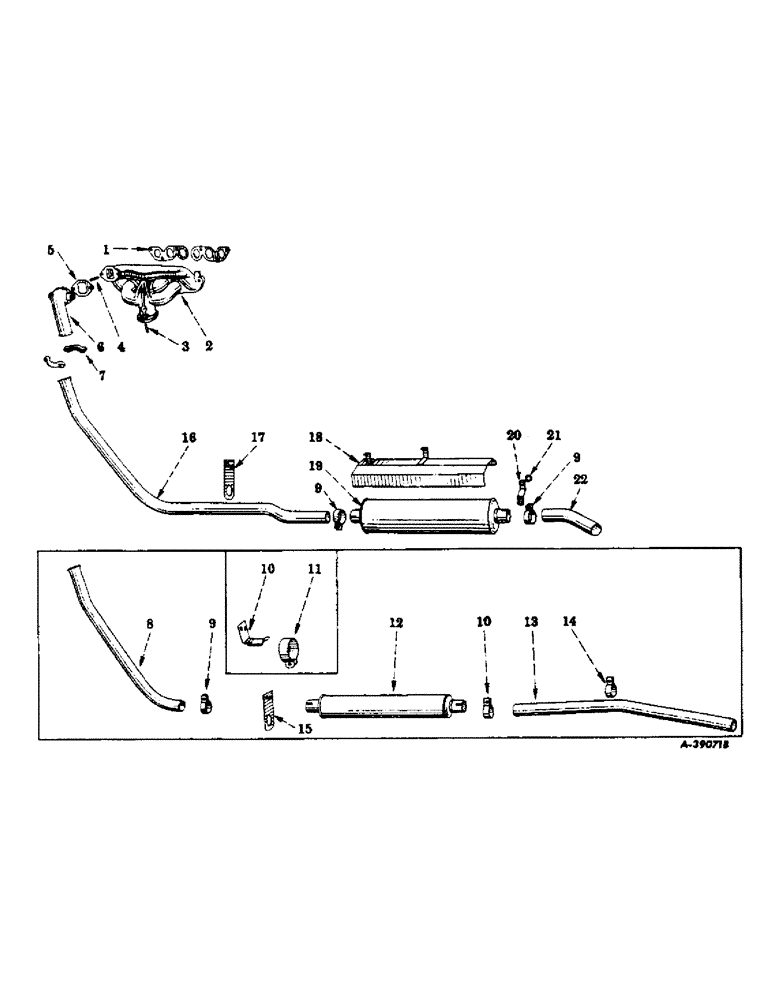

Запчасти Case IH 300 (038) - CARBURETED ENGINE, ENGINE EXHAUST SYSTEM, FOR TRACTORS EQUIPPED W/UNDERSLUNG EXHAUST MUFFLER (01) - ENGINE

1

45197DD

MANIFOLD GASKET

manifold

2шт.

2

361564R21

MANIFOLD, engine exhaust and intake, assembly (For gasoline burning engines), Composed Of

1шт.

361564R2

MANIFOLD (NSS)

1шт.

103865

PLUG

1шт.

12215D

STUD

2шт.

30981H

STUD

2шт.

2

365762R11

MANIFOLD, engine exhaust and intake, assembly (For Liquefied Petroleum Gas burning engines), Composed Of

1шт.

365762R1

MANIFOLD (NSS)

1шт.

25038HA

TUBE NUT,3/8"-24

NUT

2шт.

80020HA

TEE

1шт.

12215D

STUD

2шт.

30981H

STUD

2шт.

43715D

NUT

engine exhaust and intake manifold

6шт.

103865

PLUG, pipe, sq-hd., C.I., 1/8" (Optional with 103877)

1шт.

103877

PLUG

pipe, sq-hd., stl., 1/8" (Optional with 103865)

1шт.

63459D

STUD

manifold to cylinder head (Illustrated with "Cylinder Head")

6шт.

43753D

WASHER,11.51mm ID x 22.23mm OD x 6.35mm Thk

manifold (Used on inner studs)

4шт.

3

12215D

STUD

carburetor

2шт.

4

30981H

STUD, exhaust pipe elbow

2шт.

5

362299R1

GASKET, exhaust pipe elbow

1шт.

6

362298R1

ELBOW

exhaust pipe

1шт.

43715D

NUT

exhaust pipe elbow

2шт.

7

362300R1

CLAMP

exhaust pipe

2шт.

120368

NUT,5/16"-24, G5

2шт.

181617

BOLT,Hex, 5/16" - 24 x 1 5/8"

SCREW, cap, hex-hd., cd-pltd., 5/16-24NF x 1-5/8"

2шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

2шт.

8

362301R1

PIPE

exhaust (S/N C-169, Serial Range: 9501-62482)

1шт.

9

362304R1

CLAMP

exhaust pipe

2шт.

103026

NUT,3/8"-24, G5

2шт.

181371

BOLT

SCREW, cap, hex-hd., 3/8-24NF x 1-3/8"

2шт.

103321

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

2шт.

10

362302R1

BRACKET

muffler support (Order bracket - ref. 15)

1шт.

271558

HOOD,Hex, 5/8" - 11 x 1 1/2", Gr 5

SCREW, cap, hex-hd., 5/8-11NC x 1-1/2"

2шт.

103325

LOCK WASHER,5/8"

WASHER, LOCK, 5/8"

2шт.

11

362303R1

CLAMP

exhaust muffler support (Order bracket - ref. 15)

1шт.

103026

NUT,3/8"-24, G5

1шт.

181370

BOLT,Hex, 3/8" - 24 x 1 1/4", Gr 5

SCREW, cap, hex-hd., 3/8-24NF x 1-1/4"

1шт.

103321

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

1шт.

12

362483R91

MUFFLER

exhaust (S/N C-169, Serial Range: 9501-62482)

1шт.

13

362305R2

PIPE, EXHAUST SYSTEM

PIPE, exhaust tail (S/N C-169, Serial Range: 9501-62482)

1шт.

14

362306R1

CLAMP

exhaust tail pipe (S/N C-169, Serial Range: 9501-62482)

1шт.

103026

NUT,3/8"-24, G5

1шт.

181370

BOLT,Hex, 3/8" - 24 x 1 1/4", Gr 5

SCREW, cap, hex-hd., 3/8-24NF x 1-1/4"

1шт.

103321

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

1шт.

15

364647R1

BAR

BRACKET, exhaust muffler support (Will work for 362303R1 and 362304R1) (S/N C-169, Serial Range: 9501-62482)

1шт.

413-1024

BOLT,Hex, 5/8" - 11 x 1-1/2", Gr 5

SCREW, cap, hex-hd., 5/8-11NC x 1-1/2"

2шт.

103325

LOCK WASHER,5/8"

WASHER, LOCK, 5/8"

2шт.

16

365970R1

TUBE

PIPE, exhaust (See Note) (S/N C-169 62483 up)

1шт.

16

365970R1

TUBE

PIPE, exhaust (See Note) (S/N C-175 501 up)

1шт.

17

365971R1

BAR

BRACKET, muffler support (See Note) (C-169 62483 up)

1шт.

17

365971R1

BAR

BRACKET, muffler support (See Note) (C-175 501 up)

1шт.

271558

HOOD,Hex, 5/8" - 11 x 1 1/2", Gr 5

SCREW, cap, hex-hd., 5/8-11NC x 1-1/2"

2шт.

103325

LOCK WASHER,5/8"

WASHER, LOCK, 5/8"

2шт.

18

365967R11

SHIELD

muffler w/two brackets (See Note) (S/N C-169 62483 up)

1шт.

18

365967R11

SHIELD

muffler w/two brackets (See Note) (S/N C-175 501 up)

1шт.

19

365966R91

MUFFLER

exhaust (See Note) (S/N C-169 62483 up)

1шт.

19

365966R91

MUFFLER

exhaust (See Note) (S/N C-175 501 up)

1шт.

19

365966R91GV

MUFFLER

Value, Exhaust Muffler

1шт.

20

365973R1

SUPPORT, rear, exhaust muffler (On LH brake housing attaching screw) (See Note) (S/N C-169 62483 up)

1шт.

20

365973R1

SUPPORT, rear, exhaust muffler (On LH brake housing attaching screw) (See Note) (S/N C-175 501 up)

1шт.

21

42274H

SPACER

rear support (See Note) (S/N C-169 62483 up)

1шт.

21

42274H

SPACER

rear support (See Note) (S/N C-175 501 up)

1шт.

22

365972R1

PIPE

tail (See Note) (S/N C-169 62483 up)

1шт.

22

365972R1

PIPE

tail (See Note) (S/N C-175 501 up)

1шт.
