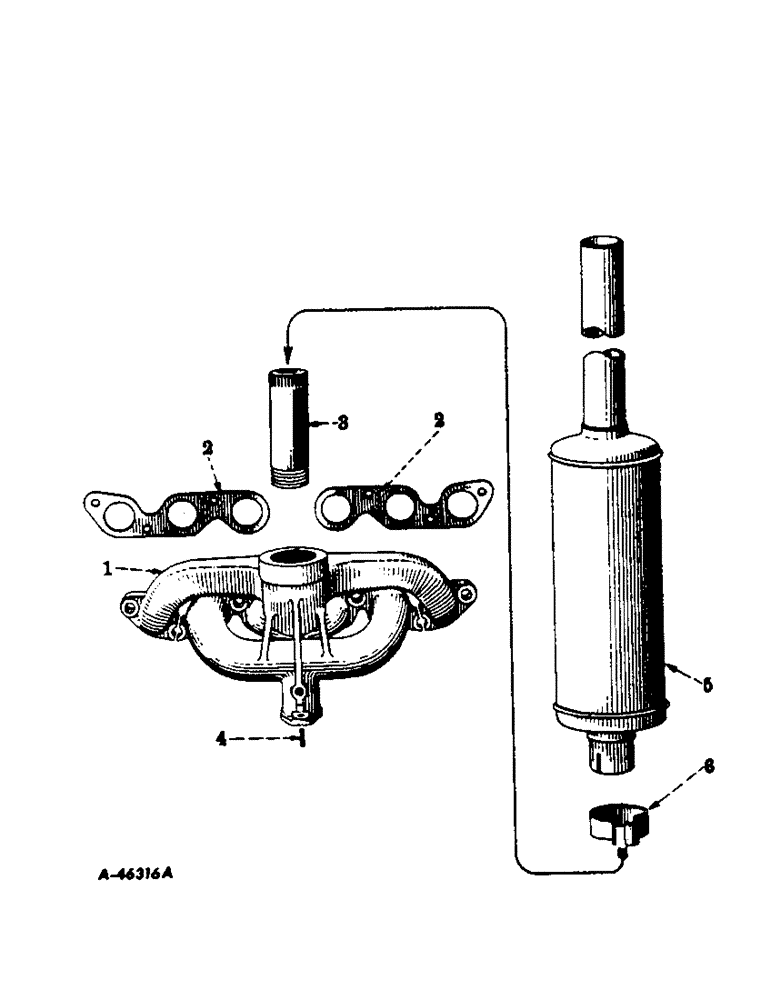

Запчасти Case IH 300 (037) - CARBURETED ENGINE, ENGINE EXHAUST SYSTEM (01) - ENGINE

1

362536R21

MANIFOLD

engine exhaust and intake w/plug, 103865 and two studs, 12215D

1шт.

43715D

NUT

manifold to cylinder head stud (See Note B)

6шт.

103865

PLUG, pipe, sq-hd., C.I., 1/8" (Optional with 103877) (See Note B)

1шт.

103877

PLUG

pipe, sq-hd., stl., 1/8" (Optional with 103865) (See Note B)

1шт.

63459D

STUD

manifold to cylinder head (See Note B)

6шт.

43753D

WASHER,11.51mm ID x 22.23mm OD x 6.35mm Thk

manifold stud (Used on inner studs) (See Note B)

4шт.

2

45197DD

MANIFOLD GASKET

manifold

2шт.

3

361384R1

PIPE

exhaust

1шт.

4

12215D

STUD

carburetor (See Note B)

2шт.

5

350601R95

MUFFLER

exhaust

1шт.

6

350602R1

CLAMP

exhaust muffler

1шт.

220068

NUT, hex., 1/2-13NC

1шт.

179884

BOLT,Hex, 1/2" - 13 x 1 3/8", Gr 5, Full Thd

SCREW, cap, hex-hd., 1/2-13NC x 1-3/8"

1шт.

103323

LOCK WASHER,1/2"

WASHER, LOCK, 1/2"

1шт.

187151

SCREW, cap, hex-hd., 7/16-14UNC x 3-3/8" (Used on LH brake housing)

1шт.

367095R91

PARTS ACCESSORY, manifold heater block (Used on 169 gasoline burning engine with 362536R2 manifold)

1шт.
