Запчасти Case IH 300 (034) - CARBURETED ENGINE, FAN, THERMOSTAT AND WATER PUMP (01) - ENGINE

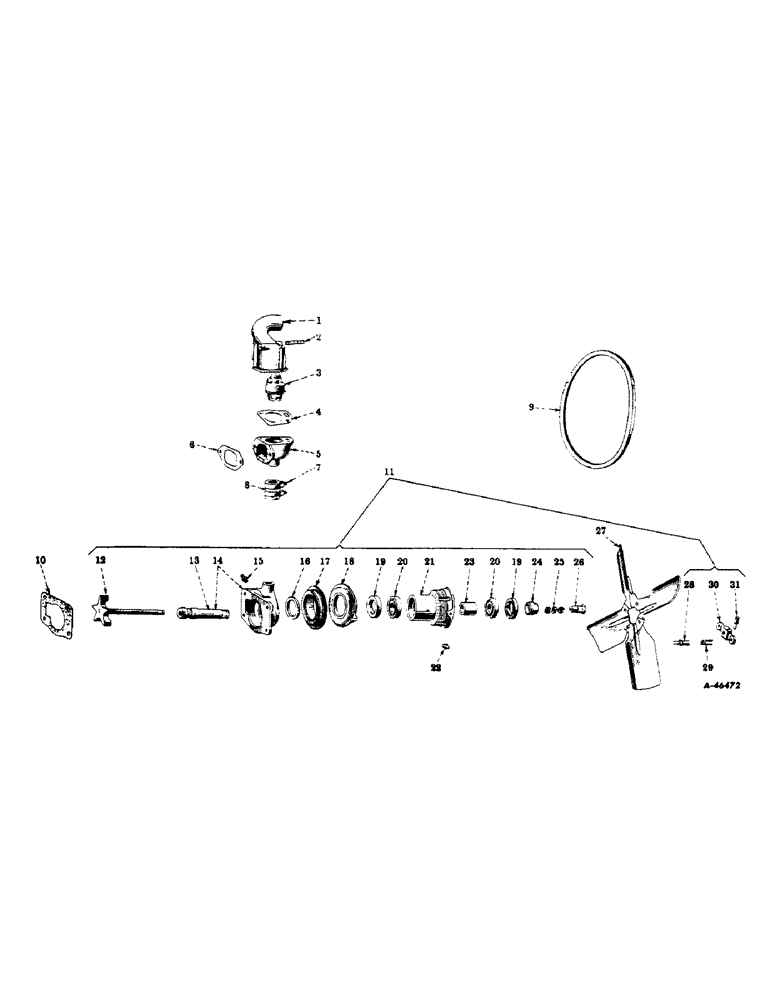

Схема запчастей Case IH 300 - (034) - CARBURETED ENGINE, FAN, THERMOSTAT AND WATER PUMP (01) - ENGINE
16
19
12
9
7
4
2
31
23
25
10
17
8
20
26
6
30
3
24
15
20
27
29
5
28
14
13
1
28
16
21
11
18

Артикул

Название

Примечание

Количество

1

6675DD

HOUSING, thermostat (For gasoline, distillate or kerosene burning engines)

1шт.

1

364275R1

HOUSING, thermostat (For Liquefied Petroleum Gas burning engines)

1шт.

179397

SCREW, cap, hex-hd., 3/8-16NC x 3-3/8"

2шт.

103321

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

2шт.

2

51538D

STUD, radiator brace

1шт.

3

33814DB

THERMOSTAT

(165 degrees - 190 degrees) (Will work for 37634D)

1шт.

4

45102D

GASKET

thermostat housing

1шт.

5

6233D

ELBOW, water outlet

1шт.

NLS

NO LONGER SERVICED

2шт.

103321

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

2шт.

6

45103D

GASKET

water outlet elbow

1шт.

7

357870R91

CLAMP

by-pass hose, w/clip and screw (Range 3/4 to 4" O.D. hose)

2шт.

8

45607D

HOSE, by-pass (1-1/4" O.D. x 1-3/4" long, 3 ply)

1шт.

9

48032DA

V-BELT,0.75" W

Fan (Regular duty type) 0.75" W

1шт.

9

368085R1

BELT

fan (Heavy duty cog type)

1шт.

10

45091D

GASKET

water pump body

1шт.

11

364852R91

PUMP, water, assembly, Composed Of

1шт.

ST225B

BALL BEARING,25 mm ID x 52 mm OD x 13 mm

BEARING

2шт.

48026DC

SLEEVE

BODY

1шт.

52995D

DRIVE

R

1шт.

109461

LUBE NIPPLE,1/8"-27 x .66 lg

NIPPLE, LUBE, 1/8"-27 x .66 lg

1шт.

362751R91

HUB

1шт.

9165DX

IMPELLER

1шт.

25-114

NUT,1/4"-28, G5

1шт.

48028DB

NUT

1шт.

48030DA

NUT

1шт.

48024D

PACKING

(NSS)

1шт.

42739DA

STUD

PIN

1шт.

179848

BOLT,Hex, 3/8" - 16 x 2 1/4", Gr 5

2шт.

48027D

SPACER

1шт.

G3792

SPRING

2шт.

48029DA

STUD

2шт.

48025D

WASHER

1шт.

103320

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

2шт.

103321

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

2шт.

114604

LOCK WASHER,Ext Tooth, 1/4"

WASHER

1шт.

11

362966R92

PUMP, water, 364852R91 w/fan, 362747R92, two screw, 179814 and two washer, 103320

1шт.

12

9165DX

IMPELLER

water pump, w/shaft and thrust washer

1шт.

13

48031DCX

FITTING

SLEEVE, water pump, w/two bushings

1шт.

14

48026DC

SLEEVE

BODY, water pump, w/sleeve, 48031DCX

1шт.

179839

BOLT,Hex, 3/8" - 16 x 1", Gr 5

2шт.

179848

BOLT,Hex, 3/8" - 16 x 2 1/4", Gr 5

2шт.

103321

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

4шт.

15

109461

LUBE NIPPLE,1/8"-27 x .66 lg

NIPPLE, LUBE, (In water pump body) (Optional with 138322H) 1/8"-27 x .66 lg

1шт.

15

80710

LUBE NIPPLE,1/8” – 27 Dryseal PTF

NIPPLE, LUBE, (In water pump body) (Optional with 109461) 1/8"-27 x .66 lg

1шт.

16

48025D

WASHER

felt, water pump

1шт.

17

362749R1

FLANGE, fan and generator pulley

1шт.

142489

PIN, groove, 1/8 x 1-1/4"

1шт.

18

362750R11

PULLEY

FLANGE, fan and water pump pulley (Adjustable, w/nut, 114502 and screw, 102834)

1шт.

114502

JAM NUT,Jam, 5/16"-18, G5

1шт.

102834

TUBE

SCREW, set, hdls., slotted-dog-pt., 5/16-18NC x 1-1/2"

1шт.

19

51492D

SEAL

OIL SEAL, water pump

2шт.

20

ST225B

BALL BEARING,25 mm ID x 52 mm OD x 13 mm

BEARING, ball (Water pump sleeve)

2шт.

21

6599DA

HUB, fan and generator pulley

1шт.

21

362751R91

HUB, fan and generator pulley, assembly, Composed Of

1шт.

109461

LUBE NIPPLE,1/8"-27 x .66 lg

NIPPLE, LUBE, 1/8"-27 x .66 lg

1шт.

362749R1

FLANGE

1шт.

362750R11

PULLEY

FLANGE

1шт.

6599DA

HUB

1шт.

51492D

SEAL

OIL SEAL

2шт.

142489

PIN

1шт.

22

109461

LUBE NIPPLE,1/8"-27 x .66 lg

NIPPLE, LUBE, (In fan and generator pulley hub) (Optional with 138322H) 1/8"-27 x .66 lg

1шт.

22

80710

LUBE NIPPLE,1/8” – 27 Dryseal PTF

NIPPLE, LUBE, (In fan and generator pulley hub) (Optional with 109461) 1/8"-27 x .66 lg

1шт.

23

48027D

SPACER, water pump bearing

1шт.

24

48028DB

NUT

clamp, water pump bearing

1шт.

25

45925DA

SEAL

PACKING, water pump (Carton of twenty-five pieces packing)

1шт.

26

48030DA

NUT

water pump packing

1шт.

27

362747R92

FAN

1шт.

13-510

BOLT,Hex, 5/16" - 18 x 5/8", Gr 5, Full Thd

2шт.

103320

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

2шт.

28

48029DA

STUD

driving, water pump

2шт.

103320

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

2шт.

29

G3792

SPRING

STUD, driving, water pump

2шт.

30

52995D

DRIVE

R, water pump

1шт.

31

42739DA

STUD

PIN, water pump drive

1шт.

25-114

NUT,1/4"-28, G5

hex., light, 1/4-28NF

1шт.

114604

LOCK WASHER,Ext Tooth, 1/4"

WASHER, lock, external-tooth, 1/4"

1шт.

355139R91

KIT

PACKAGE, service, water pump, Consists Of

1шт.

ST225B

BALL BEARING,25 mm ID x 52 mm OD x 13 mm

BEARING

2шт.

45091D

GASKET

1шт.

9165DX

IMPELLER

1шт.

48028DB

NUT

1шт.

48030DA

NUT

1шт.

51492D

SEAL

OIL SEAL

2шт.

48024D

PACKING

(NSS)

1шт.

42739DA

STUD

PIN

1шт.

48031DCX

FITTING

SLEEVE

1шт.

G3792

SPRING

2шт.

48029DA

STUD

2шт.

48025D

WASHER

1шт.

Выбрано товаров: 90
