Запчасти Case IH 300 (031) - CARBURETED ENGINE, CRANKCASE OIL PAN AND LUBRICATING OIL PUMP (01) - ENGINE

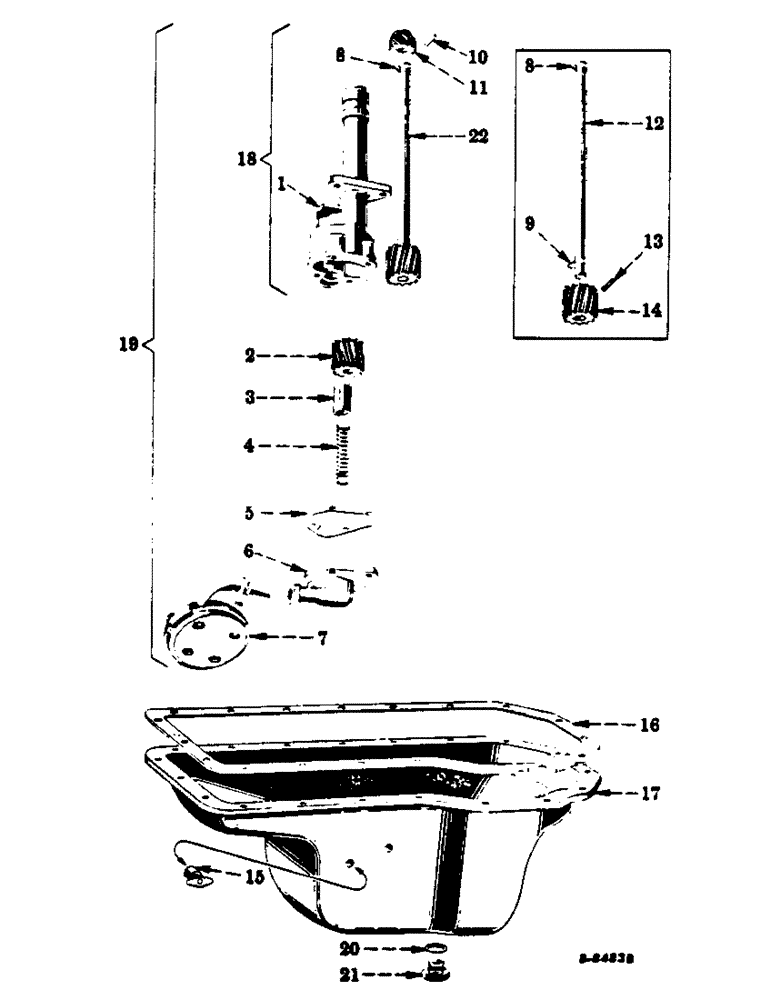

Схема запчастей Case IH 300 - (031) - CARBURETED ENGINE, CRANKCASE OIL PAN AND LUBRICATING OIL PUMP (01) - ENGINE
8
17
7
18
14
19
9
12
4
13
11
21
15
1
3
16
22
10
8
20
2
5
6

Артикул

Название

Примечание

Количество

1

6291DX

BODY, oil pump, w/plug, 103866 and shaft

1шт.

9617020

PLUG,1/4" - 18 x 0.48"

pipe, sq-hd., C.I. 1/4" (Optional with 103878)

1шт.

103878

PLUG

pipe, sq-hd., stl., 1/4" (Optional with 103866)

1шт.

179860

BOLT,Hex, 7/16" - 14 x 1 1/4", Gr 5

SCREW, cap, hex-hd., 7/16-14NC x 1-1/4"

2шт.

103322

LOCK WASHER,7/16"

WASHER, LOCK, 7/16"

2шт.

2

45053D

GEAR

ilder, oil pump (12 teeth)

1шт.

3

45285DA

VALVE

oil regulating

1шт.

4

62672D

SPRING

oil regulating valve

1шт.

5

45704D

GASKET

oil pump cover

1шт.

6

6290DA

COVER, oil pump

1шт.

NLS

NO LONGER SERVICED

4шт.

103321

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

4шт.

7

56108D

FILTER SCREEN

SCREEN, oil pump

1шт.

103386

COTTER PIN,1/8" x 1 1/4"

Pin, Split (Cotter), 1/8" x 1 1/4"

1шт.

8

106750

KEY

Woodruff, No. 6 (Oil pump drive pinion)

1шт.

9

106750

KEY

Woodruff, No. 6 (Oil pump body gear) (Used with gear - see ref. 14)

1шт.

10

141881

PIN,1/8" x 1 3/16"

straight chamfered, stl., 3/16 x 1-3/16" (Will work for 1858T)

1шт.

11

45052D

GEAR

PINION, drive oil pump (11 teeth)

1шт.

12

359714R1

SHAFT

oil pump drive (No longer serviced separate - order gear and shaft - see ref. 22)

1шт.

13

45051D

PIN, oil pump body gear (Used with gear - see ref. 14)

1шт.

14

45050D

GEAR

oil pump body (12 teeth) (No longer serviced separately - order gear and shaft - see ref. 22)

1шт.

15

1998TA

VALVE

oil gage, w/handle and stem (For distillate or kerosene burning engines)

1шт.

16

45267DA

GASKET

crankcase oil pan

1шт.

17

363510R91

PAN, crankcase oil assembly, Composed Of

1шт.

3405H

GASKET

1шт.

45723DCX

PAN

1шт.

359875R1

PLUG

1шт.

103867

PLUG

2шт.

425-115

NUT,5/16"-24, G5

hex., light, 5/16-24NF

1шт.

103867

PLUG

pipe, sq-hd., C.I. 3/8" (Used to plug oil gage holes) (Optional with 103879)

2шт.

103879

PLUG, pipe, sq-hd., stl., 3/8" (Used to plug oil gage holes) (Optional with 103867)

2шт.

187824

SCREW, machine, hex-hd., 5/16-18NC x 7/8", w/external - tooth lock washer (Optional with 443609)

16шт.

423348

SCREW, machine, hex-hd., 5/16-18NC x 1-1/8", w/external - tooth lock washer (Optional with 443519)

2шт.

443519

PLUG

SCREW, machine, hex-hd., 5/16-18NC x 1-1/8", w/spring tooth lock washer (Optional with 423348)

2шт.

443609

SCREW, machine, hex-hd., 5/16-18NC x 7/8", w/spring tooth lock washer (Optional with 187824)

16шт.

50809DA

STUD, crankcase oil pan (Illustrated with "Rear Engine Support")

1шт.

103320

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

1шт.

18

45703DA

BODY, oil pump, assembly, Composed Of

1шт.

6291DX

BODY

1шт.

364941R91

SHAFT

GEAR AND SHAFT

1шт.

106750

KEY

1шт.

141881

PIN,1/8" x 1 3/16"

1шт.

45052D

GEAR

PINION

1шт.

19

45716DA

PUMP, lubricating oil, assembly, Composed Of

1шт.

45703DA

BODY

1шт.

6290DA

COVER

1шт.

45704D

GASKET

1шт.

45053D

GEAR

1шт.

103386

COTTER PIN,1/8" x 1 1/4"

Pin, Split (Cotter), 1/8" x 1 1/4"

1шт.

56108D

FILTER SCREEN

SCREEN

1шт.

179839

BOLT,Hex, 3/8" - 16 x 1", Gr 5

4шт.

62672D

SPRING

1шт.

45285DA

VALVE

1шт.

103321

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

4шт.

20

3405H

GASKET

crankcase oil pan drain plug

1шт.

21

359875R1

PLUG

drain, crankcase oil pan

1шт.

22

364941R91

SHAFT

GEAR, (12 teeth) and shaft, oil pump body (Will work for gear, 45050D and shaft, 359714R1)

1шт.

Выбрано товаров: 57
