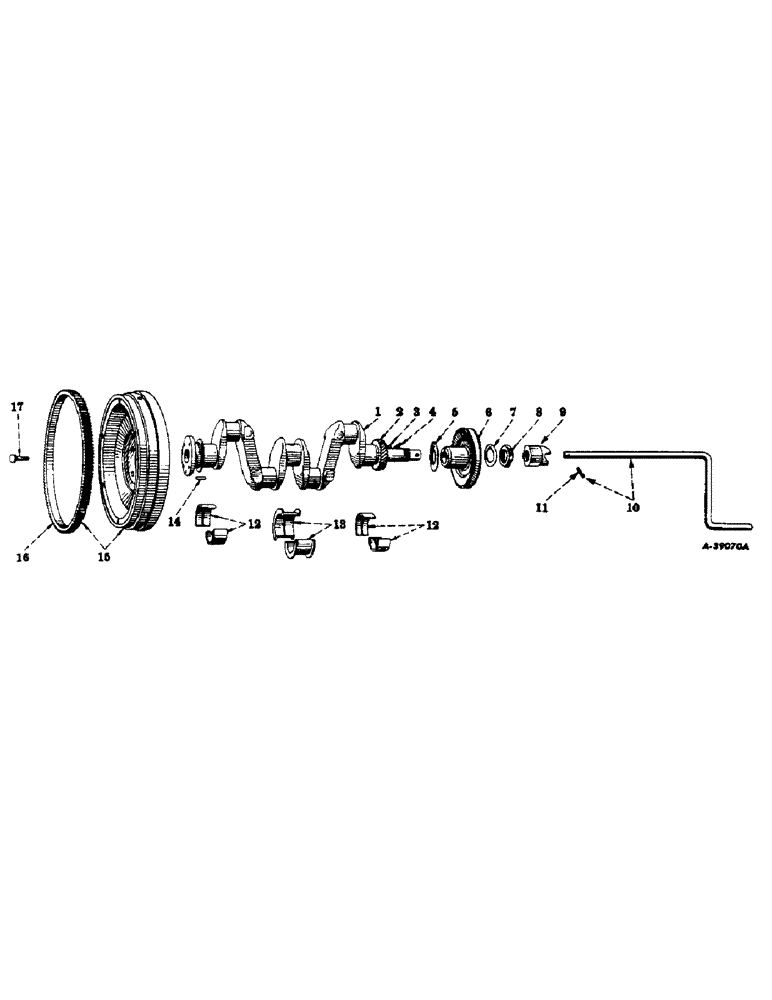

Запчасти Case IH 300 (029) - CARBURETED ENGINE, CRANKSHAFT AND RELATED PARTS (01) - ENGINE

1

353745R95

CRANKSHAFT

w/bearings, assembly (Standard), Composed Of

1шт.

357990R11

BEARING ASSY

BEARING

4шт.

357994R11

BEARING LINER

BEARING

2шт.

357998R11

BEARING ASSY

BEARING

1шт.

43734DG

CRANKSHAFT

(NSS)

1шт.

24402D

NUT

1шт.

46923D

PIN

1шт.

1

352748R95

CRANKSHAFT, w/bearing, assembly (.030" undersize), Composed Of

1шт.

357991R11

CRANKSHAFT BEARING

BEARING

4шт.

357995R11

BEARING

2шт.

357999R11

BEARING

1шт.

43735DH

CRANKSHAFT (NSS)

1шт.

24402D

NUT

1шт.

46923D

PIN

1шт.

2

43706D

GEAR

PINION, crankshaft (24 teeth)

1шт.

3

126-121

WOODRUFF KEY,#A, 1/4" x 7/8", HT

KEY, Woodruff, aly-stl., 1/4 x 7/8" type "A" (Crankshaft pinion)

1шт.

4

126-121

WOODRUFF KEY,#A, 1/4" x 7/8", HT

KEY, Woodruff, aly-stl., 1/4 x 7/8" type "A" (Fan drive pulley) (Two used on tractors equipped with front power take-off pulley)

1шт.

5

43705DA

FLINGER, oil, crankshaft, front

1шт.

6

362354R1

PULLEY, fan drive (Not used on tractors equipped with front power take-off pulley)

1шт.

6

364528R1

PULLEY, fan drive (Not illustrated) (For tractors equipped with front power take-off)

1шт.

7

24403D

WASHER

LOCK, crankshaft pinion nut

1шт.

8

24402D

NUT

crankshaft pinion

1шт.

9

361561R1

NUT, starting ratchet

1шт.

616254R1

LOCK PIN,3/8" x 1 5/8", Slotted

Pin, 3/8" x 1 5/8", Slotted

1шт.

10

361924R11

CRANK, starting, w/pin, 576483R1 (For tractors equipped with starting crank) (Special)

1шт.

11

576483R1

LOCK PIN,5/16" x 1 1/2", Slotted

Pin, , for tractors equipped with starting crank 5/16" x 1 1/2", Slotted

1шт.

12

357994R11

BEARING LINER

BEARING, crankshaft, front and rear (2 halves) (Standard)

2шт.

12

357996R11

BEARING ASSY

BEARING, crankshaft, front and rear (2 halves) (.002" undersize)

2шт.

12

360201R11

BEARING, crankshaft, front and rear (2 halves) (.003" undersize)

2шт.

12

357995R11

BEARING, crankshaft, front and rear (2 halves) (.030" undersize)

2шт.

12

357997R11

BEARING, crankshaft, front and rear (2 halves) (.032" undersize)

2шт.

13

357998R11

BEARING ASSY

BEARING, crankshaft, center (2 halves) (Standard)

1шт.

13

358000R11

BEARING ASSY

BEARING, crankshaft, center (2 halves) (.002" undersize)

1шт.

13

360202R11

BEARING, crankshaft, center (2 halves) (.003" undersize)

1шт.

13

357999R11

BEARING, crankshaft, center (2 halves) (.030" undersize)

1шт.

13

358001R11

BEARING, crankshaft, center (2 halves) (.032" undersize)

1шт.

13

367881R91

KIT

BEARING SET, crankshaft (Consists of two bearings, 357994R11 and 1 bearing 357998R11) (Standard)

1шт.

14

46923D

PIN

dowel, flywheel

1шт.

15

360867R11

FLYWHEEL, w/gear, 45638DB

1шт.

16

45638DB

GEAR

ring, flywheel (104 teeth)

1шт.

17

360868R1

BOLT, flywheel to crankshaft (Place type)

4шт.

364530R91

PARTS ACCESSORY, front power take-off (Pulley, 364528R1, w/key, 124551)

1шт.
